Consumer Circuits / Color Signal Converters / ADV7391BCPZ-REEL
Datasheets
ADV7391BCPZ-REEL by:

Low Power, Chip Scale 10-Bit SD/HD Video Encoder

Part Details for ADV7391BCPZ-REEL by Analog Devices Inc

Results Overview of ADV7391BCPZ-REEL by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Available Datasheets

Part # Manufacturer Description Datasheet
LMX2325TMX-G Rochester Electronics LLC LMX2325 - RoHS - T/R, PLL Freq Synthesizer
HSCHD02BV1001R Amphenol Communications Solutions HSC Vertical plug,Tape and Reel,Blue housing
HSCHD02AR0001R Amphenol Communications Solutions HSC Right Angle plug,Tape and Reel,Black housing

Price & Stock for ADV7391BCPZ-REEL

Part # Distributor Description Stock Price Buy
DISTI # 60AK6116
Newark Video Encoder, 10Bit, Lfcsp-Ep, Ic Type:-, Supply Voltage Min:1.71V, Supply Voltage Max:1.89V, Ic Case/Package:Lfcsp-Ep, No. Of Pins:32Pins, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Qualification:- Rohs Compliant: Yes |Analog Devices ADV7391BCPZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $13.5200
  • 10 $12.4300
  • 25 $11.4700
  • 50 $10.5600
  • 100 $9.6600
  • 250 $8.9900
  • 500 $8.4500
  • 1,000 $8.0300
$8.0300 / $13.5200 Buy Now
Rochester Electronics Low Power, Chip Scale 10-Bit SD/HD Video Encoder RoHS: Compliant Status: Active Min Qty: 1 963
  • 1 $8.1800
  • 25 $8.0200
  • 100 $7.6900
  • 500 $7.3600
  • 1,000 $6.9500
$6.9500 / $8.1800 Buy Now
Vyrian General Purpose ICs 13871
RFQ
Win Source Electronics IC VIDEO ENCODER SD/HD 32-LFCSP 5610
  • 6 $9.6875
  • 12 $9.0625
  • 18 $8.7500
  • 25 $8.1250
  • 32 $7.8125
  • 40 $7.5000
$7.5000 / $9.6875 Buy Now

Part Details for ADV7391BCPZ-REEL

ADV7391BCPZ-REEL CAD Models

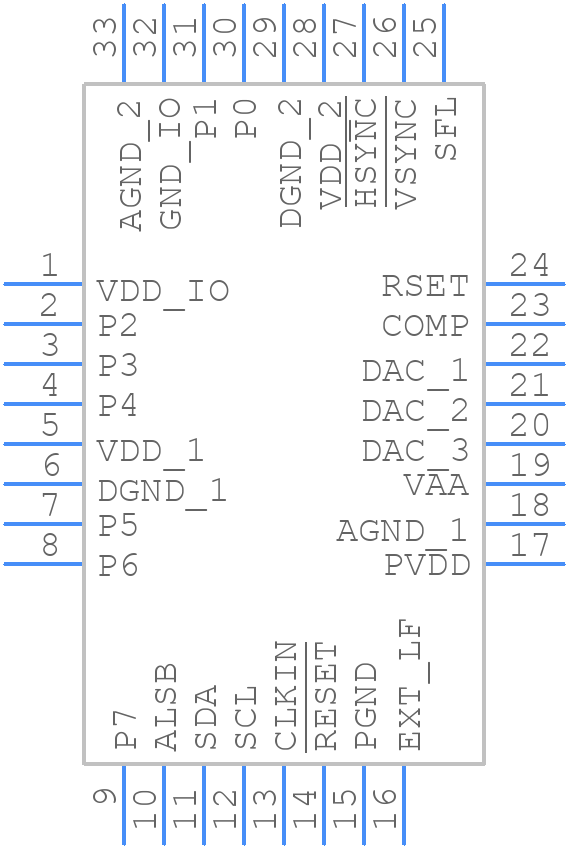

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADV7391BCPZ-REEL Part Data Attributes

Parametric Data
ADV7391BCPZ-REEL Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADV7391BCPZ-REEL Analog Devices Inc Low Power, Chip Scale 10-Bit SD/HD Video Encoder
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code QFN
Package Description LFSCP-32
Pin Count 32
Manufacturer Package Code CP-32-2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Consumer IC Type COLOR SIGNAL ENCODER
Input Type RGB; R-Y; B-Y; Y
JESD-30 Code S-XQCC-N32
JESD-609 Code e3
Length 5 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 32
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC32,.2SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1 mm
Supply Voltage-Max (Vsup) 1.89 V
Supply Voltage-Min (Vsup) 1.71 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Video Standard PAL; NTSC
Width 5 mm

Alternate Parts for ADV7391BCPZ-REEL

This table gives cross-reference parts and alternative options found for ADV7391BCPZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADV7391BCPZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ADV7391BCPZ Analog Devices Inc $7.9967 Low Power, Chip Scale 10-Bit SD/HD Video Encoder ADV7391BCPZ-REEL vs ADV7391BCPZ

ADV7391BCPZ-REEL Related Parts

ADV7391BCPZ-REEL Frequently Asked Questions (FAQ)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.

  • The ADV7391 can be configured for different video standards (e.g. NTSC, PAL, SECAM) by setting the appropriate registers. Refer to the datasheet for the specific register settings for each standard.

  • The ADV7391 supports clock frequencies up to 108 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.

  • To ensure a stable clock output, make sure to decouple the clock output pin with a suitable capacitor and resistor, and ensure that the clock output is not loaded excessively.

  • The recommended layout and routing for the ADV7391 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing signal traces near the clock output.
