Microcontrollers and Processors / Microcontrollers / ATTINY402-SSNR
Datasheets
ATTINY402-SSNR by: Microchip Technology Inc

RISC Microcontroller

Part Details for ATTINY402-SSNR by Microchip Technology Inc

Results Overview of ATTINY402-SSNR by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities Healthcare Telecommunications

ATTINY402-SSNR Information

ATTINY402-SSNR by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATTINY402-SSNR

Part # Distributor Description Stock Price Buy
DISTI # 41AH8359
Newark Mcu, 8Bit, 20Mhz, Soic-8, Product Range:Avr Attiny Family Attiny402 Series Microcontrollers, Device Core:Avr, Operating Frequency Max:20Mhz, Program Memory Size:4Kb, No. Of Pins:8Pins, Ic Case/Package:Soic, No. Of I/O S:6I/O S Rohs Compliant: Yes |Microchip ATTINY402-SSNR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 5816
  • 1 $0.1920
  • 25 $0.1920
  • 50 $0.1920
$0.1920 Buy Now
DISTI # 51AC0121
Newark 20Mhz, 4Kb, Soic8, Ind 105C, Green, T&r 8 Soic 3.90Mm(.150In) T/R Rohs Compliant: Yes |Microchip ATTINY402-SSNR RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 4,000 $0.4430
$0.4430 Buy Now
DISTI # 41AH8359
Avnet Americas MCU 8-Bit AVR RISC 4KB Flash 8-Pin SOIC T/R - Product that comes on tape, but is not reeled (Alt: 41AH8359) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Container: Ammo Pack 5816 Partner Stock
  • 1 $0.5200
  • 25 $0.4890
  • 50 $0.4680
$0.4680 / $0.5200 Buy Now
DISTI # ATTINY402-SSNR
Avnet Americas MCU 8-Bit AVR RISC 4KB Flash 8-Pin SOIC T/R - Tape and Reel (Alt: ATTINY402-SSNR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.5692
  • 8,000 $0.5441
  • 16,000 $0.5248
  • 24,000 $0.5034
  • 32,000 $0.4933
$0.4933 / $0.5692 Buy Now
DISTI # ATTINY402-SSNR
Microchip Technology Inc 4kB, 0-series, SOIC8, 105C, Green, T&R, SOIC, Projected EOL: 2044-07-13 COO: Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 1 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $0.5000
  • 25 $0.4700
  • 100 $0.4300
  • 1,000 $0.3900
  • 5,000 $0.3700
$0.3700 / $0.5000 Buy Now
Bristol Electronics   3
RFQ
NAC 20MHz, 4KB, SOIC8, Ind 105C, Green, T&R - Package: 8 SOIC 3.90mm(.150in) T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 0
  • 1 $0.5700
  • 100 $0.5100
  • 500 $0.4700
  • 1,000 $0.4600
$0.4600 / $0.5700 Buy Now
DISTI # ATTINY402-SSNR
Avnet Silica MCU 8Bit AVR RISC 4KB Flash 8Pin SOIC TR (Alt: ATTINY402-SSNR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now
DISTI # ATTINY402-SSNR
EBV Elektronik MCU 8Bit AVR RISC 4KB Flash 8Pin SOIC TR (Alt: ATTINY402-SSNR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks, 0 Days EBV - 4000
Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 4000 4000
  • 4,000 $0.8950
$0.8950 Buy Now
Vyrian Peripheral ICs 33706
RFQ
Win Source Electronics IC MCU 8BIT 4KB FLASH 8SOIC / AVR series Microcontroller IC 8-Bit 20MHz 4KB (4K x 8) FLASH 8-SOIC 49593
  • 45 $1.1781
  • 105 $0.9667
  • 165 $0.9365
  • 225 $0.9063
  • 290 $0.8761
  • 385 $0.7855
$0.7855 / $1.1781 Buy Now

Part Details for ATTINY402-SSNR

ATTINY402-SSNR CAD Models

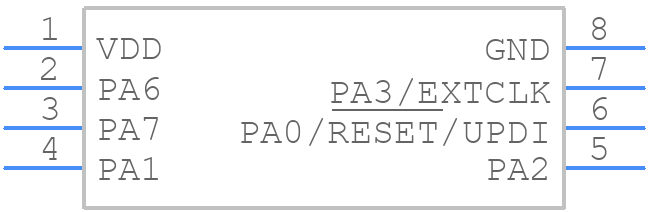

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATTINY402-SSNR Part Data Attributes

Parametric Data
ATTINY402-SSNR Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATTINY402-SSNR Microchip Technology Inc RISC Microcontroller
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 1 Week
Date Of Intro 2018-03-19
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES 1.8 V MINIMUM SUPPLY AT 5 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family AVR RISC
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Low Power Mode YES
Number of External Interrupts 6
Number of I/O Lines 8
Number of Serial I/Os 1
Number of Terminals 8
Number of Timers 2
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.23
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
RAM (bytes) 256
RAM (words) 256
ROM (words) 4096
ROM Programmability FLASH
Seated Height-Max 1.75 mm
Speed 20 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 3.9 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for ATTINY402-SSNR

This table gives cross-reference parts and alternative options found for ATTINY402-SSNR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATTINY402-SSNR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ATTINY45-20SHR Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PDSO8, 0.208 INCH, GREEN, EIAJ, PLASTIC, SOIC-8 ATTINY402-SSNR vs ATTINY45-20SHR
ATTINY45-20XU Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 20MHz, CMOS, PDSO8, 4.40 MM, GREEN, PLASTIC, MO-153AC, TSSOP-8 ATTINY402-SSNR vs ATTINY45-20XU
ATTINY45-20MUR Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 20MHz, CMOS, PQCC20, 4 X 4 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, GREEN, MO-220WGGD-5, MLF-20 ATTINY402-SSNR vs ATTINY45-20MUR
ATTINY45-20MI Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, 4 X 4 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, MO-220WGGD5, MLF-20 ATTINY402-SSNR vs ATTINY45-20MI
ATTINY45-20MU Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 20MHz, CMOS, PQCC20, 4 X 4 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, GREEN, MO-220WGGD-5, MLF-20 ATTINY402-SSNR vs ATTINY45-20MU
ATTINY45-20XUR Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 20MHz, CMOS, PDSO8, 4.40 MM, GREEN, PLASTIC, MO-153AC, TSSOP-8 ATTINY402-SSNR vs ATTINY45-20XUR
ATTINY45-20SUR Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 20MHz, CMOS, PDSO8, 0.208 INCH, GREEN, EIAJ, PLASTIC, SOIC-8 ATTINY402-SSNR vs ATTINY45-20SUR
ATTINY45-20SI Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PDSO8, 0.209 INCH, EIAJ, PLASTIC, SOIC-8 ATTINY402-SSNR vs ATTINY45-20SI
ATTINY45-20SU Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 20MHz, CMOS, PDSO8, 0.208 INCH, GREEN, EIAJ, PLASTIC, SOIC-8 ATTINY402-SSNR vs ATTINY45-20SU
ATTINY45-20PI Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, 20MHz, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001BA, DIP-8 ATTINY402-SSNR vs ATTINY45-20PI

ATTINY402-SSNR Frequently Asked Questions (FAQ)

  • The ATTINY402-SSNR can operate up to 20 MHz at 5V and 10 MHz at 1.8V.

  • The ATTINY402-SSNR consumes approximately 100 nA in sleep mode.

  • Yes, the ATTINY402-SSNR is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for use in harsh environments.

  • Yes, the ATTINY402-SSNR has 128 bytes of built-in EEPROM for storing non-volatile data.

  • No, the ATTINY402-SSNR does not have a built-in USB interface. It is primarily designed for low-power, low-pin-count applications.
