AXE630124 by: Panasonic Electronic Components

Card Edge Connector, 30 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

Part Details for AXE630124 by Panasonic Electronic Components

Results Overview of AXE630124 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

AXE630124 Information

AXE630124 by Panasonic Electronic Components is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for AXE630124

Part # Distributor Description Stock Price Buy
DISTI # 29X3163
Newark A4S(0.4Mm Pitch |Panasonic AXE630124 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 4,000 $1.5800
  • 8,000 $1.4700
  • 12,000 $1.4200
  • 20,000 $1.4000
$1.4000 / $1.5800 Buy Now
DISTI # AXE630124
Avnet Americas Conn Board to Board HDR 30 POS 0.4mm Solder ST SMD Embossed T/R - Tape and Reel (Alt: AXE630124) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 5,000 $1.2126
  • 10,000 $1.2145
  • 20,000 $1.1750
  • 30,000 $1.1562
  • 40,000 $1.1374
$1.1374 / $1.2145 Buy Now
DISTI # 74612987
RS BtoB CNA4S(0.4mm pitch) | Panasonic Electronic Components AXE630124 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 5,000 $1.6600
  • 10,000 $1.5900
  • 20,000 $1.5400
$1.5400 / $1.6600 RFQ
DISTI # 000000000007253423
Sager BOARD TO BOARD & MEZZANINE CONNECTORS SMD/SMT Min Qty: 5000 0
  • 5,000 $1.8000
$1.8000 Buy Now
DISTI # AXE630124
Avnet Abacus Conn Board to Board HDR 30 POS 04mm Solder ST SMD Embossed TR (Alt: AXE630124) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 18 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for AXE630124

AXE630124 Part Data Attributes

Parametric Data
AXE630124 Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:

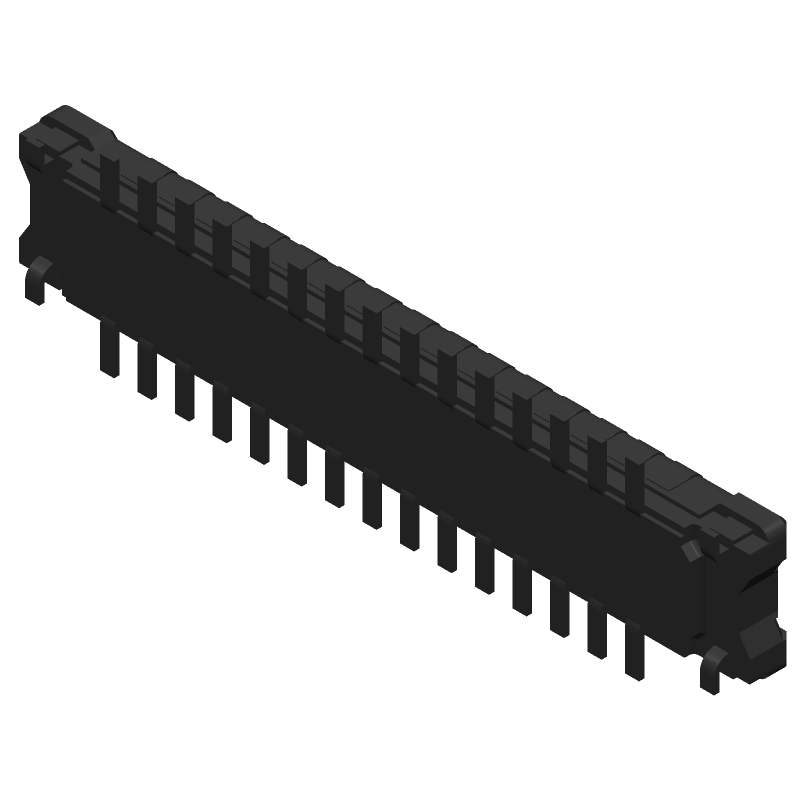

AXE630124 Panasonic Electronic Components Card Edge Connector, 30 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 10 Weeks
Samacsys Manufacturer Panasonic
Additional Feature LOW PROFILE
Connector Type FFC/FPC CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
MIL Conformance NO
Mating Contact Pitch 0.016 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number of Rows Loaded 2
Option GENERAL PURPOSE
Terminal Pitch 0.4 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 30
UL Flammability Code 94V-0
