Single N-Channel Small Signal MOSFET 60V, 500mA, 5Ω, TO-92-3, 10000-BLKBG

Part Details for BS170 by onsemi

Overview of BS170 by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy

Available Datasheets

Part # Manufacturer Description Datasheet
ND9BS1700 Amphenol Communications Solutions ix Industrial, Input output connectors, Receptacle, Type B RA Flag Style, SMT, Palladium-Nickel Gold

Price & Stock for BS170

Part # Distributor Description Stock Price Buy
DISTI # 58K8772
Newark N Channel Mosfet, 60V, 500Ma, To-92, Channel Type:N Channel, Drain Source Voltage Vds:60V, Continuous Drain Current Id:500Ma, Transistor Mounting:Through Hole, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:2.1V Rohs Compliant: Yes |Onsemi BS170 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 3784
  • 1 $0.3280
  • 10 $0.2150
  • 100 $0.1070
  • 500 $0.1010
  • 1,000 $0.0950
  • 2,500 $0.0890
  • 10,000 $0.0820
$0.0820 / $0.3280 Buy Now
DISTI # 25AC6457
Newark Dmos 60V 1.2 Ohm To92 Rohs Compliant: Yes |Onsemi BS170 RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 10,000 $0.0820
$0.0820 Buy Now
DISTI # BS170
Avnet Americas Trans MOSFET N-CH 60V 0.5A 3-Pin TO-92 Bulk - Bulk (Alt: BS170) RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk 11900
  • 10,000 $0.0637
  • 11,000 $0.0614
  • 21,000 $0.0592
  • 50,000 $0.0571
  • 100,000 $0.0558
$0.0558 / $0.0637 Buy Now
DISTI # BS170
Avnet Americas Trans MOSFET N-CH 60V 0.5A 3-Pin TO-92 Bulk - Bulk (Alt: BS170) RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Bulk 134888 Partner Stock
  • 10,000 $0.0641
  • 11,000 $0.0617
  • 21,000 $0.0595
  • 50,000 $0.0575
  • 100,000 $0.0558
$0.0558 / $0.0641 Buy Now
DISTI # BS170
Avnet Americas Trans MOSFET N-CH 60V 0.5A 3-Pin TO-92 Bulk - Bulk (Alt: BS170) RoHS: Compliant Min Qty: 20000 Package Multiple: 10000 Container: Bulk 0
  • 20,000 $0.0637
  • 40,000 $0.0614
  • 60,000 $0.0592
  • 100,000 $0.0571
  • 200,000 $0.0558
$0.0558 / $0.0637 Buy Now
Rochester Electronics Small Signal Field-Effect Transistor, 0.5A, 60V, N-Channel, MOSFET, TO-226AA RoHS: Compliant Status: Active Min Qty: 1 60521
  • 1 $0.0690
  • 25 $0.0676
  • 100 $0.0649
  • 500 $0.0621
  • 1,000 $0.0587
$0.0587 / $0.0690 Buy Now
DISTI # BS170
TME Transistor: N-MOSFET, unipolar, 60V, 500mA, Idm: 1.2A, 0.83W, TO92 Min Qty: 1 9036
  • 1 $0.2960
  • 10 $0.2220
  • 30 $0.1680
  • 100 $0.1220
  • 500 $0.0920
  • 1,000 $0.0850
  • 5,000 $0.0820
  • 10,000 $0.0800
$0.0800 / $0.2960 Buy Now
ComSIT USA N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR Small Signal Field-Effect Transistor, 0.5A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-226AA RoHS: Compliant Stock DE - 195
Stock ES - 5618
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # SMC-BS170
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 2298
RFQ
DISTI # BS170
Avnet Silica Trans MOSFET N-CH 60V 0.5A 3-Pin TO-92 Bulk (Alt: BS170) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days Silica - 30000
Buy Now
DISTI # BS170
EBV Elektronik Trans MOSFET N-CH 60V 0.5A 3-Pin TO-92 Bulk (Alt: BS170) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 17 Weeks, 0 Days EBV - 10000
Buy Now
Flip Electronics Stock, ship today 134888
RFQ
LCSC 60V 500mA 510V200mA 830mW 3V1mA 1 N-channel TO-92-3 MOSFETs ROHS 1485
  • 5 $0.1463
  • 50 $0.1165
  • 150 $0.1000
  • 1,000 $0.0900
  • 2,000 $0.0814
  • 5,000 $0.0768
$0.0768 / $0.1463 Buy Now
New Advantage Corporation N-Channel 60 V 5 Ohm Enhancement Mode Field Effect Transistor - TO-92 RoHS: Compliant Min Qty: 1 Package Multiple: 1000 20000
  • 2,000 $0.0841
  • 20,000 $0.0785
$0.0785 / $0.0841 Buy Now

Part Details for BS170

BS170 CAD Models

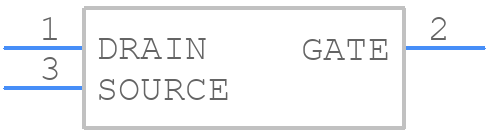

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BS170 Part Data Attributes

Parametric Data
BS170 onsemi
Buy Now Datasheet
Compare Parts:
BS170 onsemi Single N-Channel Small Signal MOSFET 60V, 500mA, 5Ω, TO-92-3, 10000-BLKBG
Pbfree Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code TO-92-3
Package Description TO-92, 3 PIN
Pin Count 3
Manufacturer Package Code 135AN
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 2 Days
Samacsys Manufacturer onsemi
Additional Feature LOGIC LEVEL COMPATIBLE
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 60 V
Drain Current-Max (ID) 0.5 A
Drain-source On Resistance-Max 5 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-226AA
JESD-30 Code O-PBCY-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 0.83 W
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
Transistor Application SWITCHING
