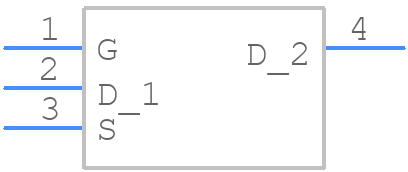

Part Symbol
-

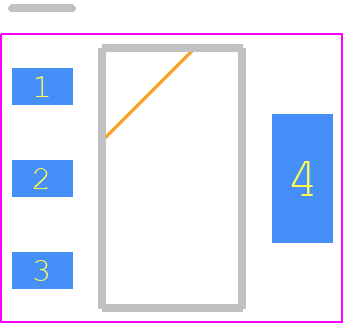

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSP171PH6327XTSA1 by Infineon Technologies AG
Results Overview of BSP171PH6327XTSA1 by Infineon Technologies AG
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BSP171PH6327XTSA1 Information
BSP171PH6327XTSA1 by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BSP171PH6327XTSA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AC4413
|
Newark | Mosfet, P-Ch, 60V, 1.9A, Sot-223, Channel Type:P Channel, Drain Source Voltage Vds:60V, Continuous Drain Current Id:1.9A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.5V Rohs Compliant: Yes |Infineon BSP171PH6327XTSA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 56768 |
|
$0.2470 | Buy Now |
|
DISTI #
86AK4506
|
Newark | Mosfet, P-Ch, 60V, 1.9A, Sot-223 Rohs Compliant: Yes |Infineon BSP171PH6327XTSA1 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.4020 / $0.4690 | Buy Now |
|
DISTI #
68AC4413
|
Avnet Americas | Power MOSFET, P Channel, 60 V, 1.9 A, 300 Milliohms, SOT-223, 4 Pins, Surface Mount - Product that comes on tape, but is not reeled (Alt: 68AC4413) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 5875 Partner Stock |
|
$0.6040 / $1.0500 | Buy Now |
|
DISTI #
BSP171PH6327XTSA1
|
Avnet Americas | Power MOSFET, P Channel, 60 V, 1.9 A, 300 Milliohms, SOT-223, 4 Pins, Surface Mount - Tape and Reel (Alt: BSP171PH6327XTSA1) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.1857 / $0.1985 | Buy Now |
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
DISTI #
BSP171PH6327XTSA1
|
TME | Transistor: P-MOSFET, unipolar, -60V, -1.9A, 1.8W, PG-SOT223 Min Qty: 1 | 700 |
|
$0.2640 / $0.8940 | Buy Now |
|
|
Ameya Holding Limited | Single P-Channel 60 V 0.3 Ohm 20 nC SIPMOS® Power Mosfet - SOT-223 | 75 |
|
Buy Now RFQ | |
|
DISTI #
BSP171PH6327XTSA1
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 9950 |
|
$0.2830 / $0.8760 | Buy Now |
|
DISTI #
SP001058824
|
EBV Elektronik | Power MOSFET P Channel 60 V 19 A 300 Milliohms SOT223 4 Pins Surface Mount (Alt: SP001058824) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 11 Weeks, 0 Days | EBV - 81000 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 65000 |
|
$0.7908 / $0.8567 | Buy Now |
Part Details for BSP171PH6327XTSA1
BSP171PH6327XTSA1 CAD Models
BSP171PH6327XTSA1 Part Data Attributes
|
|
BSP171PH6327XTSA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
BSP171PH6327XTSA1
Infineon Technologies AG
Small Signal Field-Effect Transistor, 1.9A I(D), 60V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-4
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | GREEN, PLASTIC PACKAGE-4 | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 16 Weeks, 3 Days | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | AVALANCHE RATED, LOGIC LEVEL COMPATIBLE | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 1.9 A | |
| Drain-source On Resistance-Max | 0.3 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 55 pF | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 1.8 W | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Element Material | SILICON |
