Capacitors / Ceramic Capacitors / C0402C470J5GACTU
Datasheets
C0402C470J5GACTU by: KEMET Corporation

Capacitor, Ceramic, Chip, General Purpose, 47pF, 50V, ±5%, C0G/NP0, 0402 (1005 mm), -55º ~ +125ºC, 7" Reel/Unmarked

Part Details for C0402C470J5GACTU by KEMET Corporation

Results Overview of C0402C470J5GACTU by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

C0402C470J5GACTU Information

C0402C470J5GACTU by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C0402C470J5GACTU

Part # Distributor Description Stock Price Buy
DISTI # 53M7168
Newark Multilayer Ceramic Capacitor, C Series, 47 Pf, - 5%, C0G/Np0, 50 V, 0402 [1005 Metric] Rohs Compliant: Yes |Kemet C0402C470J5GACTU RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape 63503
  • 1 $0.1030
  • 25 $0.0150
  • 100 $0.0100
  • 250 $0.0090
  • 500 $0.0090
  • 1,000 $0.0080
$0.0080 / $0.1030 Buy Now
DISTI # 03C3054
Newark Ceramic Capacitor 47Pf 50V, C0G, 5%, 0402, Capacitance:47Pf, Voltage(Dc):50V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:C Series Kemet, Qualification:-Rohs Compliant: Yes |Kemet C0402C470J5GACTU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 9481
  • 1 $0.1000
  • 25 $0.0120
  • 100 $0.0070
  • 250 $0.0060
  • 500 $0.0060
  • 1,000 $0.0050
$0.0050 / $0.1000 Buy Now
DISTI # 01J3928
Newark Ceramic Capacitor 47Pf 50V, C0G, 5%, 0402, Full Reel, Capacitance:47Pf, Voltage(Dc):50V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:C Series Kemet Rohs Compliant: Yes |Kemet C0402C470J5GACTU RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 10,000 $0.0030
$0.0030 Buy Now
DISTI # C0402C470J5GACTU
Avnet Americas Multilayer Ceramic Capacitor, 47 pF, 50 V, ? 5%, C0G (NP0), 0402 [1005 Metric] - Tape and Reel (Alt: C0402C470J5GACTU) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 18 Weeks, 0 Days Container: Reel 80000
  • 10,000 $0.0027
  • 20,000 $0.0027
  • 40,000 $0.0027
  • 60,000 $0.0027
  • 80,000 $0.0027
$0.0027 / $0.0027 Buy Now
DISTI # C0402C470J5GACTU
Avnet Americas Multilayer Ceramic Capacitor, 47 pF, 50 V, ? 5%, C0G (NP0), 0402 [1005 Metric] - Tape and Reel (Alt: C0402C470J5GACTU) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 18 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0029
  • 20,000 $0.0028
  • 40,000 $0.0027
  • 60,000 $0.0027
  • 80,000 $0.0026
$0.0026 / $0.0029 Buy Now
DISTI # 70095429
RS Capacitor, Ceramic, Cap, 47.0pF, Tol 5%, SMT, 50V, C0G Min Qty: 5 Package Multiple: 1 Container: Bulk 5825
  • 5 $0.0120
  • 10 $0.0110
  • 15 $0.0110
  • 20 $0.0100
  • 25 $0.0090
$0.0090 / $0.0120 Buy Now
DISTI # 70097116
RS Capacitor, Ceramic, Cap, 47.0pF, Tol+5%, SMT, Vol-Rtg 50V, C0G, TR Min Qty: 10000 Package Multiple: 1 Container: Bulk 0
  • 10,000 $0.0040
  • 20,000 $0.0040
  • 30,000 $0.0040
  • 40,000 $0.0040
$0.0040 RFQ
Bristol Electronics   Min Qty: 89 46231
  • 89 $0.0563
  • 268 $0.0375
  • 935 $0.0094
  • 7,980 $0.0056
  • 22,323 $0.0048
  • 41,668 $0.0045
$0.0045 / $0.0563 Buy Now
DISTI # C0402C470J5GAC
TME Capacitor: ceramic, MLCC, 47pF, 50V, C0G (NP0), ±5%, SMD, 0402 Min Qty: 1 9000
  • 1 $0.1299
  • 10 $0.0154
  • 100 $0.0098
  • 500 $0.0073
  • 1,000 $0.0064
  • 2,000 $0.0057
  • 10,000 $0.0043
  • 40,000 $0.0041
$0.0041 / $0.1299 Buy Now
Ameya Holding Limited Capacitor: ceramic, MLCC, 47pF, 50VDC, C0G, ±5%, SMD, 0402 70000
Buy Now RFQ
Velocity Electronics Our Stock 92
RFQ
Chip 1 Exchange INSTOCK 9000
RFQ
DISTI # C0402C470J5GAC7867
Avnet Asia Multilayer Ceramic Capacitor, 47 pF, 50 V, ? 5%, C0G (NP0), 0402 [1005 Metric] (Alt: C0402C470J5GAC7867) RoHS: Compliant Min Qty: 60000 Package Multiple: 10000 Lead time: 15 Weeks, 0 Days 0
RFQ
Vyrian Capacitors 127721
RFQ

Part Details for C0402C470J5GACTU

C0402C470J5GACTU CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

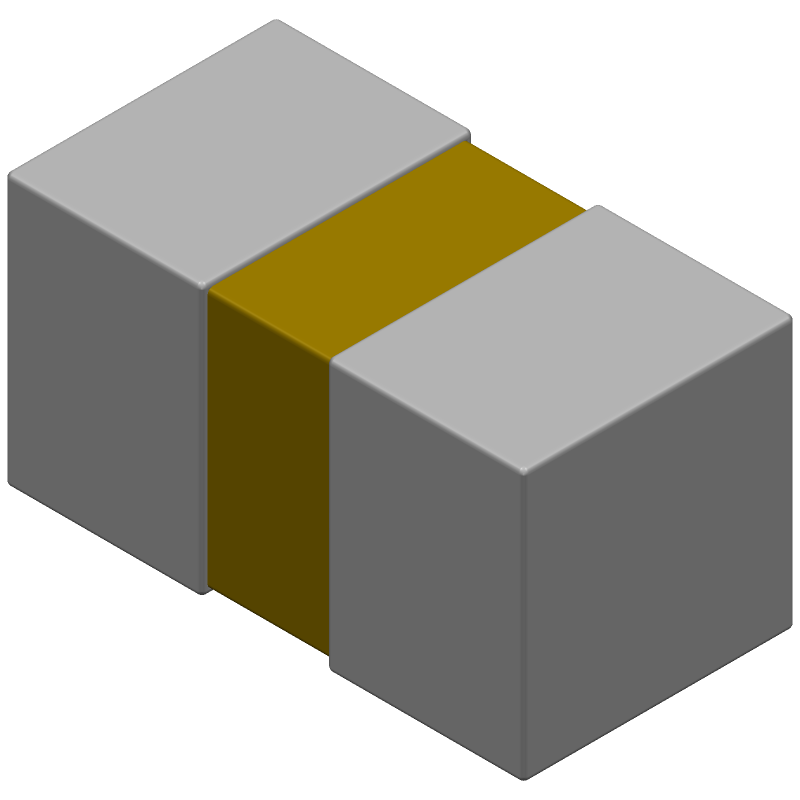

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C0402C470J5GACTU Part Data Attributes

Parametric Data
C0402C470J5GACTU KEMET Corporation
Buy Now Datasheet
Compare Parts:
C0402C470J5GACTU KEMET Corporation Capacitor, Ceramic, Chip, General Purpose, 47pF, 50V, ±5%, C0G/NP0, 0402 (1005 mm), -55º ~ +125ºC, 7" Reel/Unmarked
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Part Package Code 0402
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 18 Weeks
Samacsys Manufacturer KEMET
Capacitance 0.000047 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PUNCHED PAPER, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 50 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for C0402C470J5GACTU

This table gives cross-reference parts and alternative options found for C0402C470J5GACTU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C0402C470J5GACTU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C0402T470J5GAC7411 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP C0402C470J5GACTU vs C0402T470J5GAC7411
CL05C470JB5SNNO Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0402, C0402C470J5GACTU vs CL05C470JB5SNNO
CL05C470JB51PNO Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP C0402C470J5GACTU vs CL05C470JB51PNO
C0402T470J5GBCTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0402, C0402C470J5GACTU vs C0402T470J5GBCTU
C0402T470J5GBL KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP C0402C470J5GACTU vs C0402T470J5GBL
CL05C470JB51PNB Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP C0402C470J5GACTU vs CL05C470JB51PNB
GCH1555C1H470JE01W Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP C0402C470J5GACTU vs GCH1555C1H470JE01W
GRP1555C1H470JD01F Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0402, C0402C470J5GACTU vs GRP1555C1H470JD01F
CL05C470JB5GNNF Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0402, C0402C470J5GACTU vs CL05C470JB5GNNF
GRM1555C1H470JZ01B Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT C0402C470J5GACTU vs GRM1555C1H470JZ01B

C0402C470J5GACTU Related Parts

C0402C470J5GACTU Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C0402C470J5GACTU capacitor is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the C0402C470J5GACTU capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The C0402C470J5GACTU capacitor is rated for operation up to 125°C, but it's not recommended for use in extreme high-temperature environments. For high-temperature applications, consider using a capacitor with a higher temperature rating.

  • The maximum voltage derating for the C0402C470J5GACTU capacitor is 80% of the rated voltage. For example, if the rated voltage is 16V, the maximum voltage derating would be 12.8V.

  • Yes, the C0402C470J5GACTU capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
