Capacitors / Ceramic Capacitors / C1005X7R1H102K050BA
Datasheets
C1005X7R1H102K050BA by:

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT

Part Details for C1005X7R1H102K050BA by TDK Corporation

Results Overview of C1005X7R1H102K050BA by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C1005X7R1H102K050BA Information

C1005X7R1H102K050BA by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C1005X7R1H102K050BA

Part # Distributor Description Stock Price Buy
DISTI # 55T0072
Newark Cap, 1000Pf, 50V, Mlcc, 0402, Capacitance:1000Pf, Voltage(Dc):50V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:C Series, Product Length:1.02Mm Rohs Compliant: Yes |Tdk C1005X7R1H102K050BA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 124315
  • 1 $0.0050
  • 50 $0.0050
  • 100 $0.0050
  • 250 $0.0050
  • 1,000 $0.0050
  • 2,500 $0.0050
$0.0050 Buy Now
DISTI # 79Y4224
Newark Cap, 1000Pf, 50V, Mlcc, 0402, Capacitance:1000Pf, Voltage(Dc):50V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:C Series, Product Length:1.02Mm Rohs Compliant: Yes |Tdk C1005X7R1H102K050BA RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 20000
  • 10,000 $0.0060
  • 20,000 $0.0060
$0.0060 Buy Now
DISTI # 23AC3846
Newark Cap .001Uf 50Vdc X7R 10% Smd 0402 Rohs Compliant: Yes |Tdk C1005X7R1H102K050BA RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 10,000 $0.0090
$0.0090 Buy Now
DISTI # C1005X7R1H102K050BA
Avnet Americas Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 10%, X7R, 0402 [1005 Metric] - Tape and Reel (Alt: C1005X7R1H102K050BA) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days Container: Reel 50000
  • 10,000 $0.0057
  • 20,000 $0.0056
  • 40,000 $0.0055
  • 60,000 $0.0054
  • 80,000 $0.0053
$0.0053 / $0.0057 Buy Now
DISTI # 55T0072
Avnet Americas Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 10%, X7R, 0402 [1005 Metric] - Product that comes on tape, but is not reeled (Alt: 55T0072) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks, 4 Days Container: Ammo Pack 124315 Partner Stock
  • 1 $0.0980
  • 25 $0.0260
  • 100 $0.0170
  • 250 $0.0150
  • 500 $0.0140
$0.0140 / $0.0980 Buy Now
DISTI # 79Y4224
Avnet Americas Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 10%, X7R, 0402 [1005 Metric] - Tape and Reel (Alt: 79Y4224) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks, 3 Days Container: Reel 20000 Partner Stock
  • 1 $0.0080
$0.0080 Buy Now
Bristol Electronics   10472
RFQ
Bristol Electronics   9750
RFQ
DISTI # C1005X7R1H102KBA
TME Capacitor: ceramic, MLCC, 1nF, 50V, X7R, ±10%, SMD, 0402 Min Qty: 1 7470
  • 1 $0.0877
  • 10 $0.0264
  • 50 $0.0182
  • 100 $0.0157
  • 500 $0.0116
  • 1,000 $0.0103
  • 10,000 $0.0074
  • 50,000 $0.0063
  • 100,000 $0.0062
$0.0062 / $0.0877 Buy Now
DISTI # C1005X7R1H102K050BA
Avnet Abacus Multilayer Ceramic Capacitor 1000 pF 50 V 10 X7R 0402 1005 Metric - Tape and Reel (Alt: C1005X7R1H102K050BA) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 13 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Vyrian Capacitors 156220
RFQ

Part Details for C1005X7R1H102K050BA

C1005X7R1H102K050BA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

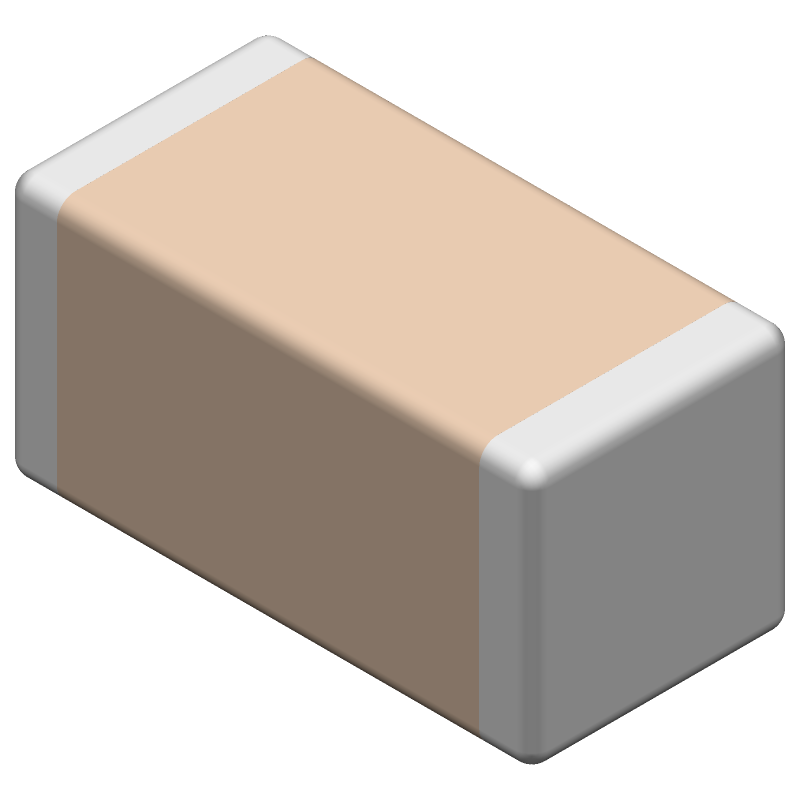

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C1005X7R1H102K050BA Part Data Attributes

Parametric Data
C1005X7R1H102K050BA TDK Corporation
Buy Now Datasheet
Compare Parts:
C1005X7R1H102K050BA TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 16 Weeks, 3 Days
Samacsys Manufacturer TDK
Capacitance 0.001 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 Inch
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for C1005X7R1H102K050BA

This table gives cross-reference parts and alternative options found for C1005X7R1H102K050BA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C1005X7R1H102K050BA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
GRT155R71H102KE01J Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP C1005X7R1H102K050BA vs GRT155R71H102KE01J
CC0402KPX7R9BB102 YAGEO Corporation $0.0061 Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±10%, X7R, 0402 (1005 mm), 0.022"T, -55º ~ +125ºC, 13" Reel/Paper Tape C1005X7R1H102K050BA vs CC0402KPX7R9BB102
C0402C102K5RALTU KEMET Corporation $0.1201 Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP C1005X7R1H102K050BA vs C0402C102K5RALTU
C0402C102K5RACTU KEMET Corporation $0.0058 Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±10%, X7R, 0402 (1005 mm), -55º ~ +125ºC, 7" Reel/Unmarked C1005X7R1H102K050BA vs C0402C102K5RACTU
GMD155R71H102KA01J Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT C1005X7R1H102K050BA vs GMD155R71H102KA01J
UMF105B7102KVHF TAIYO YUDEN $0.0069 Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP C1005X7R1H102K050BA vs UMF105B7102KVHF
C0402C102K5RECAUTO KEMET Corporation $0.0224 Ceramic Capacitor, Ceramic, C1005X7R1H102K050BA vs C0402C102K5RECAUTO
MBASU105SB7102KFNA01 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP C1005X7R1H102K050BA vs MBASU105SB7102KFNA01
GRM155R71H102KA01D Murata Manufacturing Co Ltd $0.0054 Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/Paper Tape C1005X7R1H102K050BA vs GRM155R71H102KA01D
GXT155R71H102KE01D Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0402, CHIP C1005X7R1H102K050BA vs GXT155R71H102KE01D

C1005X7R1H102K050BA Related Parts

C1005X7R1H102K050BA Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C1005X7R1H102K050BA is 260°C for 10 seconds or less, with a peak temperature of 240°C.

  • Yes, the C1005X7R1H102K050BA is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature range for the C1005X7R1H102K050BA is -55°C to 125°C.

  • Yes, the C1005X7R1H102K050BA is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.

  • The ESR of the C1005X7R1H102K050BA is 50 mΩ or less at 100 kHz.
