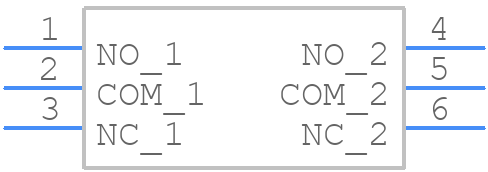

Part Symbol
-

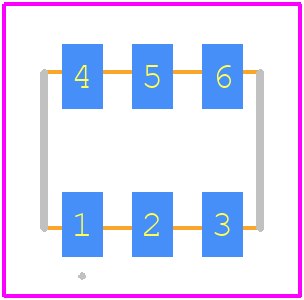

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CAS-220A1 by Nidec Copal Electronics Corporation
Results Overview of CAS-220A1 by Nidec Copal Electronics Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CAS-220A1 Information
CAS-220A1 by Nidec Copal Electronics Corporation is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for CAS-220A1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CAS-220A1
|
Avnet Americas | DPDT, ON-ON Slide, 100mA @ 6V DC J-Hook SMD Terminal, Bulk Packaging, Non-washable - Bulk (Alt: CAS-220A1) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$1.2288 / $1.3056 | Buy Now |
|
DISTI #
CAS-220A1
|
Avnet Abacus | DPDT ONON Slide 100mA 6V DC JHook SMD Terminal Bulk Packaging Nonwashable (Alt: CAS-220A1) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CAS-220A1
CAS-220A1 CAD Models
CAS-220A1 Part Data Attributes
|
|
CAS-220A1
Nidec Copal Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
CAS-220A1
Nidec Copal Electronics Corporation
Slide Switch, DPDT, Latched, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NIDEC COPAL ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.50 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Nidec Copal | |
| Additional Feature | LOW PROFILE | |
| Body Breadth | 3.9 mm | |
| Body Height | 2.5 mm | |
| Body Length or Diameter | 5.4 mm | |
| Contact Current(DC)-Max | 0.025 A | |
| Contact (DC) Max Rating R Load | .025A@24VDC | |
| Contact Voltage(DC)-Max | 24 V | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Operating Force-Max | 5 N | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | BULK | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | GOLD | |
| Termination Type | SOLDER |
CAS-220A1 Frequently Asked Questions (FAQ)
-
The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer PCB with a large copper area for heat dissipation. The device should be placed near a corner of the PCB to allow for maximum airflow.
-
To ensure reliable operation in high-humidity environments, it is recommended to apply a conformal coating to the device and PCB, and to follow proper storage and handling procedures to prevent moisture absorption.
-
The recommended soldering conditions for the CAS-220A1 involve using a soldering iron with a temperature of 350°C ± 10°C, and a soldering time of 3 seconds ± 1 second. A solder with a melting point of 183°C ± 5°C should be used.
-
To troubleshoot issues with the device's accuracy or stability, check the power supply voltage, PCB layout, and component tolerances. Verify that the device is operated within the recommended temperature range and that the input signals are within the specified range.
-
Operating the device beyond the recommended specifications can lead to reduced accuracy, stability, and reliability. It may also cause the device to overheat, leading to premature failure or damage.
