Memory / EEPROMs / CAT24C02TDI-GT3A
Datasheets
CAT24C02TDI-GT3A by: onsemi

EEPROM Serial 2-Kb I2C, TSOT-23. 5 Lead, 3000-REEL

Part Details for CAT24C02TDI-GT3A by onsemi

Overview of CAT24C02TDI-GT3A by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for CAT24C02TDI-GT3A

Part # Distributor Description Stock Price Buy
DISTI # 08AK5197
Newark 2-Kb I2C Serial Eeprom Memory/ Reel |Onsemi CAT24C02TDI-GT3A RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3000
  • 1 $0.1420
  • 25 $0.1420
$0.1420 Buy Now
DISTI # 42Y0135
Newark Eeprom, 2Kbit, I2C, 400Khz, Tsot-23-5, Memory Configuration:256 X 8Bit, Interfaces:I2C, Clock Frequency Max:400Khz, Ic Case/Package:Tsot-23, No. Of Pins:5Pins, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, Product Range:- Rohs Compliant: Yes |Onsemi CAT24C02TDI-GT3A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $0.2050
  • 25 $0.2050
$0.2050 Buy Now
DISTI # 99R2418
Newark 2-Kb I2C Serial Eeprom Memory/ Reel |Onsemi CAT24C02TDI-GT3A RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 3,000 $0.2390
  • 6,000 $0.2090
  • 12,000 $0.1860
  • 18,000 $0.1720
  • 30,000 $0.1560
$0.1560 / $0.2390 Buy Now
DISTI # 08AK5197
Avnet Americas EEPROM, I2C, Serial, 2 Kbit, 256 x 8bit, 400 kHz, 5 Pins, TSOT-23 - Product that comes on tape, but is not reeled (Alt: 08AK5197) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 53 Weeks, 4 Days Container: Ammo Pack 2440 Partner Stock
  • 1 $0.2810
  • 25 $0.2800
  • 50 $0.2650
$0.2650 / $0.2810 Buy Now
DISTI # CAT24C02TDI-GT3A
Avnet Americas EEPROM, I2C, Serial, 2 Kbit, 256 x 8bit, 400 kHz, 5 Pins, TSOT-23 - Tape and Reel (Alt: CAT24C02TDI-GT3A) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 21 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.2018
  • 6,000 $0.2007
  • 12,000 $0.1467
  • 18,000 $0.1459
  • 24,000 $0.1452
$0.1452 / $0.2018 Buy Now
Bristol Electronics   Min Qty: 11 287
  • 11 $0.4875
  • 43 $0.3169
  • 159 $0.1828
$0.1828 / $0.4875 Buy Now
DISTI # CAT24C02TDI-GT3A
TME IC: EEPROM memory, 2kbEEPROM, I2C, 256x8bit, 1.7÷5.5V, SOT23-5 Min Qty: 1 0
  • 1 $0.2790
  • 100 $0.2000
  • 1,000 $0.1800
  • 3,000 $0.1790
$0.1790 / $0.2790 RFQ
DISTI # SMC-CAT24C02TDI-GT3A
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 330
RFQ
DISTI # CAT24C02TDI-GT3A
Avnet Asia EEPROM, I2C, Serial, 2 Kbit, 256 x 8bit, 400 kHz, 5 Pins, TSOT-23 (Alt: CAT24C02TDI-GT3A) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 21 Weeks, 0 Days 0
  • 9,000 $0.1083
  • 18,000 $0.1069
  • 27,000 $0.1055
  • 45,000 $0.1042
  • 90,000 $0.1016
  • 225,000 $0.0992
  • 450,000 $0.0968
$0.0968 / $0.1083 Buy Now
DISTI # CAT24C02TDI-GT3A
Avnet Silica EEPROM, I2C, Serial, 2 Kbit, 256 x 8bit, 400 kHz, 5 Pins, TSOT-23 (Alt: CAT24C02TDI-GT3A) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 22 Weeks, 0 Days Silica - 0
Buy Now
DISTI # CAT24C02TDI-GT3A
EBV Elektronik EEPROM, I2C, Serial, 2 Kbit, 256 x 8bit, 400 kHz, 5 Pins, TSOT-23 (Alt: CAT24C02TDI-GT3A) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 23 Weeks, 0 Days EBV - 0
Buy Now
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 245
  • 1 $0.2700
  • 10 $0.2400
  • 100 $0.2100
$0.2100 / $0.2700 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 3000
  • 3,000 $0.1887
$0.1887 Buy Now
Win Source Electronics IC EEPROM 2KBIT 400KHZ TSOT23-5 6311
  • 130 $0.3929
  • 275 $0.3676
  • 425 $0.3549
  • 610 $0.3296
  • 790 $0.3169
  • 990 $0.3042
$0.3042 / $0.3929 Buy Now

Part Details for CAT24C02TDI-GT3A

CAT24C02TDI-GT3A CAD Models

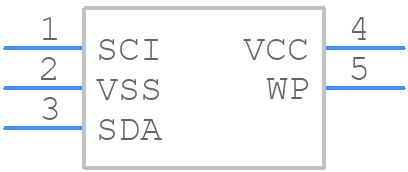

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

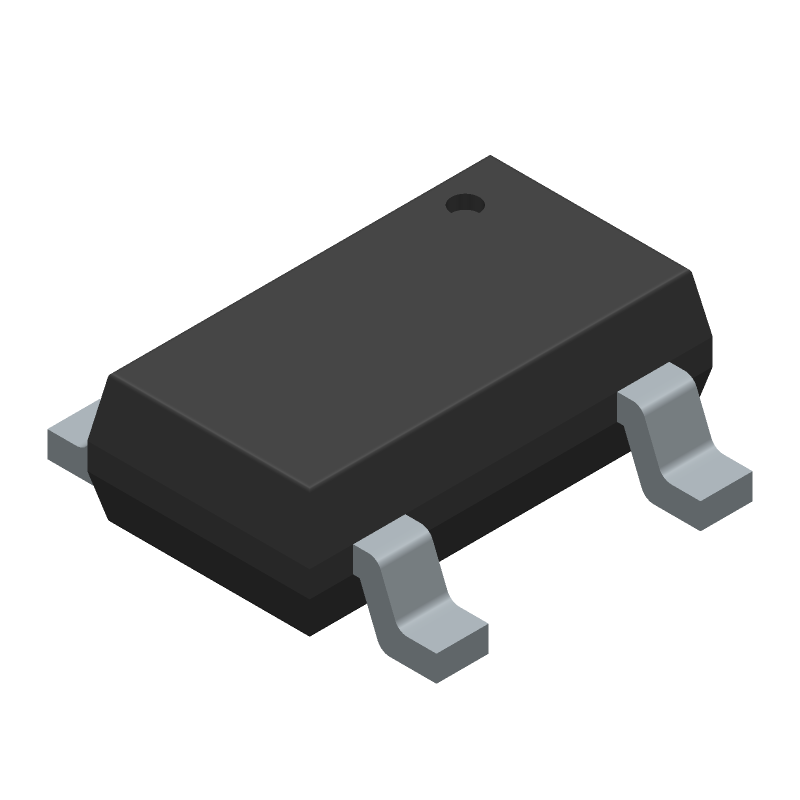

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CAT24C02TDI-GT3A Part Data Attributes

Parametric Data
CAT24C02TDI-GT3A onsemi
Buy Now Datasheet
Compare Parts:
CAT24C02TDI-GT3A onsemi EEPROM Serial 2-Kb I2C, TSOT-23. 5 Lead, 3000-REEL
Pbfree Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code TSOT-23. 5 Lead
Package Description TSOT-23, 5 PIN
Pin Count 5
Manufacturer Package Code 419AE
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 53 Weeks, 4 Days
Samacsys Manufacturer onsemi
Clock Frequency-Max (fCLK) 0.4 MHz
Data Retention Time-Min 100
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010000R
JESD-30 Code R-PDSO-G5
JESD-609 Code e4
Length 2.9 mm
Memory Density 2048 bit
Memory IC Type EEPROM
Memory Width 1
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 5
Number of Words 2048 words
Number of Words Code 2000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 2KX1
Package Body Material PLASTIC/EPOXY
Package Code VSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1 mm
Serial Bus Type I2C
Standby Current-Max 0.000001 A
Supply Current-Max 0.002 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.7 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 1.6 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

Alternate Parts for CAT24C02TDI-GT3A

This table gives cross-reference parts and alternative options found for CAT24C02TDI-GT3A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CAT24C02TDI-GT3A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CAT24C02TDE onsemi Check for Price IC,SERIAL EEPROM,256X8,CMOS,TSOP,5PIN,PLASTIC CAT24C02TDI-GT3A vs CAT24C02TDE
CAT24C02TDI-GT3 onsemi Check for Price 2-Kb I2C Serial EEPROM Memory, TSOT-23. 5 Lead, 3000-REEL CAT24C02TDI-GT3A vs CAT24C02TDI-GT3
CAT24C02TDE-T3 onsemi Check for Price 256X8 I2C/2-WIRE SERIAL EEPROM, PDSO5, GREEN, MO-193, TSOT-23, 5 PIN CAT24C02TDI-GT3A vs CAT24C02TDE-T3
CAT24C02TDI-G onsemi Check for Price IC,SERIAL EEPROM,256X8,CMOS,TSOP,5PIN,PLASTIC CAT24C02TDI-GT3A vs CAT24C02TDI-G
CAT24C02TDIT3 onsemi Check for Price 256X8 I2C/2-WIRE SERIAL EEPROM, PDSO5, GREEN, MO-193, TSOT-23, 5 PIN CAT24C02TDI-GT3A vs CAT24C02TDIT3
CAT24C02TDE-G onsemi Check for Price IC,SERIAL EEPROM,256X8,CMOS,TSOP,5PIN,PLASTIC CAT24C02TDI-GT3A vs CAT24C02TDE-G
CAT24C02TDI onsemi Check for Price IC,SERIAL EEPROM,256X8,CMOS,TSOP,5PIN,PLASTIC CAT24C02TDI-GT3A vs CAT24C02TDI
CAT24C02TDE-GT3 onsemi Check for Price IC 256 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO5, HALOGEN FREE AND ROHS COMPLIANT, MO-193, TSOT-23, 5 PIN, Programmable ROM CAT24C02TDI-GT3A vs CAT24C02TDE-GT3
Part Number Manufacturer Composite Price Description Compare
M95010-MB3/W STMicroelectronics Check for Price 128X8 SPI BUS SERIAL EEPROM, DSO8, 2 X 3 MM, MLP-8 CAT24C02TDI-GT3A vs M95010-MB3/W
93AA46A-I/MCX Microchip Technology Inc Check for Price 128 X 8 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, DFN-8 CAT24C02TDI-GT3A vs 93AA46A-I/MCX
93C46A-I/MCGX Microchip Technology Inc Check for Price 128 X 8 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, MO-229, DFN-8 CAT24C02TDI-GT3A vs 93C46A-I/MCGX
M24C01-WMB3P STMicroelectronics Check for Price 128X8 I2C/2-WIRE SERIAL EEPROM, DSO8, 2 X 3 MM, LEAD FREE, MLP-8 CAT24C02TDI-GT3A vs M24C01-WMB3P
11AA010T-I/SN Microchip Technology Inc $0.3275 128 X 8 1-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 CAT24C02TDI-GT3A vs 11AA010T-I/SN
M95010-MB6P STMicroelectronics Check for Price 128X8 SPI BUS SERIAL EEPROM, DSO8, 2 X 3 MM, ROHS COMPLIANT, MLP-8 CAT24C02TDI-GT3A vs M95010-MB6P
24VL014HT/MNY Microchip Technology Inc $0.6430 128 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, PLASTIC, TDFN-8 CAT24C02TDI-GT3A vs 24VL014HT/MNY
M95010-RMB3TG/S STMicroelectronics Check for Price 128X8 SPI BUS SERIAL EEPROM, DSO8, 2 X 3 MM, ROHS COMPLIANT, MLP-8 CAT24C02TDI-GT3A vs M95010-RMB3TG/S
M24C01-WMB3TG STMicroelectronics Check for Price 128X8 I2C/2-WIRE SERIAL EEPROM, DSO8, 2 X 3 MM, LEAD FREE, MLP-8 CAT24C02TDI-GT3A vs M24C01-WMB3TG
M24C01-RMB3P/S STMicroelectronics Check for Price 128X8 I2C/2-WIRE SERIAL EEPROM, DSO8, 2 X 3 MM, ROHS COMPLIANT, MLP-8 CAT24C02TDI-GT3A vs M24C01-RMB3P/S
