Capacitors / Ceramic Capacitors / CC0603KRX5R9BB104
Datasheets
CC0603KRX5R9BB104 by: YAGEO Corporation

Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 50V, ±10%, X5R, 0603 (1608 mm), 0.034"T, -55º ~ +85ºC, 7" Reel/Paper Tape

Part Details for CC0603KRX5R9BB104 by YAGEO Corporation

Results Overview of CC0603KRX5R9BB104 by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

CC0603KRX5R9BB104 Information

CC0603KRX5R9BB104 by YAGEO Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CC0603KRX5R9BB104

Part # Distributor Description Stock Price Buy
DISTI # 40AJ6427
Newark Cap, 0.1Uf, 50V, Mlcc, 0603 Rohs Compliant: Yes |Yageo CC0603KRX5R9BB104 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 39664
  • 10 $0.0300
  • 25 $0.0270
  • 50 $0.0230
  • 100 $0.0200
  • 250 $0.0190
  • 500 $0.0180
  • 1,000 $0.0170
$0.0170 / $0.0300 Buy Now
DISTI # 85W3082
Newark Capacitor, 0.1Uf, X5R, 50V, 0603, Capacitance:0.1Μf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X5R, Product Range:Cc Series, Product Length:1.6Mm Rohs Compliant: Yes |Yageo CC0603KRX5R9BB104 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0180
  • 5,000 $0.0150
  • 10,000 $0.0120
  • 20,000 $0.0090
$0.0090 / $0.0180 Buy Now
DISTI # CC0603KRX5R9BB104
Avnet Americas Multilayer Ceramic Capacitor, 0.1 uF, 50 V, ? 10%, X5R, 0603 [1608 Metric] - Tape and Reel (Alt: CC0603KRX5R9BB104) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 28 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.0053
  • 8,000 $0.0052
  • 16,000 $0.0051
  • 24,000 $0.0050
  • 32,000 $0.0050
$0.0050 / $0.0053 Buy Now
DISTI # CC0603KRX5R9BB104
TME Capacitor: ceramic, MLCC, 100nF, 50V, X5R, ±10%, SMD, 0603 Min Qty: 4000 0
  • 4,000 $0.0080
  • 8,000 $0.0061
  • 400,000 $0.0052
$0.0052 / $0.0080 RFQ
DISTI # KKK24980
Rutronik KC 100nF 0603 10% 50V X5R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Container: Reel Stock DE - 88000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 4,000 $0.0041
  • 12,000 $0.0040
  • 20,000 $0.0040
  • 36,000 $0.0040
  • 40,000 $0.0040
$0.0040 / $0.0041 Buy Now
DISTI # SMC-CC0603KRX5R9BB104
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 797
RFQ
DISTI # CC0603KRX5R9BB104
Avnet Abacus - Tape and Reel (Alt: CC0603KRX5R9BB104) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 18 Weeks, 0 Days Container: Reel Abacus - 44000
Buy Now
New Advantage Corporation Cap Cer SMD 0603 100nF � 10% 50V X5R T&R RoHS: Compliant Min Qty: 1 Package Multiple: 4000 64000
  • 16,000 $0.0145
  • 64,000 $0.0134
$0.0134 / $0.0145 Buy Now
Vyrian Capacitors 16724
RFQ

Part Details for CC0603KRX5R9BB104

CC0603KRX5R9BB104 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

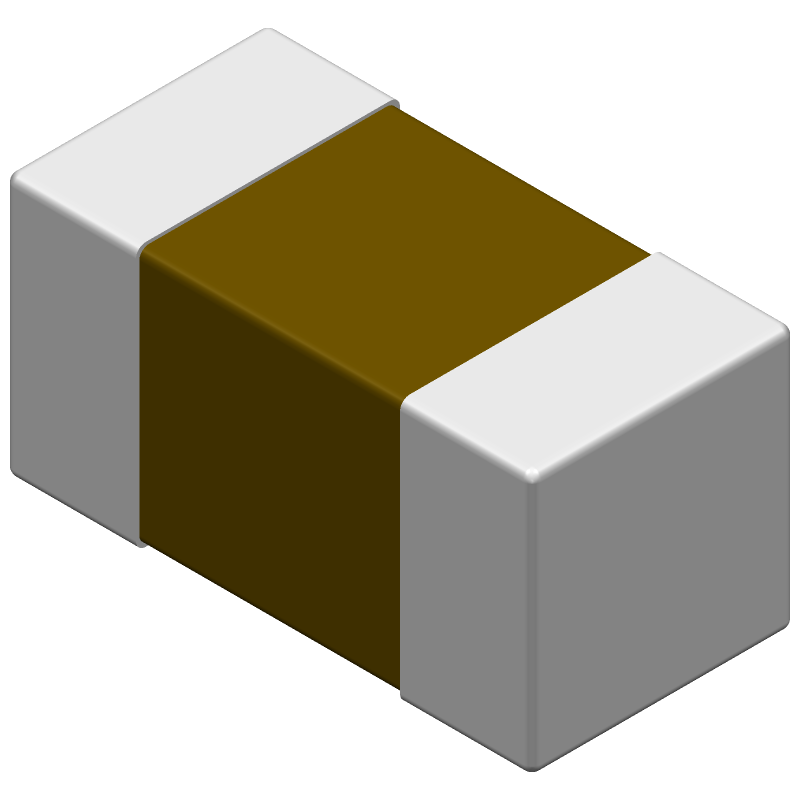

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CC0603KRX5R9BB104 Part Data Attributes

Parametric Data
CC0603KRX5R9BB104 YAGEO Corporation
Buy Now Datasheet
Compare Parts:
CC0603KRX5R9BB104 YAGEO Corporation Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 50V, ±10%, X5R, 0603 (1608 mm), 0.034"T, -55º ~ +85ºC, 7" Reel/Paper Tape
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Part Package Code 0603
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 28 Weeks
Samacsys Manufacturer YAGEO
Capacitance 0.1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code X5R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND

Alternate Parts for CC0603KRX5R9BB104

This table gives cross-reference parts and alternative options found for CC0603KRX5R9BB104. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CC0603KRX5R9BB104, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LD035DK104AX9A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP CC0603KRX5R9BB104 vs LD035DK104AX9A
LD035DK104AB4A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP CC0603KRX5R9BB104 vs LD035DK104AB4A
LD035D104KAX4A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP CC0603KRX5R9BB104 vs LD035D104KAX4A
LD035DK104AX7A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP CC0603KRX5R9BB104 vs LD035DK104AX7A
500R14X104KT4E Johanson Dielectrics Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP CC0603KRX5R9BB104 vs 500R14X104KT4E
0603W104K500NX035T Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT CC0603KRX5R9BB104 vs 0603W104K500NX035T
LD035DK104AB2A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP CC0603KRX5R9BB104 vs LD035DK104AB2A
UMK107BJ104KA-T TAIYO YUDEN Check for Price Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 50V, ±10%, X5R, 0603 (1608 mm), 0.031"T, -55º ~ +85ºC, 7" Reel/4mm pitch CC0603KRX5R9BB104 vs UMK107BJ104KA-T
VJ0603G104KBAAC31 Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP CC0603KRX5R9BB104 vs VJ0603G104KBAAC31
LD035DK104AX2A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP CC0603KRX5R9BB104 vs LD035DK104AX2A

CC0603KRX5R9BB104 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for CC0603KRX5R9BB104 is 250°C for 1-2 seconds, with a peak temperature of 260°C for 10-15 seconds.

  • Yes, CC0603KRX5R9BB104 is compatible with lead-free soldering and is RoHS compliant.

  • The MSL of CC0603KRX5R9BB104 is MSL 2, which means it can withstand exposure to moisture for up to 4 days without being baked.

  • Yes, CC0603KRX5R9BB104 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The operating temperature range of CC0603KRX5R9BB104 is -55°C to 125°C.
