CD40106BM96 by: Texas Instruments

6-ch, 3-V to 18-V inverters with Schmitt-Trigger inputs 14-SOIC -55 to 125

Part Details for CD40106BM96 by Texas Instruments

Overview of CD40106BM96 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Available Datasheets

Part # Manufacturer Description Datasheet
CD40106BM96 Texas Instruments CMOS Hex Schmitt Triggers 14-SOIC -55 to 125
CD40106BM96E4 Texas Instruments CMOS Hex Schmitt Triggers 14-SOIC -55 to 125
CD40106BM96G4 Texas Instruments CMOS Hex Schmitt Triggers 14-SOIC -55 to 125

Price & Stock for CD40106BM96

Part # Distributor Description Stock Price Buy
DISTI # 29AH3549
Newark Inverter Schmitt Trigger, Hex, Soic-14, Logic Family/Base Number:Cd40106B, Logic Type:Inverter Schmitt Trigger, Output Current:-, No. Of Inputs:1, Supply Voltage Min:3V, Supply Voltage Max:18V, Logic Case Style:Soic, No. Of Rohs Compliant: Yes |Texas Instruments CD40106BM96 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 6
  • 1 $0.2010
  • 10 $0.2010
  • 25 $0.2010
  • 50 $0.1850
  • 100 $0.1850
  • 250 $0.1850
  • 500 $0.1710
  • 1,000 $0.1710
$0.1710 / $0.2010 Buy Now
Bristol Electronics   3369
RFQ
Bristol Electronics   1238
RFQ
DISTI # CD40106BM96
TME IC: digital, NOT, Ch: 6, IN: 1, CMOS, SMD, SOIC14, 3÷18VDC, -55÷125°C Min Qty: 1 608
  • 1 $0.3730
  • 10 $0.2200
  • 100 $0.1710
  • 500 $0.1570
  • 1,000 $0.1480
  • 5,000 $0.1380
$0.1380 / $0.3730 Buy Now
Ameya Holding Limited CD40106BM96 六施密特触发反相器, 4.2mA, 14针 SOIC封装 2500
RFQ
ComSIT USA Electronic Component RoHS: Not Compliant Stock DE - 0
Stock ES - 1362
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
Chip 1 Exchange INSTOCK 8953
RFQ
Chip-Germany GmbH   RoHS: Not Compliant 169
RFQ
DISTI # C1S746202436554
Chip1Stop Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC T/R RoHS: Compliant pbFree: Yes Container: Cut Tape 1393
  • 5 $0.3650
  • 50 $0.2840
  • 100 $0.1940
  • 200 $0.1940
  • 500 $0.1690
  • 1,000 $0.1390
$0.1390 / $0.3650 Buy Now
CHIPMALL.COM LIMITED Schmitt Trigger 6 4uA 120ns@15V,50pF 3V~18V SOIC-14 Inverters ROHS 12660
  • 5 $0.2249
  • 50 $0.1845
  • 150 $0.1643
  • 2,500 $0.1493
  • 5,000 $0.1311
  • 10,000 $0.1291
$0.1291 / $0.2249 Buy Now
LCSC Schmitt Trigger 6 4uA 120ns15V50pF 3V18V SOIC-14 Inverters ROHS 13240
  • 5 $0.2343
  • 50 $0.1922
  • 150 $0.1712
  • 2,500 $0.1555
  • 5,000 $0.1366
  • 10,000 $0.1345
$0.1345 / $0.2343 Buy Now
Win Source Electronics IC INVERTER GATE HEX 14SOIC 57500
  • 340 $0.1472
  • 730 $0.1378
  • 1,130 $0.1330
  • 1,620 $0.1235
  • 2,105 $0.1188
  • 2,635 $0.1140
$0.1140 / $0.1472 Buy Now

Part Details for CD40106BM96

CD40106BM96 CAD Models

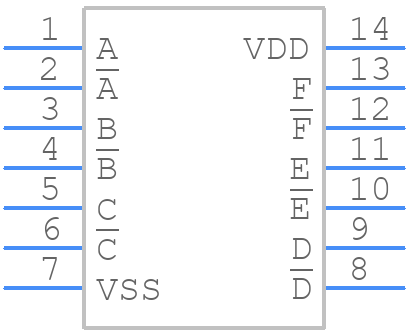

CD40106BM96 Part Data Attributes

CD40106BM96 Texas Instruments
Buy Now Datasheet
Compare Parts:
CD40106BM96 Texas Instruments 6-ch, 3-V to 18-V inverters with Schmitt-Trigger inputs 14-SOIC -55 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, PLASTIC, MS-012AB, SOIC-14
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Family 4000/14000/40000
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 8.65 mm
Load Capacitance (CL) 50 pF
Logic IC Type INVERTER
Max I(ol) 0.0024 A
Moisture Sensitivity Level 1
Number of Functions 6
Number of Inputs 1
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.12 mA
Prop. Delay@Nom-Sup 280 ns
Propagation Delay (tpd) 280 ns
Qualification Status Not Qualified
Schmitt Trigger YES
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3.9 mm
