CD4040BM96 by: Texas Instruments

CMOS 12-Stage Ripple-Carry Binary Counter/Divider 16-SOIC -55 to 125

Part Details for CD4040BM96 by Texas Instruments

Overview of CD4040BM96 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Space Technology Aerospace and Defense Automotive

Price & Stock for CD4040BM96

Part # Distributor Description Stock Price Buy
DISTI # 33AH3797
Newark Ic, 12-Stage Ripple Carry Counter Soic16, Logic Family/Base Number:Cd4040, Counter Type:Ripple Carry Binary/Divider, Clock Frequency:24Mhz, Count Maximum:4095, Logic Case Style:Soic, No. Of Pins:16Pins, Supply Voltage Min:3V, Rohs Compliant: Yes |TEXAS INSTRUMENTS CD4040BM96 Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 2320
  • 1 $0.5410
  • 10 $0.5040
  • 25 $0.4790
  • 50 $0.4590
  • 100 $0.4390
  • 250 $0.4240
  • 500 $0.4150
  • 1,000 $0.4080
$0.4080 / $0.5410 Buy Now
DISTI # 296-25944-1-ND
DigiKey IC BINARY COUNTER 12-BIT 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2578
In Stock
  • 1 $0.5400
  • 10 $0.4610
  • 25 $0.4304
  • 100 $0.3444
  • 250 $0.3198
  • 500 $0.2706
  • 1,000 $0.2091
  • 2,500 $0.1907
  • 5,000 $0.1784
  • 12,500 $0.1661
  • 25,000 $0.1575
  • 62,500 $0.1538
$0.1538 / $0.5400 Buy Now
DISTI # 595-CD4040BM96
Mouser Electronics Counter ICs CMOS 12-St Ripple- Carry Bin RoHS: Compliant 3723
  • 1 $0.5200
  • 10 $0.4310
  • 100 $0.3240
  • 500 $0.2600
  • 1,000 $0.2010
  • 2,500 $0.1830
  • 10,000 $0.1590
  • 25,000 $0.1510
  • 50,000 $0.1470
$0.1470 / $0.5200 Buy Now
Ameya Holding Limited IC 12BIT BIN RIPPL COUNTR 16SOIC 2500
RFQ
CHIPMALL.COM LIMITED IC 12BIT BIN RIPPL COUNTR 16SOIC 2380
  • 10 $0.3274
  • 100 $0.2672
  • 250 $0.2415
  • 500 $0.2093
  • 2,500 $0.1831
  • 5,000 $0.1744
$0.1744 / $0.3274 Buy Now
CHIPMALL.COM LIMITED CMOS 12 / 108
  • 1 $0.1572
$0.1572 Buy Now
DISTI # 3119756
element14 Asia-Pacific IC, 12-STAGE RIPPLE CARRY COUNTER SOIC16 RoHS: Compliant Min Qty: 5 Container: Cut Tape 2320
  • 5 $0.5253
  • 10 $0.4298
  • 100 $0.3284
  • 500 $0.2748
  • 1,000 $0.1917
  • 5,000 $0.1881
  • 10,000 $0.1837
$0.1837 / $0.5253 Buy Now
DISTI # 3119756RL
element14 Asia-Pacific IC, 12-STAGE RIPPLE CARRY COUNTER SOIC16 RoHS: Compliant Min Qty: 100 Container: Reel 2320
  • 100 $0.3284
  • 500 $0.2748
  • 1,000 $0.1917
  • 5,000 $0.1881
  • 10,000 $0.1837
$0.1837 / $0.3284 Buy Now
DISTI # 3119756RL
Farnell IC, 12-STAGE RIPPLE CARRY COUNTER SOIC16 RoHS: Compliant Min Qty: 100 Lead time: 40 Weeks, 1 Days Container: Reel 2320
  • 100 $0.2597
  • 500 $0.2082
  • 1,000 $0.1468
  • 5,000 $0.1443
$0.1443 / $0.2597 Buy Now
DISTI # 3119756
Farnell IC, 12-STAGE RIPPLE CARRY COUNTER SOIC16 RoHS: Compliant Min Qty: 5 Lead time: 40 Weeks, 1 Days Container: Cut Tape 2320
  • 5 $0.4792
  • 10 $0.3864
  • 100 $0.2597
  • 500 $0.2082
  • 1,000 $0.1468
  • 5,000 $0.1443
$0.1443 / $0.4792 Buy Now

Part Details for CD4040BM96

CD4040BM96 CAD Models

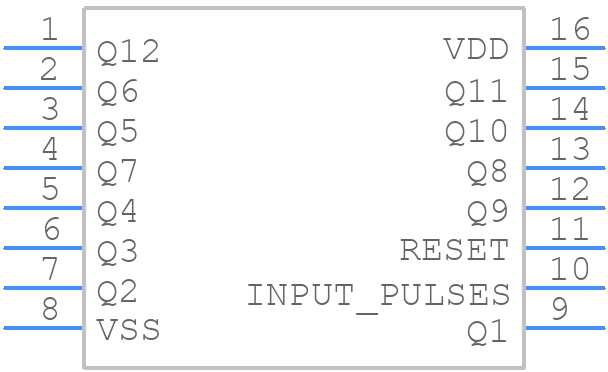

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CD4040BM96 Part Data Attributes

Parametric Data
CD4040BM96 Texas Instruments
Buy Now Datasheet
Compare Parts:
CD4040BM96 Texas Instruments CMOS 12-Stage Ripple-Carry Binary Counter/Divider 16-SOIC -55 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, PLASTIC, MS-012AC, SOIC-16
Pin Count 16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature OUTPUTS FROM 12 STAGES AVAILABLE
Count Direction UP
Family 4000/14000/40000
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 9.9 mm
Load Capacitance (CL) 50 pF
Logic IC Type BINARY COUNTER
Max Frequency@Nom-Sup 3500000 Hz
Max I(ol) 0.0015 A
Mode of Operation ASYNCHRONOUS
Moisture Sensitivity Level 1
Number of Bits 12
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.03 mA
Prop. Delay@Nom-Sup 160 ns
Propagation Delay (tpd) 360 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type NEGATIVE EDGE
Width 3.9 mm
fmax-Min 24 MHz
