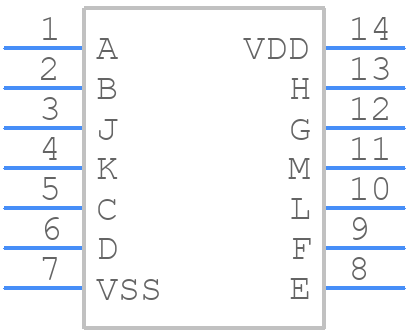

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4093BM by Texas Instruments
Overview of CD4093BM by Texas Instruments
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for CD4093BM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH3822
|
Newark | Logic, Nand Schmitt Trigger, Soic-14, Logic Family/Base Number:Cd4093, Logic Type:Nand Schmitt Trigger, Output Current:6.8Ma, No. Of Inputs:2, Supply Voltage Min:3V, Supply Voltage Max:18V, Logic Case Style:Soic, No. Of Rohs Compliant: Yes |TEXAS INSTRUMENTS CD4093BM Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 72 |
|
$1.0300 / $1.4700 | Buy Now |
|
DISTI #
296-3524-5-ND
|
DigiKey | IC GATE NAND 4CH 2-INP 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
906 In Stock |
|
$0.4607 / $1.1400 | Buy Now |
|
DISTI #
595-CD4093BM
|
Mouser Electronics | Logic Gates Quad 2In Schmit Trgr RoHS: Compliant | 8849 |
|
$0.4710 / $1.1400 | Buy Now |
|
|
Bristol Electronics | 245 |
|
RFQ | ||
|
|
Bristol Electronics | 3000 |
|
RFQ | ||
|
|
Quest Components | 4000/14000/40000 SERIES, QUAD 2-INPUT NAND GATE, PDSO14 | 16 |
|
$0.7973 / $0.9567 | Buy Now |
|
|
Quest Components | 4000/14000/40000 SERIES, QUAD 2-INPUT NAND GATE, PDSO14 | 57 |
|
$0.9567 / $1.5945 | Buy Now |
|
|
Rochester Electronics | CD4093B CMOS Quad 2-Input NAND Schmitt Triggers RoHS: Compliant Status: Active Min Qty: 1 | 7080 |
|
$0.4252 / $0.5002 | Buy Now |
|
DISTI #
CD4093BM
|
TME | IC: digital, NAND, Ch: 4, IN: 2, CMOS, SMD, SO14, CD4000 Min Qty: 1 | 1463 |
|
$0.5180 / $0.8810 | Buy Now |
|
|
Ameya Holding Limited | IC: digital, NAND, Channels: 4, IN: 2, CMOS, SMD, SO14 | 7002 |
|
RFQ |
Part Details for CD4093BM
CD4093BM CAD Models
CD4093BM Part Data Attributes
|
|
CD4093BM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4093BM
Texas Instruments
4-ch, 2-input, 3-V to 18-V NAND gates with Schmitt-Trigger inputs 14-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AB, SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NAND GATE | |
| Max I(ol) | 0.0068 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.6 mA | |
| Prop. Delay@Nom-Sup | 380 ns | |
| Propagation Delay (tpd) | 380 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for CD4093BM
This table gives cross-reference parts and alternative options found for CD4093BM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4093BM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| CD4093BM96G4 | 4-ch, 2-input, 3-V to 18-V NAND gates with Schmitt-Trigger inputs 14-SOIC -55 to 125 | Texas Instruments | CD4093BM vs CD4093BM96G4 |
| CD4093BM96 | 4-ch, 2-input, 3-V to 18-V NAND gates with Schmitt-Trigger inputs 14-SOIC -55 to 125 | Texas Instruments | CD4093BM vs CD4093BM96 |
| CD4093BCM | NAND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDSO14, 0.150 INCH, MS-012, SOIC-14 | Fairchild Semiconductor Corporation | CD4093BM vs CD4093BCM |
| CD4093BCMX_NL | NAND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDSO14, 0.150 INCH, MS-012, SOIC-14 | Fairchild Semiconductor Corporation | CD4093BM vs CD4093BCMX_NL |
| CD4093BMG4 | 4-ch, 2-input, 3-V to 18-V NAND gates with Schmitt-Trigger inputs 14-SOIC -55 to 125 | Texas Instruments | CD4093BM vs CD4093BMG4 |
| CD4093BMTE4 | 4000/14000/40000 SERIES, QUAD 2-INPUT NAND GATE, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 | Texas Instruments | CD4093BM vs CD4093BMTE4 |
| CD4093BME4 | 4000/14000/40000 SERIES, QUAD 2-INPUT NAND GATE, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 | Texas Instruments | CD4093BM vs CD4093BME4 |
| CD4093BM96E4 | 4-ch, 2-input, 3-V to 18-V NAND gates with Schmitt-Trigger inputs 14-SOIC -55 to 125 | Texas Instruments | CD4093BM vs CD4093BM96E4 |
