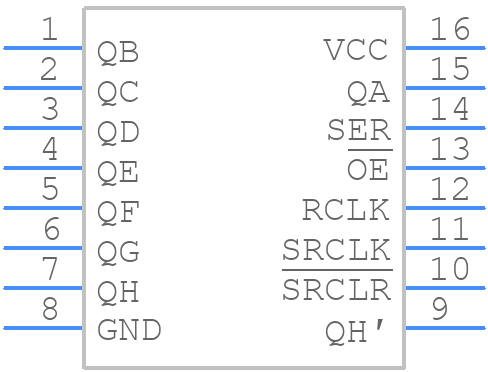

Part Symbol
-

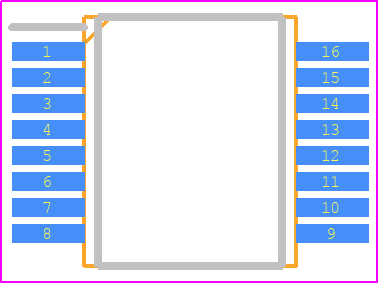

Footprint
-

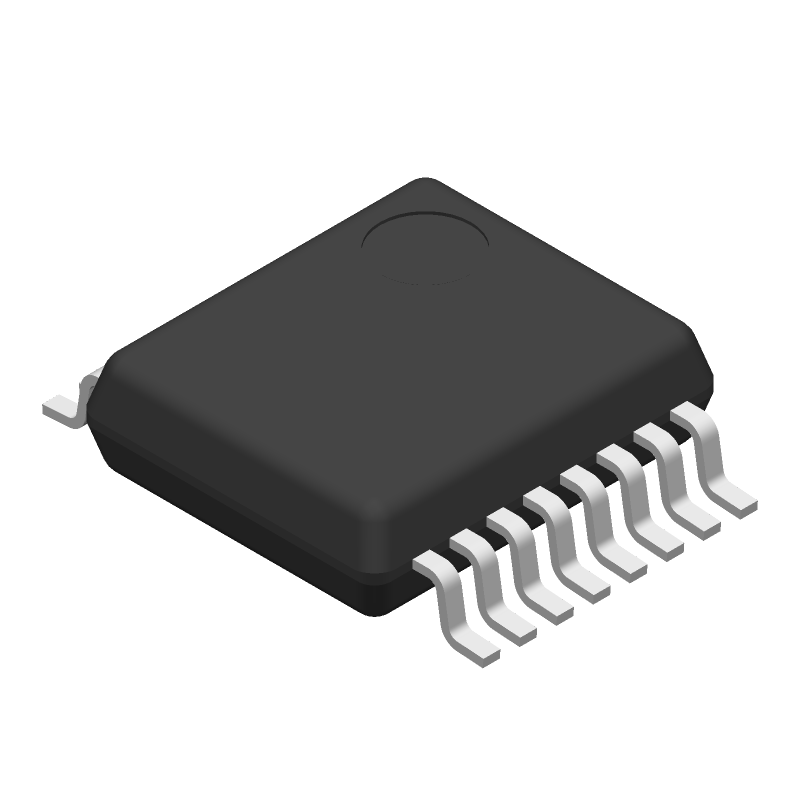

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HC595SM96 by Texas Instruments
Results Overview of CD74HC595SM96 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD74HC595SM96 Information
CD74HC595SM96 by Texas Instruments is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74HC595SM96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 8 | 279 |
|
$0.2531 / $0.6750 | Buy Now |
|
|
LCSC | 2V6V Serial-to-Serial or Parallel SSOP-16-4.4mm Shift Registers ROHS | 84 |
|
$0.5764 / $0.8706 | Buy Now |
Part Details for CD74HC595SM96
CD74HC595SM96 CAD Models
CD74HC595SM96 Part Data Attributes
|
|
CD74HC595SM96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HC595SM96
Texas Instruments
8-Bit Shift Registers With 3-State Output Registers 16-SSOP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Count Direction | RIGHT | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 6.2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | SERIAL IN PARALLEL OUT | |
| Max Frequency@Nom-Sup | 25000000 Hz | |
| Max I(ol) | 0.0078 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.16 mA | |
| Prop. Delay@Nom-Sup | 41 ns | |
| Propagation Delay (tpd) | 240 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 5.3 mm | |
| fmax-Min | 24 MHz |
Alternate Parts for CD74HC595SM96
This table gives cross-reference parts and alternative options found for CD74HC595SM96. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC595SM96, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HC595DB | Philips Semiconductors | Check for Price | Shift Register, 8-Bit, CMOS, PDSO16 | CD74HC595SM96 vs 74HC595DB |
CD74HC595SM96 Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the CD74HC595SM96 is 25 MHz.
-
Yes, the CD74HC595SM96 can operate with a 5V power supply, but it is recommended to use a 3.3V power supply for optimal performance.
-
The CD74HC595SM96 can be reset by pulling the RCLR (Reset) pin low. This will clear the shift register and output latch.
-
The propagation delay of the CD74HC595SM96 is approximately 10 ns.
-
Yes, the CD74HC595SM96 is compatible with 3.3V logic levels, making it suitable for use with microcontrollers that have 3.3V output.
