Capacitors / Ceramic Capacitors / CL05B103KA5NNNC
Datasheets
CL05B103KA5NNNC by:

Capacitor, Ceramic, Chip, General Purpose, 0.01uF, 25V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel

Part Details for CL05B103KA5NNNC by Samsung Electro-Mechanics

Results Overview of CL05B103KA5NNNC by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL05B103KA5NNNC Information

CL05B103KA5NNNC by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL05B103KA5NNNC

Part # Distributor Description Stock Price Buy
DISTI # 3775031
element14 Asia-Pacific , 0.01UF, 25V, MLCC, 0402 RoHS: Compliant Min Qty: 10 Container: Cut Tape 47215
  • 10 $0.0100
  • 100 $0.0100
  • 500 $0.0100
$0.0100 Buy Now
DISTI # CL05B103KA5NNNC
Avnet Americas Multilayer Ceramic Capacitor, 0.01 uF, 25 V, ? 10%, X7R, 0402 [1005 Metric] - Tape and Reel (Alt: CL05B103KA5NNNC) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel 150000
  • 10,000 $0.0015
  • 20,000 $0.0015
  • 40,000 $0.0014
  • 60,000 $0.0014
  • 80,000 $0.0014
$0.0014 / $0.0015 Buy Now
DISTI # CL05B103KA5NNNC
Avnet Asia Multilayer Ceramic Capacitor, 0.01 uF, 25 V, ? 10%, X7R, 0402 [1005 Metric] (Alt: CL05B103KA5NNNC) RoHS: Compliant Min Qty: 100000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days 0
  • 100,000 $0.0020
  • 200,000 $0.0020
  • 300,000 $0.0019
  • 500,000 $0.0019
  • 1,000,000 $0.0019
  • 2,500,000 $0.0018
  • 5,000,000 $0.0018
$0.0018 / $0.0020 Buy Now
Vyrian Capacitors 3776322
RFQ

Part Details for CL05B103KA5NNNC

CL05B103KA5NNNC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

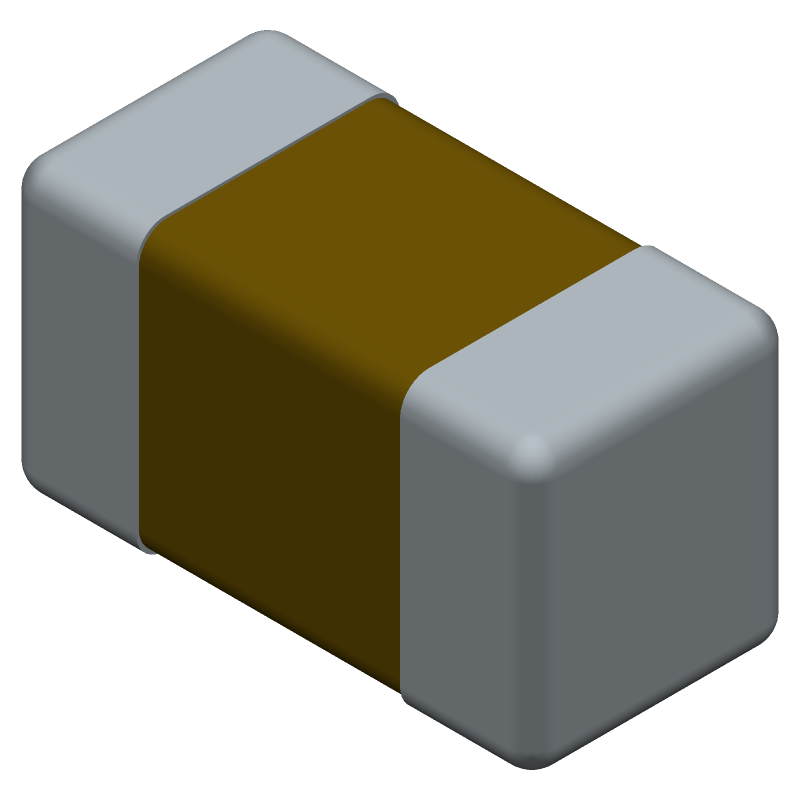

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL05B103KA5NNNC Part Data Attributes

Parametric Data
CL05B103KA5NNNC Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL05B103KA5NNNC Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 0.01uF, 25V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 0402
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 20 Weeks
Samacsys Manufacturer SAMSUNG
Capacitance 0.01 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, CARDBOARD, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 25 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for CL05B103KA5NNNC

This table gives cross-reference parts and alternative options found for CL05B103KA5NNNC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL05B103KA5NNNC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
GCG155R71E103KA01D Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT CL05B103KA5NNNC vs GCG155R71E103KA01D
C1005X7R103KFBS Darfon Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, CL05B103KA5NNNC vs C1005X7R103KFBS
CL05B103KA5ANNB Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, CL05B103KA5NNNC vs CL05B103KA5ANNB
04022R103K8B20D YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0402, CHIP CL05B103KA5NNNC vs 04022R103K8B20D
CM05X7R103K25AN KYOCERA Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, CL05B103KA5NNNC vs CM05X7R103K25AN
CC0402KPX7R8BB103 YAGEO Corporation $0.0070 Capacitor, Ceramic, Chip, General Purpose, 0.01uF, 25V, ±10%, X7R, 0402 (1005 mm), 0.022"T, -55º ~ +125ºC, 13" Reel/Paper Tape CL05B103KA5NNNC vs CC0402KPX7R8BB103
CS1005X7R103K250NB Samwha Electronics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, CL05B103KA5NNNC vs CS1005X7R103K250NB
GMC04X7R103K25NTDLF Cal-Chip Electronics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, CL05B103KA5NNNC vs GMC04X7R103K25NTDLF
CL05B103KA5GNNB Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, CL05B103KA5NNNC vs CL05B103KA5GNNB
TMK105B7103KV-F TAIYO YUDEN $0.0253 Capacitor, Ceramic, Chip, General Purpose, 0.01uF, 25V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/2mm pitch CL05B103KA5NNNC vs TMK105B7103KV-F

CL05B103KA5NNNC Related Parts

CL05B103KA5NNNC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the CL05B103KA5NNNC is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • Yes, the CL05B103KA5NNNC is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.

  • The ESR of the CL05B103KA5NNNC capacitor is typically around 50 mΩ at 100 kHz.

  • Yes, the CL05B103KA5NNNC capacitor is designed to operate in humid environments, with a moisture sensitivity level of 3.

  • The recommended storage condition for the CL05B103KA5NNNC capacitor is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%.
