Capacitors / Ceramic Capacitors / CL10A475KP8NNNC
Datasheets
CL10A475KP8NNNC by:

Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 10V, ±10%, X5R, 0603 (1608 mm), 0.031"T, -55º ~ +85ºC, 7" Reel

Part Details for CL10A475KP8NNNC by Samsung Electro-Mechanics

Results Overview of CL10A475KP8NNNC by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL10A475KP8NNNC Information

CL10A475KP8NNNC by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL10A475KP8NNNC

Part # Distributor Description Stock Price Buy
DISTI # 82AC9300
Newark Cap, 4.7Uf, 10V, Mlcc, 0603, Capacitance:4.7Μf, Voltage(Dc):10V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X5R, Product Range:Cl Series, Product Length:1.6Mm, Qualification:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL10A475KP8NNNC RoHS: Compliant Min Qty: 40000 Package Multiple: 1 Date Code: 1 Container: Reel 12000
  • 40,000 $0.0050
$0.0050 Buy Now
DISTI # 82AC9299
Newark Cap, 4.7Uf, 10V, Mlcc, 0603, Capacitance:4.7Μf, Voltage(Dc):10V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X5R, Product Range:Cl Series, Product Length:1.6Mm, Qualification:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL10A475KP8NNNC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3
  • 1 $0.0800
  • 25 $0.0220
  • 50 $0.0180
  • 100 $0.0140
  • 250 $0.0120
  • 500 $0.0110
  • 1,000 $0.0090
$0.0090 / $0.0800 Buy Now
DISTI # CL10A475KP8NNNC
Avnet Americas Multilayer Ceramic Capacitor, 4.7 uF, 10 V, ? 10%, X5R, 0603 [1608 Metric] - Tape and Reel (Alt: CL10A475KP8NNNC) RoHS: Not Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks, 0 Days Container: Reel 2388000
  • 4,000 $0.0043
  • 8,000 $0.0042
  • 16,000 $0.0042
  • 24,000 $0.0041
  • 32,000 $0.0041
$0.0041 / $0.0043 Buy Now
DISTI # CL10A475KP8NNNC
Avnet Americas Multilayer Ceramic Capacitor, 4.7 uF, 10 V, ? 10%, X5R, 0603 [1608 Metric] - Tape and Reel (Alt: CL10A475KP8NNNC) RoHS: Not Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks, 0 Days Container: Reel 2260000
  • 4,000 $0.0043
  • 8,000 $0.0042
  • 16,000 $0.0042
  • 24,000 $0.0041
  • 32,000 $0.0041
$0.0041 / $0.0043 Buy Now
Bristol Electronics   3191
RFQ
Future Electronics CL10 Series 4.7 uF 10 V �10 % Tolerance X5R SMT Multilayer Ceramic Capacitor Min Qty: 4000 Package Multiple: 4000 10420000
null
  • 4,000 $0.0050
  • 16,000 $0.0048
  • 60,000 $0.0046
  • 100,000 $0.0045
  • 200,000 $0.0043
$0.0043 / $0.0050 Buy Now
DISTI # KKS1054
Rutronik KC 4,7µF 0603 10% 10V X5R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Container: Reel Stock DE - 6652000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 4,000 $0.0048
  • 12,000 $0.0048
  • 24,000 $0.0048
  • 40,000 $0.0047
  • 120,000 $0.0047
$0.0047 / $0.0048 Buy Now
DISTI # CL10A475KP8NNNC
Avnet Asia Multilayer Ceramic Capacitor, 4.7 uF, 10 V, ? 10%, X5R, 0603 [1608 Metric] (Alt: CL10A475KP8NNNC) RoHS: Compliant Min Qty: 40000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days 0
  • 40,000 $0.0044
  • 80,000 $0.0044
  • 120,000 $0.0043
  • 200,000 $0.0043
  • 400,000 $0.0042
  • 1,000,000 $0.0040
  • 2,000,000 $0.0039
$0.0039 / $0.0044 Buy Now
Chip Stock   16100
RFQ
LCSC 10V 4.7uF X5R 10% 0603 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS 5671050
  • 50 $0.0049
  • 500 $0.0039
  • 1,500 $0.0035
  • 4,000 $0.0029
  • 24,000 $0.0028
  • 48,000 $0.0027
$0.0027 / $0.0049 Buy Now
Vyrian Capacitors 2273577
RFQ

Part Details for CL10A475KP8NNNC

CL10A475KP8NNNC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

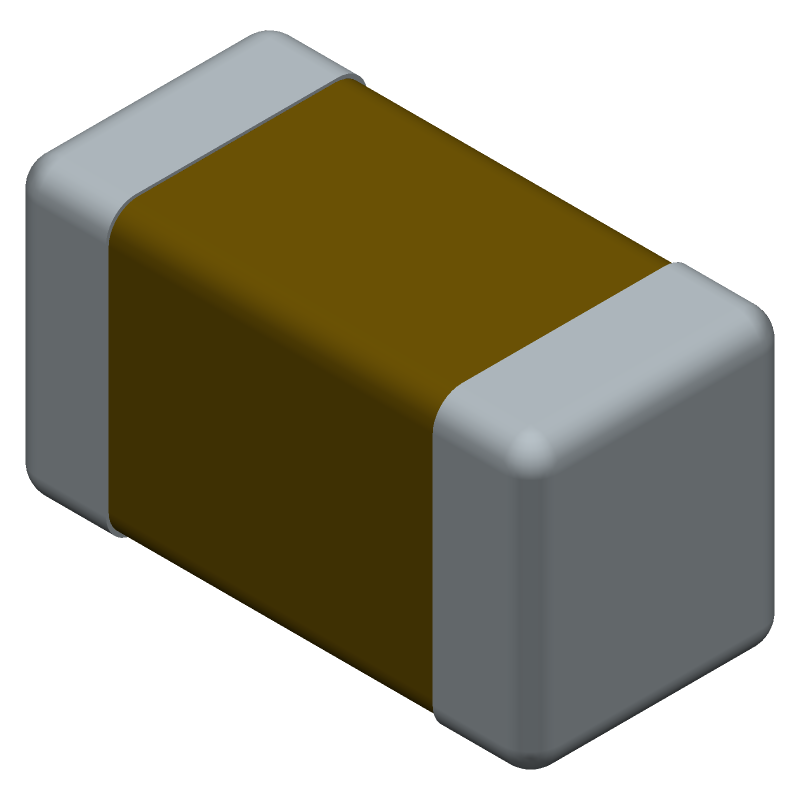

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL10A475KP8NNNC Part Data Attributes

Parametric Data
CL10A475KP8NNNC Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL10A475KP8NNNC Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 10V, ±10%, X5R, 0603 (1608 mm), 0.031"T, -55º ~ +85ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 0603
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 20 Weeks
Samacsys Manufacturer SAMSUNG
Capacitance 4.7 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.8 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, CARDBOARD PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 10 V
Size Code 0603
Surface Mount YES
Tan Delta 0.1
Temperature Characteristics Code X5R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for CL10A475KP8NNNC

This table gives cross-reference parts and alternative options found for CL10A475KP8NNNC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL10A475KP8NNNC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C1608X5R1A475K080AE TDK Corporation $0.0339 Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0603, CHIP CL10A475KP8NNNC vs C1608X5R1A475K080AE
C0603C475K8PACTU KEMET Corporation $0.0703 Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 6.3V, ±10%, X5R, 0603 (1608 mm), -55º ~ +85ºC, 7" Reel/Unmarked CL10A475KP8NNNC vs C0603C475K8PACTU
CC0603KPX5R6BB475 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT CL10A475KP8NNNC vs CC0603KPX5R6BB475
GRM188R61A475KAAJD Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT CL10A475KP8NNNC vs GRM188R61A475KAAJD
MBASL168SB5475KTNA01 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0603, CHIP CL10A475KP8NNNC vs MBASL168SB5475KTNA01
CC0603KRX5R6BB475 YAGEO Corporation $0.0546 Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 10V, ±10%, X5R, 0603 (1608 mm), 0.034"T, -55º ~ +85ºC, 7" Reel/Paper Tape CL10A475KP8NNNC vs CC0603KRX5R6BB475
MCASL168SB5475KTNA1J TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0603, CHIP CL10A475KP8NNNC vs MCASL168SB5475KTNA1J
GRM188R61A475KAAJJ Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT CL10A475KP8NNNC vs GRM188R61A475KAAJJ
MMASL168SB5475KTNA18 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0603, CHIP CL10A475KP8NNNC vs MMASL168SB5475KTNA18
MMASL168SB5475KTNA01 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0603, CHIP CL10A475KP8NNNC vs MMASL168SB5475KTNA01

CL10A475KP8NNNC Related Parts

CL10A475KP8NNNC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the CL10A475KP8NNNC capacitor is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • Yes, the CL10A475KP8NNNC capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude, and 3 axes.

  • The CL10A475KP8NNNC capacitor has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C and 60% relative humidity.

  • Yes, the CL10A475KP8NNNC capacitor meets the requirements of the AEC-Q200 standard for automotive applications, including temperature range, vibration, and humidity.

  • The ESR of the CL10A475KP8NNNC capacitor is typically around 10-20 mΩ at 100 kHz, but this value can vary depending on the frequency and operating conditions.
