Capacitors / Ceramic Capacitors / CL10C102JB8NNNC
Datasheets
CL10C102JB8NNNC by:

Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±5%, C0G/NP0, 0603 (1608 mm), 0.031"T, -55º ~ +125ºC, 7" Reel

Part Details for CL10C102JB8NNNC by Samsung Electro-Mechanics

Results Overview of CL10C102JB8NNNC by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL10C102JB8NNNC Information

CL10C102JB8NNNC by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL10C102JB8NNNC

Part # Distributor Description Stock Price Buy
DISTI # 82AC9370
Newark Cap, 1000Pf, 50V, Mlcc, 0603, Capacitance:1000Pf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:Cl Series, Product Length:1.6Mm, Msl:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL10C102JB8NNNC RoHS: Compliant Min Qty: 40000 Package Multiple: 1 Date Code: 1 Container: Reel 16000
  • 40,000 $0.0040
$0.0040 Buy Now
DISTI # 82AC9369
Newark Cap, 1000Pf, 50V, Mlcc, 0603, Capacitance:1000Pf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:Cl Series, Product Length:1.6Mm, Msl:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL10C102JB8NNNC RoHS: Compliant Min Qty: 40000 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 500 $0.0090
$0.0090 Buy Now
DISTI # CL10C102JB8NNNC
Avnet Americas Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 5%, C0G (NP0), 0603 [1608 Metric] - Tape and Reel (Alt: CL10C102JB8NNNC) RoHS: Not Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks, 0 Days Container: Reel 796000
  • 4,000 $0.0033
  • 8,000 $0.0033
  • 16,000 $0.0032
  • 24,000 $0.0032
  • 32,000 $0.0032
$0.0032 / $0.0033 Buy Now
DISTI # 82AC9370
Avnet Americas Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 5%, C0G (NP0), 0603 [1608 Metric] - Tape and Reel (Alt: 82AC9370) RoHS: Compliant Min Qty: 40000 Package Multiple: 40000 Lead time: 111 Weeks, 0 Days Container: Reel 16000 Partner Stock
  • 40,000 $0.0030
$0.0030 Buy Now
DISTI # 82AC9369
Avnet Americas Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 5%, C0G (NP0), 0603 [1608 Metric] - Tape and Reel (Alt: 82AC9369) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Reel 0
RFQ
Future Electronics CL10 Series 1 nF 50 V �5% Tolerance C0G SMT Multilayer Ceramic Capacitor Min Qty: 4000 Package Multiple: 4000 1336000
null
  • 4,000 $0.0036
  • 16,000 $0.0035
  • 60,000 $0.0033
  • 120,000 $0.0033
  • 300,000 $0.0031
$0.0031 / $0.0036 Buy Now
DISTI # KKK14247
Rutronik KC 1,0nF 0603 5% 50V NP0 RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Container: Reel Stock DE - 7596000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 4,000 $0.0036
  • 12,000 $0.0036
  • 24,000 $0.0036
  • 40,000 $0.0035
  • 160,000 $0.0035
$0.0035 / $0.0036 Buy Now
DISTI # CL10C102JB8NNNC
Avnet Asia Multilayer Ceramic Capacitor, 1000 pF, 50 V, ? 5%, C0G (NP0), 0603 [1608 Metric] (Alt: CL10C102JB8NNNC) RoHS: Compliant Min Qty: 40000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days 0
  • 40,000 $0.0037
  • 80,000 $0.0036
  • 120,000 $0.0036
  • 200,000 $0.0035
  • 400,000 $0.0034
  • 1,000,000 $0.0034
  • 2,000,000 $0.0033
$0.0033 / $0.0037 Buy Now
Vyrian Capacitors 2946222
RFQ

Part Details for CL10C102JB8NNNC

CL10C102JB8NNNC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

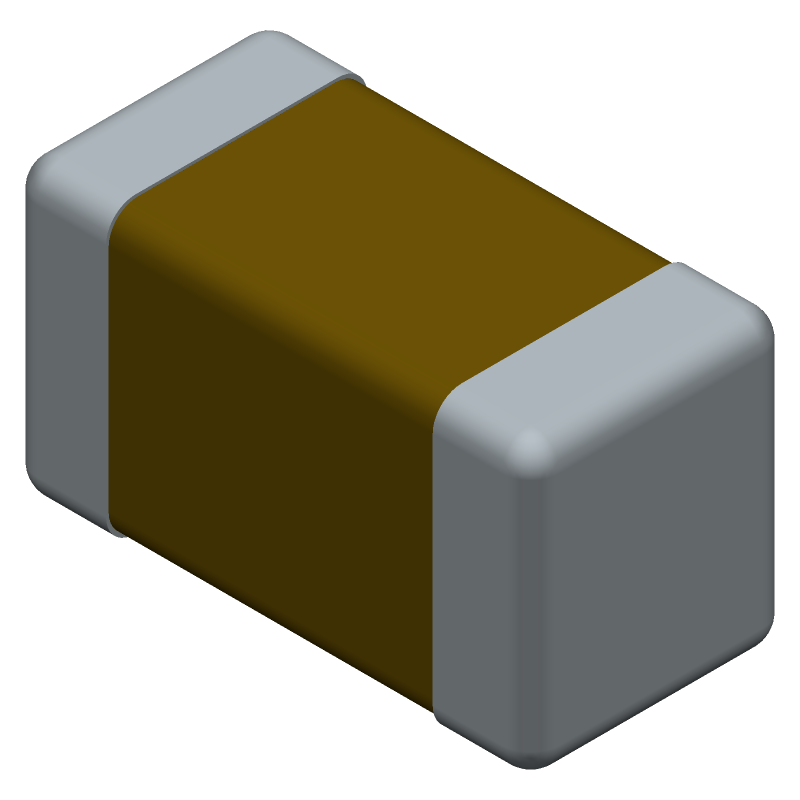

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL10C102JB8NNNC Part Data Attributes

Parametric Data
CL10C102JB8NNNC Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL10C102JB8NNNC Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±5%, C0G/NP0, 0603 (1608 mm), 0.031"T, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 0603
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 20 Weeks
Samacsys Manufacturer SAMSUNG
Capacitance 0.001 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.9 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, CARDBOARD, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for CL10C102JB8NNNC

This table gives cross-reference parts and alternative options found for CL10C102JB8NNNC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL10C102JB8NNNC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BC035A102JZB1SA1 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0603, CHIP CL10C102JB8NNNC vs BC035A102JZB1SA1
0603N102J500NHW Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF, 0603, CL10C102JB8NNNC vs 0603N102J500NHW
0603N102J500SHT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0603, CHIP CL10C102JB8NNNC vs 0603N102J500SHT
0603NPO102JC2AR American Technical Ceramics Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.001uF, 0603, CL10C102JB8NNNC vs 0603NPO102JC2AR
0603RN102J500NGT Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF, 0603, CL10C102JB8NNNC vs 0603RN102J500NGT
0603RN102J500K Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF, 0603, CL10C102JB8NNNC vs 0603RN102J500K
BC035A102JZJ6AA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0603, CHIP CL10C102JB8NNNC vs BC035A102JZJ6AA0
0603N102J500PHW-HS Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF, 0603, CL10C102JB8NNNC vs 0603N102J500PHW-HS
CE0603A-102-J050GC RCD Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF, 0603, CL10C102JB8NNNC vs CE0603A-102-J050GC
BC035A102JZT1AA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0603, CHIP CL10C102JB8NNNC vs BC035A102JZT1AA2

CL10C102JB8NNNC Related Parts

CL10C102JB8NNNC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the CL10C102JB8NNNC is 250°C for 3-5 seconds, with a peak temperature of 260°C for 1-2 seconds.

  • Yes, the CL10C102JB8NNNC is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.

  • The ESR of the CL10C102JB8NNNC is typically around 0.1 ohms, but this can vary depending on the frequency and operating conditions.

  • Yes, the CL10C102JB8NNNC is designed to operate in humid environments, with a moisture sensitivity level of 3, but it's still recommended to follow proper storage and handling procedures to prevent moisture absorption.

  • The maximum ripple current rating for the CL10C102JB8NNNC is 1.5A RMS at 100kHz, but this can vary depending on the operating conditions and temperature.
