Capacitors / Ceramic Capacitors / CL31B475KAHNNNE
Datasheets
CL31B475KAHNNNE by:

Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 25V, ±10%, X7R, 1206 (3216 mm), 0.063"T, -55º ~ +125ºC, 7" Reel

Part Details for CL31B475KAHNNNE by Samsung Electro-Mechanics

Results Overview of CL31B475KAHNNNE by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL31B475KAHNNNE Information

CL31B475KAHNNNE by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL31B475KAHNNNE

Part # Distributor Description Stock Price Buy
DISTI # 42AH1737
Newark Cap, 4.7Uf, 25V, Mlcc, 1206, Capacitance:4.7Μf, Voltage Rating:25V, Ceramic Capacitor Case:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Samsung Electro-Mechanics CL31B475KAHNNNE RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 36000
  • 2,000 $0.0420
  • 4,000 $0.0410
  • 8,000 $0.0400
  • 12,000 $0.0370
$0.0370 / $0.0420 Buy Now
DISTI # 82AC9517
Newark Cap, 4.7Uf, 25V, Mlcc, 1206, Capacitance:4.7Μf, Voltage(Dc):25V, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Product Length:3.2Mm, Qualification:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL31B475KAHNNNE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 21900
  • 1 $0.0300
  • 10 $0.0300
  • 25 $0.0300
  • 50 $0.0300
  • 100 $0.0300
$0.0300 Buy Now
DISTI # CL31B475KAHNNNE
Avnet Americas Multilayer Ceramic Capacitor, 4.7 uF, 25 V, ? 10%, X7R, 1206 [3216 Metric] - Tape and Reel (Alt: CL31B475KAHNNNE) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 20 Weeks, 0 Days Container: Reel 1034000
  • 2,000 $0.0237
  • 4,000 $0.0236
  • 8,000 $0.0235
  • 12,000 $0.0233
  • 16,000 $0.0232
$0.0232 / $0.0237 Buy Now
DISTI # CL31B475KAHNNNE
Avnet Asia Multilayer Ceramic Capacitor, 4.7 uF, 25 V, ? 10%, X7R, 1206 [3216 Metric] (Alt: CL31B475KAHNNNE) RoHS: Compliant Min Qty: 20000 Package Multiple: 2000 Lead time: 20 Weeks, 0 Days 0
  • 20,000 $0.0199
  • 40,000 $0.0197
  • 60,000 $0.0194
  • 100,000 $0.0191
  • 200,000 $0.0186
  • 500,000 $0.0181
  • 1,000,000 $0.0177
$0.0177 / $0.0199 Buy Now
LCSC 25V 4.7uF X7R 10% 1206 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS 59920
  • 20 $0.0310
  • 200 $0.0241
  • 600 $0.0203
  • 2,000 $0.0180
  • 10,000 $0.0160
  • 20,000 $0.0150
$0.0150 / $0.0310 Buy Now
DISTI # CMC1206-4700N-KX25-S
Maritex Ceramic capacitor SMD, 1206, 4.7uF, 25V, X7R, 10% Min Qty: 1 Package Multiple: 1 45
  • 1 $0.1670
  • 5 $0.1090
  • 10 $0.0830
  • 50 $0.0430
  • 100 $0.0350
  • 2,000 $0.0230
  • 8,000 $0.0220
  • 10,000 $0.0220
  • 20,000 $0.0220
  • 24,000 $0.0220
$0.0220 / $0.1670 Buy Now
Vyrian Capacitors 2189414
RFQ

Part Details for CL31B475KAHNNNE

CL31B475KAHNNNE CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

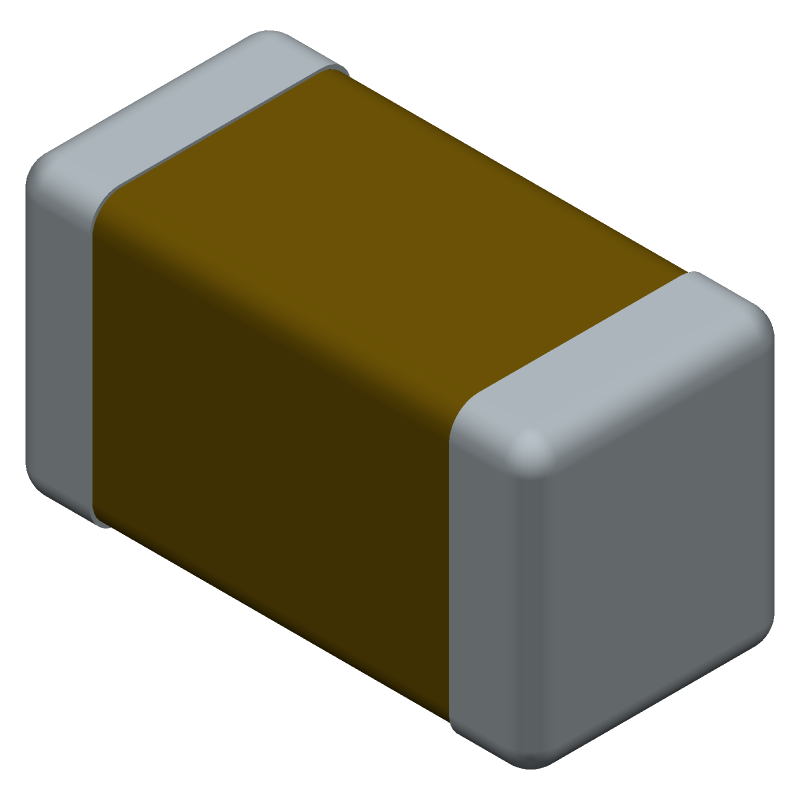

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL31B475KAHNNNE Part Data Attributes

Parametric Data
CL31B475KAHNNNE Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL31B475KAHNNNE Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 25V, ±10%, X7R, 1206 (3216 mm), 0.063"T, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 1206
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 20 Weeks
Samacsys Manufacturer SAMSUNG
Capacitance 4.7 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.8 mm
JESD-609 Code e3
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 25 V
Size Code 1206
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.6 mm

Alternate Parts for CL31B475KAHNNNE

This table gives cross-reference parts and alternative options found for CL31B475KAHNNNE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL31B475KAHNNNE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
12063C475K4T4A Kyocera AVX Components Check for Price Ceramic Capacitor, Ceramic, CL31B475KAHNNNE vs 12063C475K4T4A
CL31B475KAHNNNF Samsung Electro-Mechanics $0.0955 Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 25V, ±10%, X7R, 1206 (3216 mm), 0.063"T, -55º ~ +125ºC, 7" Reel CL31B475KAHNNNE vs CL31B475KAHNNNF
12063C475K4Z4A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 4.7uF, 1206, CL31B475KAHNNNE vs 12063C475K4Z4A
12063C475K4T2A Kyocera AVX Components Check for Price Ceramic Capacitor, Ceramic, CL31B475KAHNNNE vs 12063C475K4T2A
12063C475K4Z2A Kyocera AVX Components $0.1435 Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 4.7uF, 1206, CL31B475KAHNNNE vs 12063C475K4Z2A

CL31B475KAHNNNE Related Parts

CL31B475KAHNNNE Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile is 250°C for 3-5 seconds, with a peak temperature of 260°C for 1-2 seconds.

  • The CL31B475KAHNNNE is designed to handle high-frequency noise up to 1 GHz, making it suitable for high-speed applications.

  • The MSL of the CL31B475KAHNNNE is 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C and 60% relative humidity.

  • Yes, the CL31B475KAHNNNE meets the requirements for automotive applications, including AEC-Q200 qualification and compliance with ISO/TS 16949.

  • The ESR of the CL31B475KAHNNNE is typically around 50 mΩ at 100 kHz, making it suitable for high-frequency applications.
