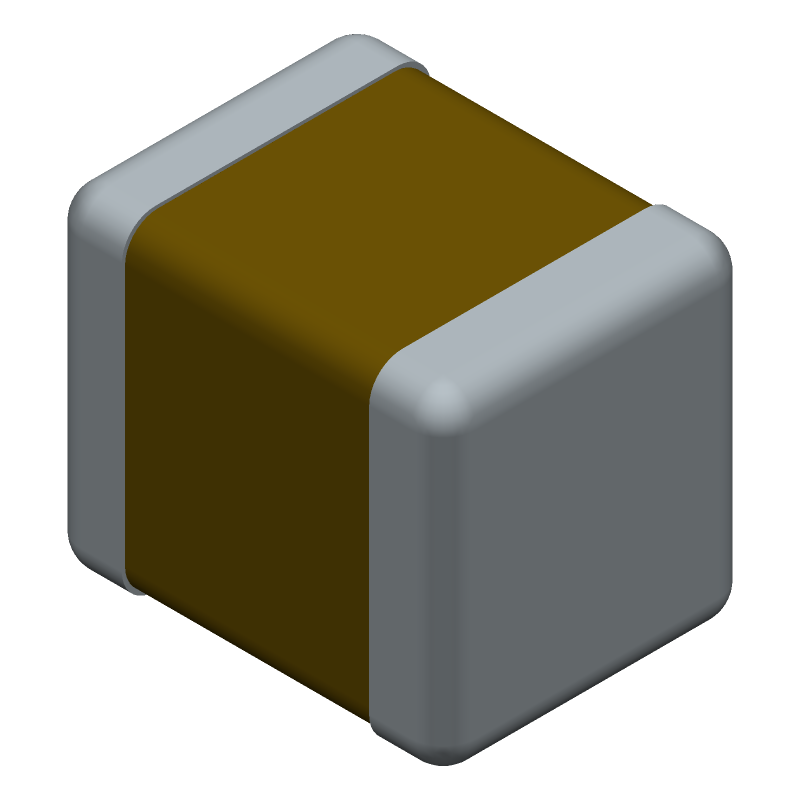

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CL32B106KAJNNNE by Samsung Electro-Mechanics
Results Overview of CL32B106KAJNNNE by Samsung Electro-Mechanics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CL32B106KAJNNNE Information
CL32B106KAJNNNE by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CL32B106KAJNNNE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82AC9529
|
Newark | Cap, 10Uf, 25V, Mlcc, 1210, Capacitance:10Μf, Voltage(Dc):25V, Capacitor Case/Package:1210 [3225 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Product Length:3.2Mm, Qualification:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL32B106KAJNNNE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 12710 |
|
$0.0930 | Buy Now |
|
DISTI #
82AC9530
|
Newark | Cap, 10Uf, 25V, Mlcc, 1210, Capacitance:10Μf, Voltage(Dc):25V, Capacitor Case/Package:1210 [3225 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Product Length:3.2Mm, Qualification:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL32B106KAJNNNE RoHS: Compliant Min Qty: 100000 Package Multiple: 1 Date Code: 1 Container: Reel | 2000 |
|
$0.0600 | Buy Now |
|
DISTI #
CL32B106KAJNNNE
|
Avnet Americas | Multilayer Ceramic Capacitor, 10 uF, 25 V, ? 10%, X7R, 1210 [3225 Metric] - Tape and Reel (Alt: CL32B106KAJNNNE) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days Container: Reel | 52000 |
|
$0.0512 / $0.0548 | Buy Now |
|
DISTI #
82AC9529
|
Avnet Americas | Multilayer Ceramic Capacitor, 10 uF, 25 V, ? 10%, X7R, 1210 [3225 Metric] - Product that comes on tape, but is not reeled (Alt: 82AC9529) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 3 Days Container: Ammo Pack | 12710 Partner Stock |
|
$0.1530 / $0.4060 | Buy Now |
|
DISTI #
82AC9530
|
Avnet Americas | Multilayer Ceramic Capacitor, 10 uF, 25 V, ? 10%, X7R, 1210 [3225 Metric] - Tape and Reel (Alt: 82AC9530) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 18 Weeks, 6 Days Container: Reel | 2000 Partner Stock |
|
$0.0710 | Buy Now |
|
|
Future Electronics | CL32 Series 10 uF 25 V �10 % Tolerance X7R SMT Multilayer Ceramic Capacitor Min Qty: 1000 Package Multiple: 1000 |
1050000 null |
|
$0.0565 / $0.0619 | Buy Now |
|
DISTI #
KKK18496
|
Rutronik | KC 10µF 1210 10% 25V X7R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Stock DE - 2182000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.0537 / $0.0547 | Buy Now |
|
DISTI #
CL32B106KAJNNNE
|
Avnet Asia | Multilayer Ceramic Capacitor, 10 uF, 25 V, ? 10%, X7R, 1210 [3225 Metric] (Alt: CL32B106KAJNNNE) RoHS: Compliant Min Qty: 10000 Package Multiple: 1000 Lead time: 22 Weeks, 0 Days | 0 |
|
$0.0366 / $0.0412 | Buy Now |
|
|
LCSC | 25V 10uF X7R 10% 1210 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS | 16090 |
|
$0.0385 / $0.0634 | Buy Now |
|
|
Vyrian | Capacitors | 139716 |
|
RFQ |
Part Details for CL32B106KAJNNNE
CL32B106KAJNNNE CAD Models
CL32B106KAJNNNE Part Data Attributes
|
|
CL32B106KAJNNNE
Samsung Electro-Mechanics
Buy Now
Datasheet
|
Compare Parts:
CL32B106KAJNNNE
Samsung Electro-Mechanics
Capacitor, Ceramic, Chip, General Purpose, 10uF, 25V, ±10%, X7R, 1210 (3225 mm), 0.098"T, -55º ~ +125ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMSUNG ELECTRO-MECHANICS | |
| Part Package Code | 1210 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 18 Weeks, 6 Days | |
| Samacsys Manufacturer | SAMSUNG | |
| Capacitance | 10 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 2.7 mm | |
| JESD-609 Code | e3 | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 25 V | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 2.5 mm |
CL32B106KAJNNNE Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is between 250°C to 260°C for a maximum of 5 seconds.
-
Yes, the CL32B106KAJNNNE is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude.
-
The capacitor is rated for operation up to 125°C, but its capacitance and ESR may degrade above 85°C.
-
Yes, the capacitor is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
Store the capacitors in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%.
