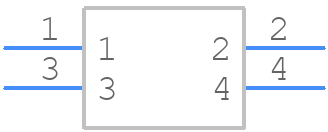

Part Symbol
-

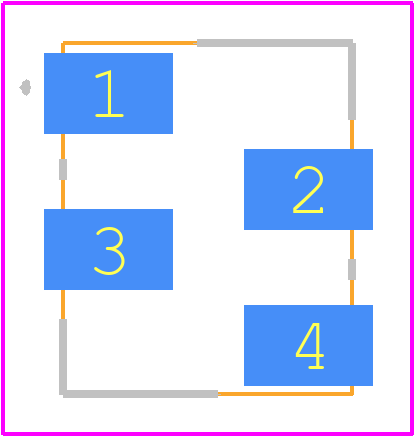

Footprint
-

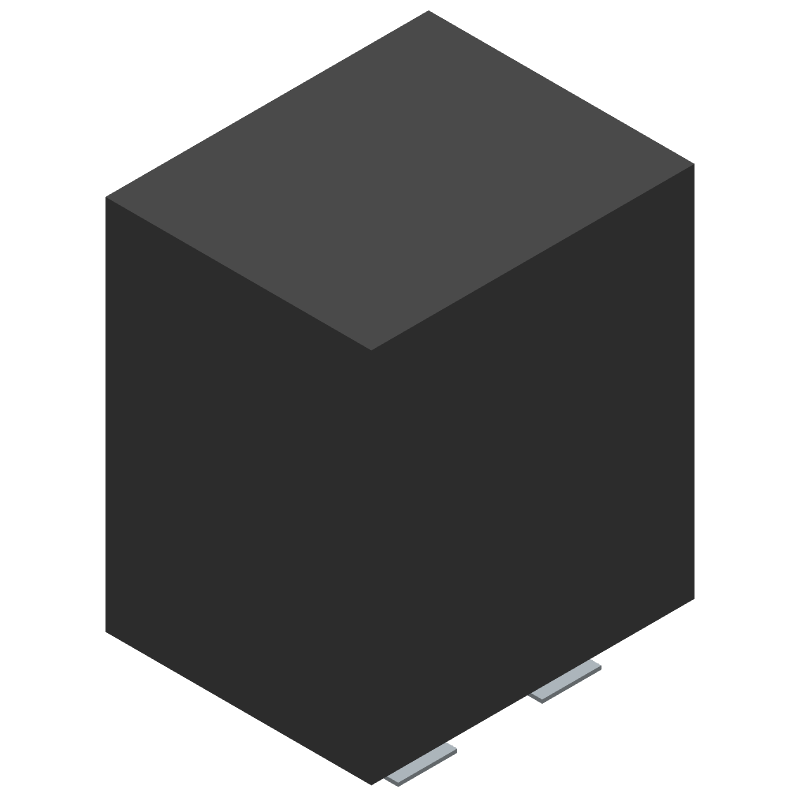

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CMF-SDP25A-2 by Bourns Inc
Results Overview of CMF-SDP25A-2 by Bourns Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CMF-SDP25A-2 Information
CMF-SDP25A-2 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CMF-SDP25A-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14P5398
|
Newark | Ceramic Ptc /Tape & Reel - 13" Reel |Bourns CMF-SDP25A-2 RoHS: Not Compliant Min Qty: 1600 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5780 / $0.7220 | Buy Now |
|
DISTI #
CMF-SDP25A-2
|
Avnet Americas | SMD Resettable Fuse, PPTC, SMD Cube, CMF-SDP, 230 V, 130 mA, 260 mA, 300 ms - Tape and Reel (Alt: CMF-SDP25A-2) RoHS: Compliant Min Qty: 1600 Package Multiple: 400 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.4167 / $0.5148 | Buy Now |
|
DISTI #
73791937
|
RS | Ceramic PTC, TR13,Tape & Reel - 13 reel Min Qty: 1600 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk | 0 |
|
$0.9000 | RFQ |
|
DISTI #
CMF-SDP25A-2
|
Avnet Abacus | SMD Resettable Fuse PPTC SMD Cube CMFSDP 230 V 130 mA 260 mA 300 ms - Tape and Reel (Alt: CMF-SDP25A-2) RoHS: Compliant Min Qty: 1600 Package Multiple: 400 Lead time: 19 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for CMF-SDP25A-2
CMF-SDP25A-2 CAD Models
CMF-SDP25A-2 Part Data Attributes
|
|
CMF-SDP25A-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
CMF-SDP25A-2
Bourns Inc
PTC Resettable Fuse, 25ohm, Surface Mount, CHIP, 3428
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP, 3428 | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Packing Method | TR, 13 INCH | |
| Resistance | 25 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Placement | DUAL IN-LINE | |
| Terminal Shape | FLAT | |
| Thermistor Application | OVERLOAD PROTECTION | |
| Tolerance | 20% |
