Resistors / Fixed Resistors / CPF-A-0603B20KE1
Datasheets
CPF-A-0603B20KE1 by: TE Connectivity

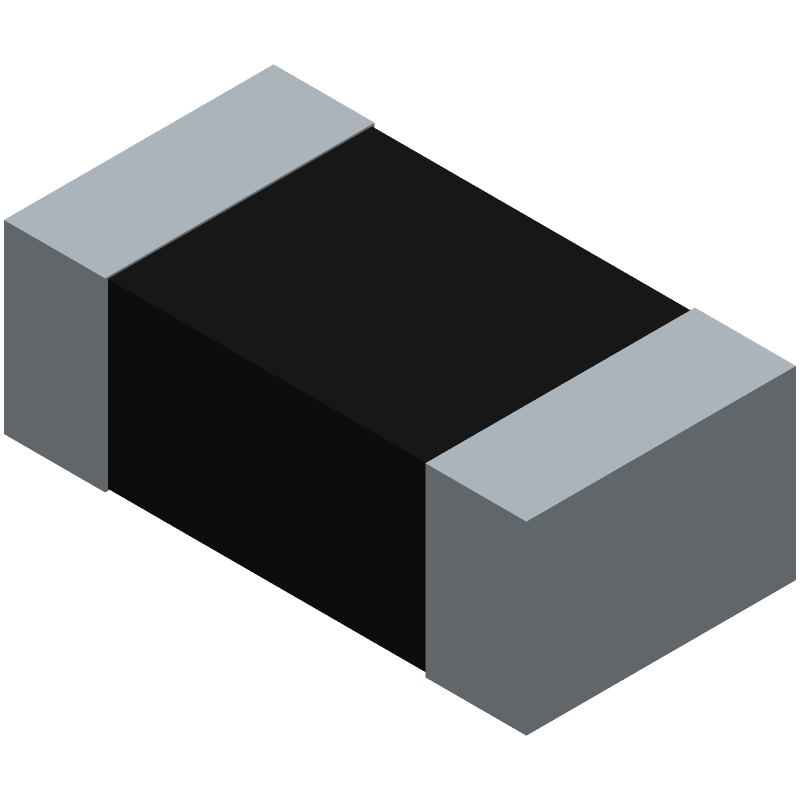

RES SMD 20K OHM 0.1% 1/16W 0603

Part Details for CPF-A-0603B20KE1 by TE Connectivity

Results Overview of CPF-A-0603B20KE1 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Energy and Power Systems Medical Imaging Entertainment and Gaming Robotics and Drones

CPF-A-0603B20KE1 Information

CPF-A-0603B20KE1 by TE Connectivity is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
74AC11086D Texas Instruments Quadruple 2-Input Exclusive-OR Gates 16-SOIC -40 to 85
74AC11244DW Texas Instruments Octal Buffers/Drivers 24-SOIC -40 to 85
74AC11245DW Texas Instruments Octal Bus Transceivers 24-SOIC -40 to 85

Price & Stock for CPF-A-0603B20KE1

Part # Distributor Description Stock Price Buy
DISTI # 52Y3144
Newark Surface Mount Chip Resistor, Thin Film, Aec-Q200 Cpf-A Series, 20 Kohm, 62.5 Mw, 0.1%, 50 V Rohs Compliant: Yes |Te Connectivity CPF-A-0603B20KE1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 236
  • 1 $0.3740
  • 10 $0.2610
  • 25 $0.2320
  • 50 $0.2030
  • 100 $0.1810
$0.1810 / $0.3740 Buy Now
DISTI # 4-2176216-7
Avnet Abacus SMD Chip Resistor 20 kOhm 01 63 mW 0603 1608 Metric Thin Film Precision (Alt: 4-2176216-7) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 11 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for CPF-A-0603B20KE1

CPF-A-0603B20KE1 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CPF-A-0603B20KE1 Part Data Attributes

Parametric Data
CPF-A-0603B20KE1 TE Connectivity
Buy Now Datasheet
Compare Parts:
CPF-A-0603B20KE1 TE Connectivity RES SMD 20K OHM 0.1% 1/16W 0603
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer TE Connectivity
Additional Feature PRECISION
Construction Rectangular
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.55 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR
Physical Dimension 1.55mm x .8mm x .45mm
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 20000 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 50 V
