Resistors / Thin Film Resistors / CPF0603B360KE
Datasheets
CPF0603B360KE by: TE Connectivity

Fixed Resistor, Thin Film, 0.063W, 360000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for CPF0603B360KE by TE Connectivity

Results Overview of CPF0603B360KE by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CPF0603B360KE Information

CPF0603B360KE by TE Connectivity is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CPF0603B360KE

Part # Distributor Description Stock Price Buy
DISTI # 01AH1697
Newark Res, 360K, 0.1%, 0.063W, 0603, Thin Film, Resistor Case Style:0603 [1608 Metric], Resistance:360Kohm, Product Range:Cpf Series, Voltage Rating:50V, Resistor Element Material:Thin Film, Power Rating:63Mw, Resistance Tolerance:± 0.1%, Rohs Compliant: Yes |Neohm Te Connectivity CPF0603B360KE RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1016
  • 10 $0.2400
  • 25 $0.2160
  • 50 $0.1910
  • 100 $0.1670
$0.1670 / $0.2400 Buy Now
DISTI # 8-1614882-1
Avnet Americas SMD Chip Resistor, 360 kOhm, ? 0.1%, 63 mW, 0603 [1608 Metric], Thin Film, High Precision High Stability - Tape and Reel (Alt: 8-1614882-1) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 2 Days Container: Reel 0
  • 5,000 $0.0764
  • 10,000 $0.0761
  • 20,000 $0.0757
  • 30,000 $0.0753
  • 40,000 $0.0749
$0.0749 / $0.0764 Buy Now
TE Connectivity CPF 0603 360K 0.1% 25PPM 5K RL Resistance Value: 360K Ω Resistor Type: Precision Resistor Element Type: Thin Film Package Size Code: 0603 Power Rating: .063 W Surface Mount Resistor | 360K Ω Precision Resistor Thin Film 0603 | Part Number: CPF0603B360KE | Internal Number: 8-1614882-1 | TE Connectivity RoHS: Compliant Min Qty: 1 9854
  • 1 $0.3000
  • 10 $0.2900
  • 25 $0.2900
  • 50 $0.2800
  • 100 $0.2700
  • 250 $0.2700
  • 500 $0.2600
  • 1,000 $0.2500
  • 2,500 $0.2500
$0.2500 / $0.3000 Buy Now
DISTI # CPF0603B360KE
TME Resistor: thin film, SMD, 0603, 360kΩ, 62.5mW, ±0.1%, -55÷155°C Min Qty: 5000 0
  • 5,000 $0.0910
$0.0910 RFQ

Part Details for CPF0603B360KE

CPF0603B360KE CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

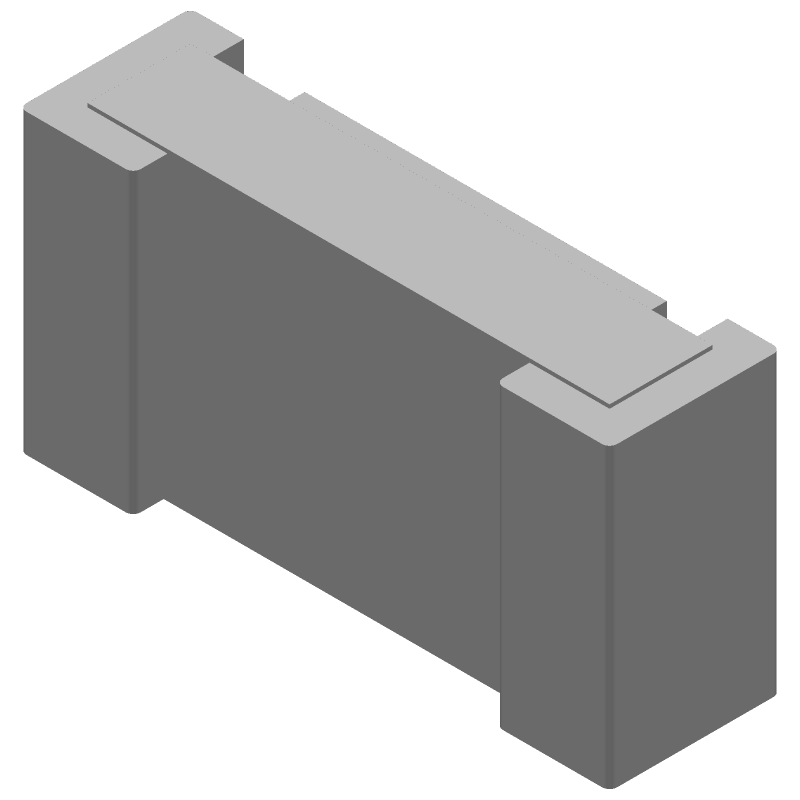

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CPF0603B360KE Part Data Attributes

Parametric Data
CPF0603B360KE TE Connectivity
Buy Now Datasheet
Compare Parts:
CPF0603B360KE TE Connectivity Fixed Resistor, Thin Film, 0.063W, 360000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 10 Weeks, 2 Days
Samacsys Manufacturer TE Connectivity
Additional Feature PRECISION
Construction Rectangular
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.55 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR
Physical Dimension 1.55mm x .8mm x .45mm
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Resistance 360000 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 50 V

Alternate Parts for CPF0603B360KE

This table gives cross-reference parts and alternative options found for CPF0603B360KE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CPF0603B360KE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TFCR0603-10W-E-3603BT VENKEL LTD Check for Price Fixed Resistor, Thin Film, 0.1W, 360000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP CPF0603B360KE vs TFCR0603-10W-E-3603BT
AR03BBC3603 Viking Tech Corp Check for Price Fixed Resistor, Thin Film, 0.25W, 360000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1210, CHIP CPF0603B360KE vs AR03BBC3603
RN73F1J3603B MERITEK Electronics Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 360000ohm, 50V, 0.1% +/-Tol, -25,25ppm/Cel, 0603, CPF0603B360KE vs RN73F1J3603B
RN73F1JTD3603B MERITEK Electronics Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 360000ohm, 50V, 0.1% +/-Tol, -25,25ppm/Cel, 0603, CPF0603B360KE vs RN73F1JTD3603B
SF06U3603BTLQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 360000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP CPF0603B360KE vs SF06U3603BTLQ
WF06U3603BALQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 360000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP CPF0603B360KE vs WF06U3603BALQ
TFCR0603-16W-E-3603BT VENKEL LTD Check for Price Fixed Resistor, Thin Film, 0.063W, 36000ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT CPF0603B360KE vs TFCR0603-16W-E-3603BT
SF06U3603ATLQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 360000ohm, 50V, 0.05% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP CPF0603B360KE vs SF06U3603ATLQ
NTR06B3603CTRF NIC Components Corp Check for Price Fixed Resistor, Thin Film, 0.063W, 360000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT CPF0603B360KE vs NTR06B3603CTRF

CPF0603B360KE Related Parts

CPF0603B360KE Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for CPF0603B360KE is between 260°C to 280°C (500°F to 536°F) for a maximum of 10 seconds.

  • Yes, CPF0603B360KE is compatible with lead-free soldering and is RoHS compliant.

  • The maximum operating temperature range for CPF0603B360KE is -55°C to 150°C (-133°F to 302°F).

  • Yes, CPF0603B360KE is designed to withstand high-vibration applications and meets the requirements of IEC 60068-2-6.

  • Yes, CPF0603B360KE is suitable for use in humid or moist environments and meets the requirements of IEC 60068-2-78.
