CPF0603B680RE1 by: TE Connectivity

Fixed Resistor, Thin Film, 0.063W, 680ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for CPF0603B680RE1 by TE Connectivity

Results Overview of CPF0603B680RE1 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CPF0603B680RE1 Information

CPF0603B680RE1 by TE Connectivity is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CPF0603B680RE1

Part # Distributor Description Stock Price Buy
DISTI # 80P3944
Newark Res, Thin Film, 680R, 0.1%, 0.063W, 0603, Resistance:680Ohm, Resistance Tolerance:± 0.1%, Power Rating:62.5Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thin Film, Resistor Type:Precision Low Tcr Rohs Compliant: Yes |Neohm Te Connectivity CPF0603B680RE1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1075
  • 1 $0.4200
  • 10 $0.2980
  • 25 $0.2660
  • 50 $0.2330
  • 100 $0.2080
$0.2080 / $0.4200 Buy Now
DISTI # 22R6595
Newark Surface Mount Thin Film Resistor, Cpf Series, 680 Ohm, 63 Mw, - 0.1%, 50 V, 0603 [1608 Metric] |Neohm Te Connectivity CPF0603B680RE1 RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1450
  • 10,000 $0.1410
  • 20,000 $0.1370
  • 40,000 $0.1330
  • 60,000 $0.1300
  • 100,000 $0.1260
$0.1260 / $0.1450 Buy Now
DISTI # 5-1676481-1
Avnet Americas SMD Chip Resistor, 680 Ohm, ? 0.1%, 63 mW, 0603 [1608 Metric], Thin Film, High Precision High Stability - Tape and Reel (Alt: 5-1676481-1) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 3 Days Container: Reel 0
  • 1,000 $0.1228
  • 2,000 $0.1180
  • 4,000 $0.1132
  • 6,000 $0.1084
  • 8,000 $0.1064
$0.1064 / $0.1228 Buy Now
TE Connectivity CPF 0603 680R 0.1% 25PPM 1K RL Resistance Value: 680 Ω Element Type: Thin Film Resistor Type: Precision Resistor Passive Component Tolerance: .1 % Package Size Code: 0603 Surface Mount Resistor | 680 Ω Thin Film Precision Resistor .1 % | Part Number: CPF0603B680RE1 | Internal Number: 5-1676481-1 | TE Connectivity RoHS: Compliant Min Qty: 1 557
  • 1 $0.3000
  • 10 $0.2900
  • 25 $0.2800
  • 50 $0.2800
  • 100 $0.2700
  • 250 $0.2600
  • 500 $0.2500
$0.2500 / $0.3000 Buy Now
DISTI # CPF0603B680RE1
TME Resistor: thin film, SMD, 0603, 680Ω, 62.5mW, ±0.1%, -55÷155°C Min Qty: 1000 0
  • 1,000 $0.1370
$0.1370 RFQ
DISTI # 5-1676481-1
Avnet Abacus SMD Chip Resistor 680 Ohm 01 63 mW 0603 1608 Metric Thin Film High Precision High Stability (Alt: 5-1676481-1) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for CPF0603B680RE1

CPF0603B680RE1 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

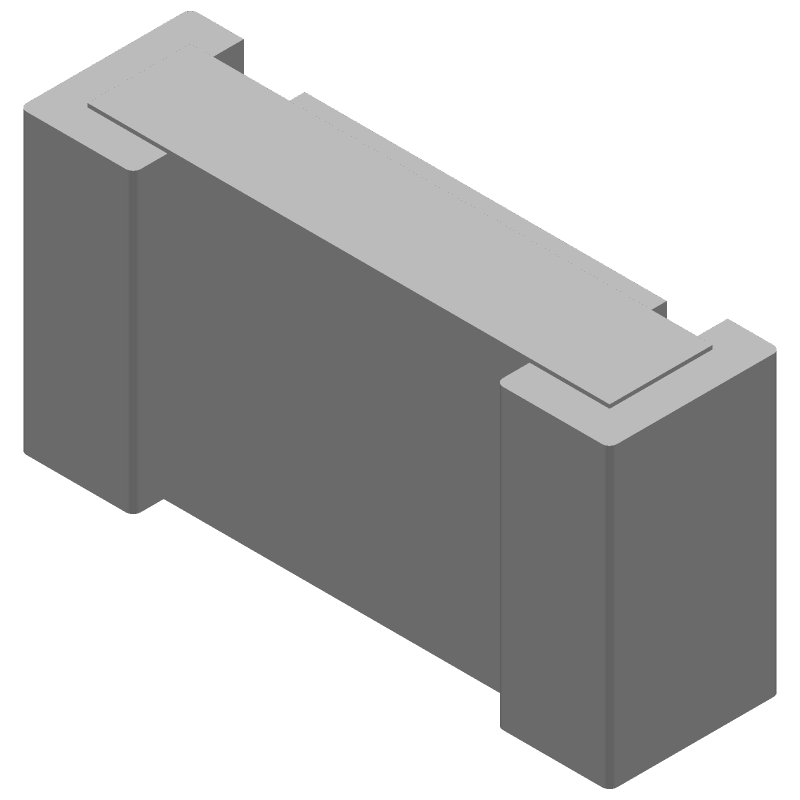

  • 3D Model
