Connectors / Headers and Edge Type Connectors / DF40C-60DP-0.4V(51)
Datasheets
DF40C-60DP-0.4V(51) by: Hirose Electric Co Ltd

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

Part Details for DF40C-60DP-0.4V(51) by Hirose Electric Co Ltd

Results Overview of DF40C-60DP-0.4V(51) by Hirose Electric Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

DF40C-60DP-0.4V(51) Information

DF40C-60DP-0.4V(51) by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for DF40C-60DP-0.4V(51)

Part # Distributor Description Stock Price Buy
DISTI # 65AK9762
Newark Mezzanine Conn, Hdr, 60Pos, 2Row, Mezzanine Connector Type:Header, Pitch Spacing:0.4Mm, No. Of Rows:2Rows, No. Of Contacts:60Contacts, Connector Mounting:Surface Mount, Contact Material:Phosphor Bronze, Product Range:Df40 Rohs Compliant: Yes |Hirose/hrs DF40C-60DP-0.4V(51) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 5577
  • 1 $0.8500
  • 10 $0.8500
  • 50 $0.7850
  • 100 $0.7850
  • 250 $0.7850
  • 500 $0.7290
  • 1,000 $0.6800
  • 2,500 $0.6380
$0.6380 / $0.8500 Buy Now
DISTI # 68X2599
Newark Stacking Board Connector, Df40 Series, Header, 0.4 Mm, 60, Surface Mount, Gold Plated Contacts Rohs Compliant: Yes |Hirose/hrs DF40C-60DP-0.4V(51) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $1.1900
  • 10 $1.0600
  • 50 $0.9650
  • 100 $0.8880
  • 250 $0.8230
  • 500 $0.7670
  • 1,000 $0.7180
  • 2,500 $0.6760
$0.6760 / $1.1900 Buy Now
DISTI # DF40C-60DP-0.4V(51)
Avnet Americas Conn Board to Board HDR 60 POS 0.4mm Solder ST SMD Embossed T/R - Tape and Reel (Alt: DF40C-60DP-0.4V(51)) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel 5000
  • 5,000 $0.6296
$0.6296 Buy Now
DISTI # HIRDF40C-60DP-0.4V(51)
Heilind Electronics 684-4003-3-51 REEL Americas - 0 in Stock
  • 5,000 $0.7969
  • 10,000 $0.7846
$0.7846 / $0.7969 Buy Now
Bristol Electronics   5003
RFQ
DISTI # DF40C-60DP-0.4V-51
TME Connector: PCB to PCB, male, PIN: 60, 0.4mm, DF40, -30÷85°C, SMT Min Qty: 5000 0
  • 5,000 $0.5470
  • 10,000 $0.5140
$0.5140 / $0.5470 RFQ
DISTI # 000000000003971684
Sager Board to Board & Mezzanine Connectors 60P SMT HEADER NO FITTING, NO BOSS Min Qty: 5000 0
  • 5,000 $0.8500
  • 25,000 $0.7300
  • 50,000 $0.6800
  • 125,000 $0.6400
$0.6400 / $0.8500 Buy Now
DISTI # SMC-DF40C-60DP-0.4V(51)
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 7368
RFQ
DISTI # CL0684-4003-3-51
Avnet Abacus Conn Board to Board HDR 60 POS 04mm Solder ST SMD Embossed TR (Alt: CL0684-4003-3-51) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # DF40C-60DP-0.4V(51)
Chip One Stop Interconnects RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 4686
  • 5 $1.1000
  • 10 $0.8980
  • 50 $0.7790
  • 100 $0.7330
  • 200 $0.6940
  • 500 $0.6350
  • 1,000 $0.5980
  • 5,000 $0.4670
  • 10,000 $0.4380
  • 80,000 $0.3890
$0.3890 / $1.1000 Buy Now
LCSC 0.4mm 2 -35+85 Vertical welding 300mA SMDP0.4mm Board-to-Board and Backplane Connector ROHS 8173
  • 1 $0.5824
  • 10 $0.4723
  • 30 $0.4240
  • 100 $0.3652
  • 500 $0.3139
  • 1,000 $0.2973
$0.2973 / $0.5824 Buy Now
Win Source Electronics CONN HDR 60POS 0.4MM SMD GOLD 4500
  • 100 $0.6027
  • 235 $0.4946
  • 365 $0.4791
  • 500 $0.4636
  • 645 $0.4483
  • 865 $0.4019
$0.4019 / $0.6027 Buy Now

Part Details for DF40C-60DP-0.4V(51)

DF40C-60DP-0.4V(51) CAD Models

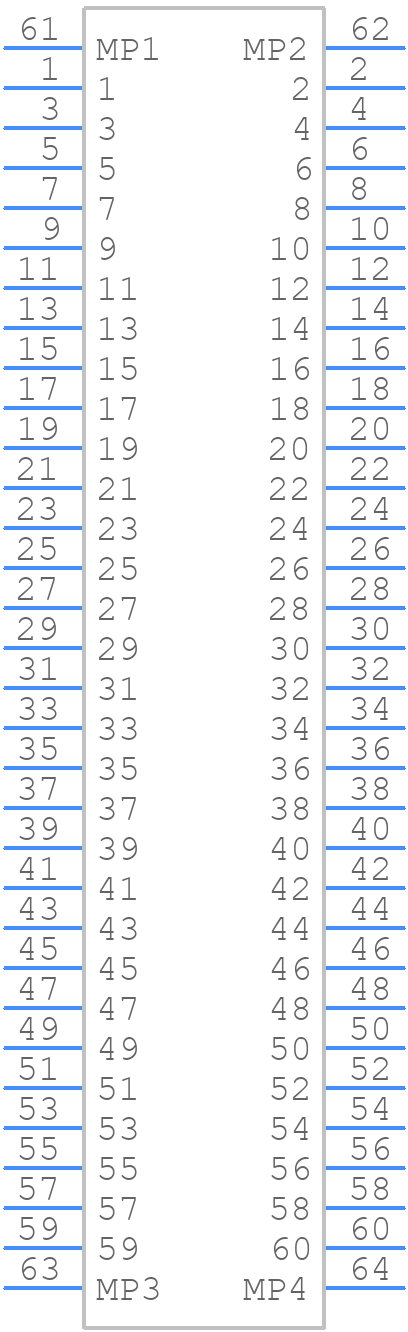

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

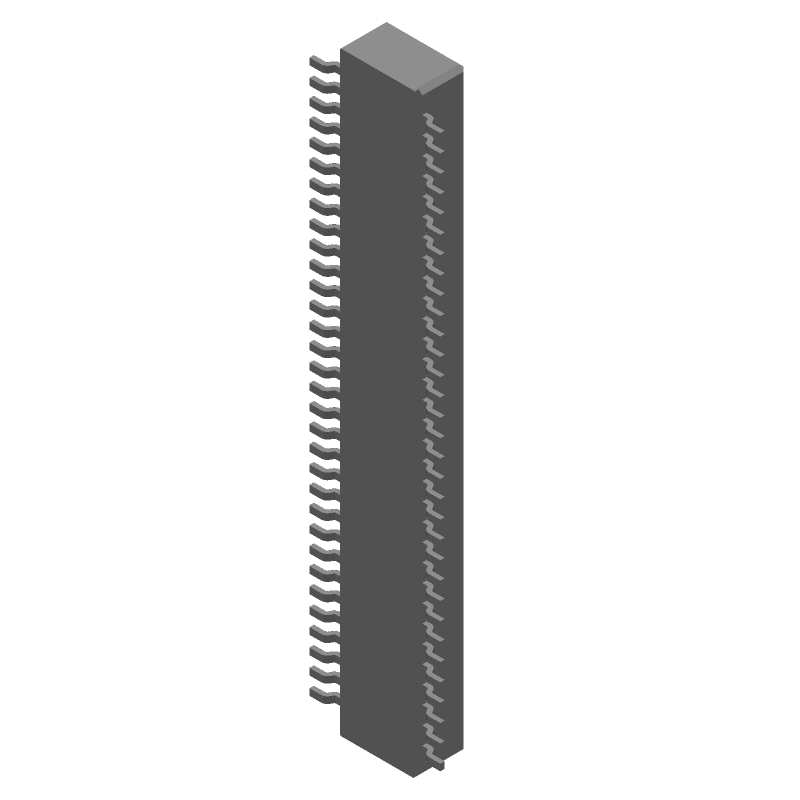

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DF40C-60DP-0.4V(51) Part Data Attributes

Parametric Data
DF40C-60DP-0.4V(51) Hirose Electric Co Ltd
Buy Now Datasheet
Compare Parts:
DF40C-60DP-0.4V(51) Hirose Electric Co Ltd Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.016 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer HIROSE ELECTRIC CO LTD
Reach Compliance Code compliant
Factory Lead Time 12 Weeks
Samacsys Manufacturer Hirose
Body Breadth 0.073 inch
Body Depth 0.045 inch
Body Length 0.532 inch
Body/Shell Style PLUG
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Gold (Au) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance 90 mΩ
Contact Style CENTRONIC
DIN Conformance NO
Dielectric Withstanding Voltage 150VAC V
Durability 30 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 50000000 Ω
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.016 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.71 mm
Rated Current (Signal) 0.3 A
Reference Standard UL
Terminal Pitch 0.4 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 60
UL Flammability Code 94V-0

DF40C-60DP-0.4V(51) Related Parts

DF40C-60DP-0.4V(51) Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow this range to ensure secure connection and prevent damage to the connector.

  • Yes, the DF40C-60DP-0.4V(51) is designed to withstand vibrations and can be used in high-vibration environments. However, it's essential to ensure proper mounting and screw locking to maintain the connection's integrity.

  • The maximum operating temperature for the DF40C-60DP-0.4V(51) is 125°C. Exceeding this temperature may affect the connector's performance and reliability.

  • The DF40C-60DP-0.4V(51) is rated for a maximum current of 1 A per pin. If your application requires higher currents, you may need to consider a different connector or consult with Hirose Electric Co Ltd for custom solutions.

  • Yes, the DF40C-60DP-0.4V(51) is designed for automated assembly and can be used with standard pick-and-place machines. However, it's essential to consult with Hirose Electric Co Ltd for specific guidance on assembly and processing.
