DP83822IRHBR by:

Low-power, robust 10/100-Mbps Ethernet PHY transceiver with 16-kV ESD 32-VQFN -40 to 85

Part Details for DP83822IRHBR by Texas Instruments

Overview of DP83822IRHBR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for DP83822IRHBR

Part # Distributor Description Stock Price Buy
Ameya Holding Limited IC TXRX ETHERNET 32VQFN 1
RFQ
DISTI # SMC-DP83822IRHBR
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 1948
RFQ
Chip 1 Exchange INSTOCK 2017
RFQ
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 5421
  • 100 $1.0700
  • 500 $0.9600
  • 1,000 $0.8600
$0.8600 / $1.0700 Buy Now
Sense Electronic Company Limited VQFN32 3000
RFQ
Win Source Electronics IC INTERFACE SPECIALIZED 32VQFN / Ethernet Interface 32-VQFN (5x5) 60020
  • 60 $0.8480
  • 145 $0.6960
  • 225 $0.6740
  • 310 $0.6530
  • 400 $0.6310
  • 535 $0.5660
$0.5660 / $0.8480 Buy Now

Part Details for DP83822IRHBR

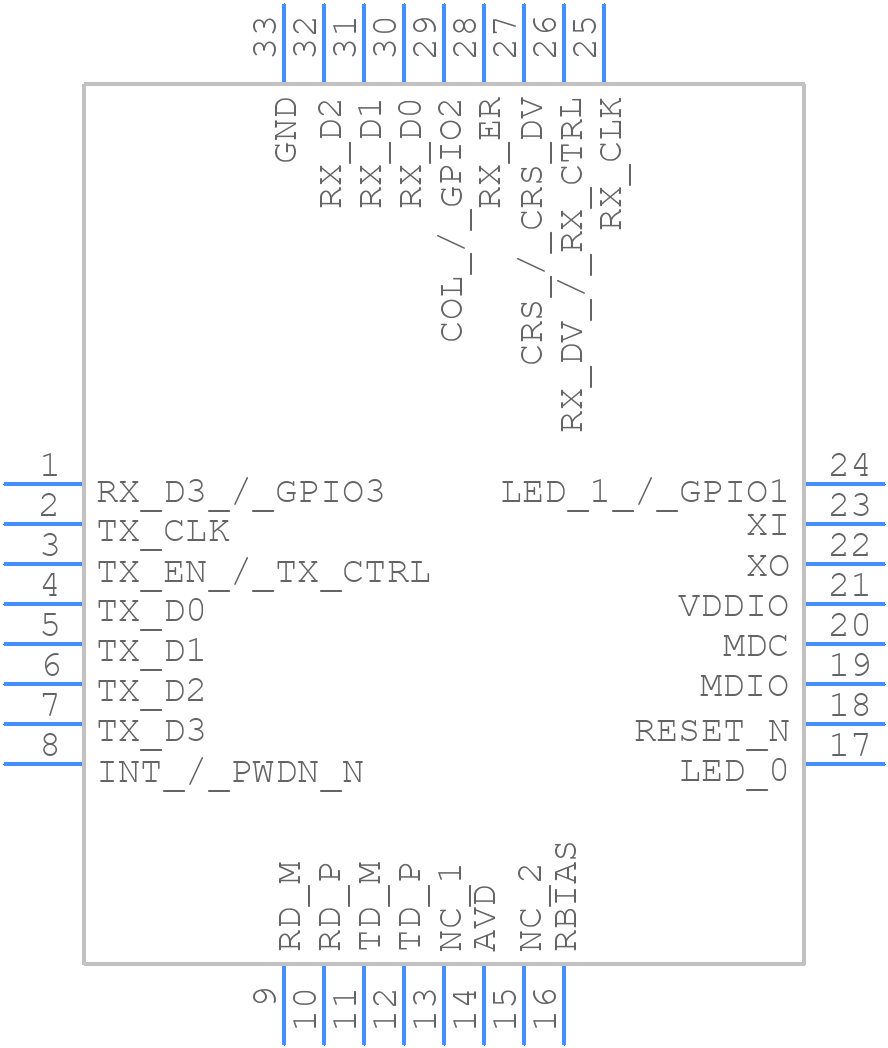

DP83822IRHBR CAD Models

DP83822IRHBR Part Data Attributes

DP83822IRHBR Texas Instruments
Buy Now Datasheet
Compare Parts:
DP83822IRHBR Texas Instruments Low-power, robust 10/100-Mbps Ethernet PHY transceiver with 16-kV ESD 32-VQFN -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description VQFN-32
Reach Compliance Code compliant
Date Of Intro 2016-07-13
Samacsys Manufacturer Texas Instruments
Data Rate 100000 Mbps
JESD-30 Code S-PQCC-N32
JESD-609 Code e4
Length 5 mm
Moisture Sensitivity Level 2
Number of Functions 1
Number of Terminals 32
Number of Transceivers 4
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Seated Height-Max 1 mm
Supply Voltage-Nom 1.8 V
Surface Mount YES
Telecom IC Type ETHERNET TRANSCEIVER
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 5 mm

Alternate Parts for DP83822IRHBR

This table gives cross-reference parts and alternative options found for DP83822IRHBR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DP83822IRHBR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
DP83822IRHBT Low-power, robust 10/100-Mbps Ethernet PHY transceiver with 16-kV ESD 32-VQFN -40 to 85 Texas Instruments DP83822IRHBR vs DP83822IRHBT
Part Number Description Manufacturer Compare
DP83822HFRHBR Extended temperature, robust 10/100-Mbps Ethernet PHY transceiver with fiber support & 16-kV ESD 32-VQFN -40 to 125 Texas Instruments DP83822IRHBR vs DP83822HFRHBR
DP83822IFRHBR Low-power, robust 10/100-Mbps Ethernet PHY transceiver with fiber support & 16-kV ESD 32-VQFN -40 to 85 Texas Instruments DP83822IRHBR vs DP83822IFRHBR
KS8721BL Ethernet Transceiver, 1-Trnsvr, CMOS, PQFP48, LQFP-48 Microchip Technology Inc DP83822IRHBR vs KS8721BL
KSZ8041FTLI-S DATACOM, ETHERNET TRANSCEIVER, PQFP48 Microchip Technology Inc DP83822IRHBR vs KSZ8041FTLI-S
DP83822IFRHBT Low-power, robust 10/100-Mbps Ethernet PHY transceiver with fiber support & 16-kV ESD 32-VQFN -40 to 85 Texas Instruments DP83822IRHBR vs DP83822IFRHBT
KSZ8041RNLI DATACOM, ETHERNET TRANSCEIVER, QCC32 Microchip Technology Inc DP83822IRHBR vs KSZ8041RNLI
KSZ8721BLI-TR DATACOM, ETHERNET TRANSCEIVER, PQFP48 Microchip Technology Inc DP83822IRHBR vs KSZ8721BLI-TR
KSZ8721-SLI-TR Ethernet Transceiver Microchip Technology Inc DP83822IRHBR vs KSZ8721-SLI-TR
KSZ8041TL-TR DATACOM, ETHERNET TRANSCEIVER, PQFP48 Microchip Technology Inc DP83822IRHBR vs KSZ8041TL-TR
KSZ8041RNLU-TR DATACOM, ETHERNET TRANSCEIVER, QCC32 Microchip Technology Inc DP83822IRHBR vs KSZ8041RNLU-TR
