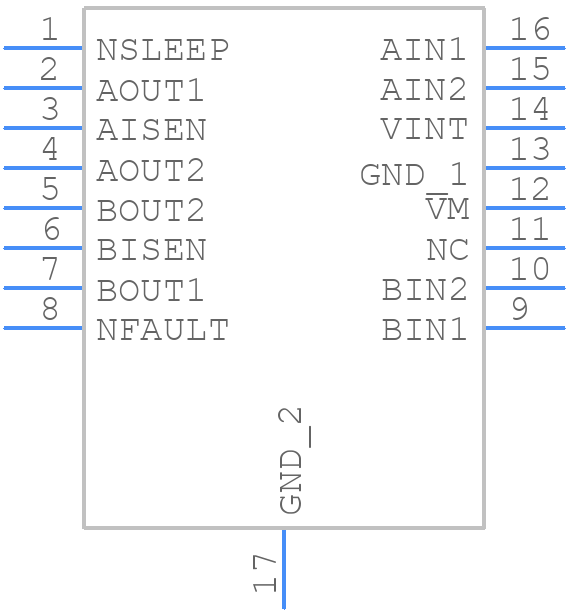

Part Symbol
-

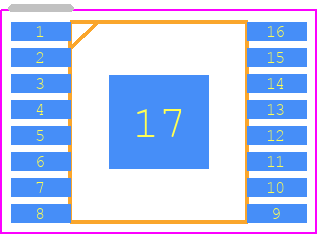

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRV8833CPWPR by Texas Instruments
Overview of DRV8833CPWPR by Texas Instruments
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Automotive
Robotics and Drones
Price & Stock for DRV8833CPWPR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-40078-1-ND
|
DigiKey | IC MOTOR DRIVER PAR Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3460 In Stock |
|
$0.7133 / $1.6800 | Buy Now |
|
DISTI #
595-DRV8833CPWPR
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers Low Vltg Stepper RoHS: Compliant | 3659 |
|
$0.7130 / $1.5500 | Buy Now |
|
|
Ameya Holding Limited | IC MOTOR DRIVER PAR | 6320 |
|
RFQ | |
|
DISTI #
3118938
|
element14 Asia-Pacific | RoHS: Compliant Min Qty: 1 Container: Cut Tape | 0 |
|
$1.6366 / $1.9595 | Buy Now |
|
DISTI #
3118938RL
|
Farnell | RoHS: Compliant Min Qty: 10 Container: Reel | 0 |
|
$1.2613 / $1.5735 | Buy Now |
|
DISTI #
3118938
|
Farnell | RoHS: Compliant Min Qty: 1 Container: Cut Tape | 0 |
|
$1.2613 / $1.8482 | Buy Now |
|
|
LCSC | TSSOP-16-EP Motor Driver ICs ROHS | 11 |
|
$0.2923 / $0.6007 | Buy Now |
|
|
Sense Electronic Company Limited | HTSSOP16 | 4000 |
|
RFQ |
Part Details for DRV8833CPWPR
DRV8833CPWPR CAD Models
DRV8833CPWPR Part Data Attributes
|
|
DRV8833CPWPR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DRV8833CPWPR
Texas Instruments
10.8-V, 1-A dual H-bridge motor driver with current regulation 16-HTSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | HTSSOP-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPERATES WITH THE RANGE OF 0V TO 5.5V SUPPLY | |
| Analog IC - Other Type | BRUSH DC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max (Isup) | 3 mA | |
| Supply Voltage-Max (Vsup) | 10.8 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm |
Alternate Parts for DRV8833CPWPR
This table gives cross-reference parts and alternative options found for DRV8833CPWPR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DRV8833CPWPR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| DRV8833PW | 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-TSSOP -40 to 85 | Texas Instruments | DRV8833CPWPR vs DRV8833PW |
| DRV8833PWR | 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-TSSOP -40 to 85 | Texas Instruments | DRV8833CPWPR vs DRV8833PWR |
| DRV8833RTYR | 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-QFN -40 to 85 | Texas Instruments | DRV8833CPWPR vs DRV8833RTYR |
| DRV8833RTYT | 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-QFN -40 to 85 | Texas Instruments | DRV8833CPWPR vs DRV8833RTYT |
| DRV8833CRTE | 1A Low Voltage Stepper or Single/Dual Brushed DC Motor Driver (PWM Ctrl) 16-WQFN -40 to 85 | Texas Instruments | DRV8833CPWPR vs DRV8833CRTE |
| DRV8833CRTER | 10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85 | Texas Instruments | DRV8833CPWPR vs DRV8833CRTER |
