Capacitors / Aluminum Electrolytic Capacitors / EEEFC1C221P
Datasheets
EEEFC1C221P by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141, ROHS COMPLIANT

Part Details for EEEFC1C221P by Panasonic Electronic Components

Results Overview of EEEFC1C221P by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare Energy and Power Systems Medical Imaging Renewable Energy Robotics and Drones

EEEFC1C221P Information

EEEFC1C221P by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for EEEFC1C221P

Part # Distributor Description Stock Price Buy
DISTI # 85Y4720
Newark Cap, 220Μf, 16V, Radial, Smd, Ae Capacitor Case:Radial Can - Smd, Capacitance:220Μf, Voltage Rating:16V, Esr:-, Product Range:Fc Series, Lifetime @ Temperature:1000 Hours @ 105°C, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Panasonic EEEFC1C221P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 46
  • 1 $0.8720
  • 10 $0.5450
  • 100 $0.3870
$0.3870 / $0.8720 Buy Now
DISTI # 42AC0734
Newark Cap, 220Μf, 16V, Radial, Smd Reel, Ae Capacitor Case:Radial Can - Smd, Capacitance:220Μf, Voltage Rating:16V, Esr:-, Product Range:Fc Series, Lifetime @ Temperature:1000 Hours @ 105°C, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Panasonic EEEFC1C221P RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 500 $0.2730
  • 1,000 $0.2620
  • 2,000 $0.2520
  • 3,000 $0.2440
$0.2440 / $0.2730 Buy Now
DISTI # EEE-FC1C221P
Avnet Americas Aluminum Electrolytic Capacitor, 220 uF, 16 V, ? 20%, 1000 hours @ 105?C, Radial Can - SMD - Tape and Reel (Alt: EEE-FC1C221P) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 21 Weeks, 0 Days Container: Reel 0
  • 500 $0.2370
  • 1,000 $0.2335
  • 2,000 $0.2300
  • 3,000 $0.2256
  • 4,000 $0.2213
$0.2213 / $0.2370 Buy Now
DISTI # 70068038
RS Capacitor, Aluminum Electrolytic, 16V 220uF G Case Fc SMT | Panasonic Electronic Components EEEFC1C221P RoHS: Compliant Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $0.7300
  • 25 $0.6800
  • 50 $0.6600
  • 125 $0.6400
  • 250 $0.6100
$0.6100 / $0.7300 RFQ
DISTI # EEEFC1C221P
TME Capacitor: electrolytic, low ESR, SMD, 220uF, 16VDC, Ø10x10.2mm Min Qty: 1 499
  • 1 $0.9740
  • 10 $0.6050
  • 50 $0.4920
  • 100 $0.4450
  • 250 $0.3830
  • 500 $0.3780
$0.3780 / $0.9740 Buy Now
DISTI # EEEFC1C221P
Avnet Abacus Aluminum Electrolytic Capacitor 220 uF 16 V 20 1000 hours 105C Radial Can SMD - Tape and Reel (Alt: EEEFC1C221P) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 17 Weeks, 0 Days Container: Reel Abacus - 4000
Buy Now
New Advantage Corporation Cap Alu SMD 220uF 20% 16V 105C 1000hrs 670mA 10x10.2 Auto Low ESR RoHS: Compliant Min Qty: 1 Package Multiple: 500 7000
  • 500 $0.3413
  • 7,000 $0.3158
$0.3158 / $0.3413 Buy Now

Part Details for EEEFC1C221P

EEEFC1C221P CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

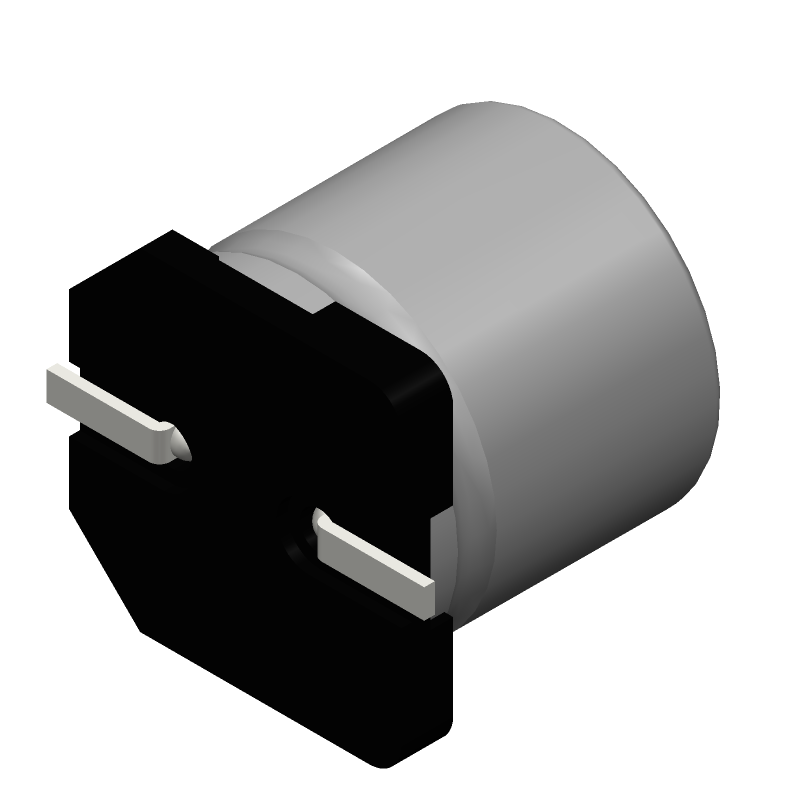

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EEEFC1C221P Part Data Attributes

Parametric Data
EEEFC1C221P Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
EEEFC1C221P Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Factory Lead Time 21 Weeks
Samacsys Manufacturer Panasonic
Capacitance 220 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 10 mm
Dielectric Material ALUMINUM (WET)
Height 10.2 mm
Leakage Current 0.0352 mA
Length 10.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED, 15 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 16 V
Reference Standard AEC-Q200
Ripple Current 502.5 mA
Size Code 4141
Surface Mount YES
Tan Delta 0.16
Terminal Shape FLAT
Width 10.3 mm

EEEFC1C221P Related Parts

EEEFC1C221P Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for EEEFC1C221P is 260°C (500°F) for 3 seconds or less.

  • Yes, EEEFC1C221P is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.

  • Yes, EEEFC1C221P is AEC-Q200 qualified, making it suitable for use in automotive applications.

  • EEEFC1C221P has a moisture sensitivity level of 3, which means it can withstand exposure to moisture for up to 168 hours.

  • Yes, EEEFC1C221P is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.
