Capacitors / Aluminum Electrolytic Capacitors / EEUEE2D101S
Datasheets
EEUEE2D101S by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for EEUEE2D101S by Panasonic Electronic Components

Results Overview of EEUEE2D101S by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Entertainment and Gaming Automotive

EEUEE2D101S Information

EEUEE2D101S by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for EEUEE2D101S

Part # Distributor Description Stock Price Buy
DISTI # 62W7615
Newark Cap, Alu Elec, 100Uf, 200V, Radial, Capacitance:100Μf, Voltage(Dc):200V, Capacitance Tolerance:± 20%, Capacitor Terminals:Radial Leaded, Lifetime @ Temperature:10000 Hours @ 105°C, Polarity:Polar, Lead Spacing:7.5Mm, Product Length:-Rohs Compliant: Yes |Panasonic EEUEE2D101S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $1.8600
  • 10 $1.3800
  • 25 $1.2300
  • 50 $1.1600
  • 100 $1.0900
  • 500 $1.0300
  • 1,000 $0.9010
  • 2,500 $0.8910
$0.8910 / $1.8600 Buy Now
DISTI # EEU-EE2D101S
Avnet Americas Aluminum Electrolytic Capacitor, 100 uF, 200 V, ? 20%, 10000 hours @ 105?C, Radial Leaded - Bulk (Alt: EEU-EE2D101S) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks, 0 Days Container: Bulk 0
  • 1 $0.7517
  • 10 $0.6890
  • 30 $0.6855
  • 50 $0.6820
  • 100 $0.6784
$0.6784 / $0.7517 Buy Now
DISTI # EEUEE2D101S
TME Capacitor: electrolytic, THT, 100uF, 200VDC, Ø18x20mm, ±20%, 10000h Min Qty: 1 0
  • 1 $1.6900
  • 5 $1.4900
  • 10 $1.3600
  • 25 $1.2800
  • 50 $1.2300
$1.2300 / $1.6900 RFQ
DISTI # EEUEE2D101S
Avnet Abacus Aluminum Electrolytic Capacitor 100 uF 200 V 20 10000 hours 105C Radial Leaded (Alt: EEUEE2D101S) RoHS: Compliant Min Qty: 500 Package Multiple: 50 Lead time: 17 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for EEUEE2D101S

EEUEE2D101S CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

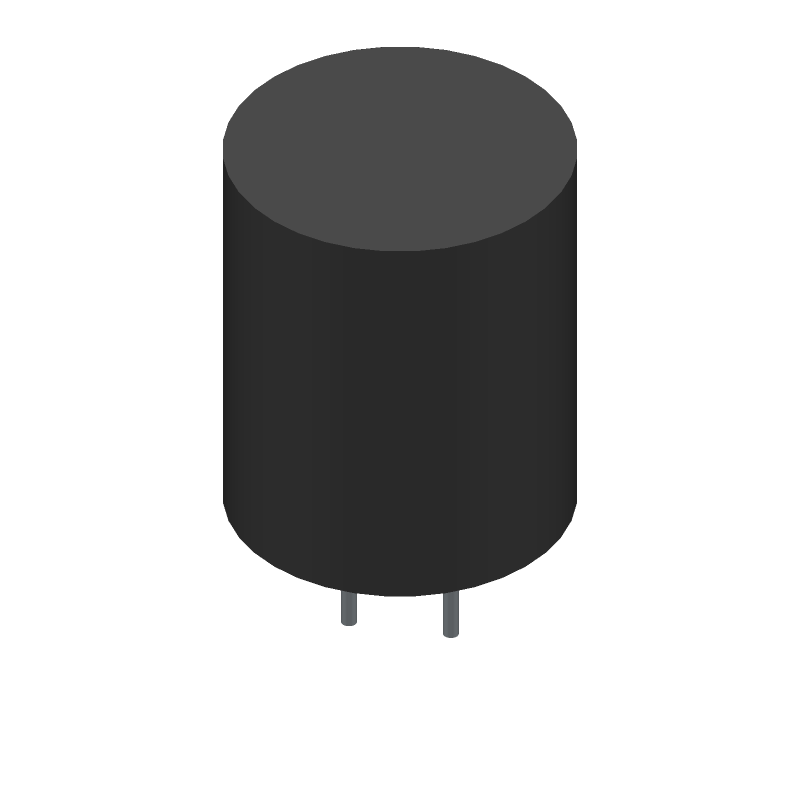

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EEUEE2D101S Part Data Attributes

Parametric Data
EEUEE2D101S Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
EEUEE2D101S Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description RADIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Factory Lead Time 21 Weeks
Samacsys Manufacturer Panasonic
Capacitance 100 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 18 mm
Dielectric Material ALUMINUM (WET)
JESD-609 Code e3
Leakage Current 1.21 mA
Length 20 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -25 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Radial
Packing Method BULK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 200 V
Ripple Current 666 mA
Surface Mount NO
Tan Delta 0.15
Terminal Finish Tin (Sn)
Terminal Pitch 7.5 mm
Terminal Shape WIRE

Alternate Parts for EEUEE2D101S

This table gives cross-reference parts and alternative options found for EEUEE2D101S. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EEUEE2D101S, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EEUED2D101SB Panasonic Electronic Components $1.0300 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, 20 MMH RADIAL LEADED, ROHS COMPLIANT EEUEE2D101S vs EEUED2D101SB
200BXA100M18X20 Rubycon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED EEUEE2D101S vs 200BXA100M18X20
8101MCM1820RB05C Fenghua (HK) Electronics Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 100uF EEUEE2D101S vs 8101MCM1820RB05C
NRBX101M200V18X20F1F NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 100uF, EEUEE2D101S vs NRBX101M200V18X20F1F
200SXW100MEFC18X20 Rubycon Corporation Check for Price CAP ALUM 100UF 20% 200V RADIAL EEUEE2D101S vs 200SXW100MEFC18X20
EKLG201EC5101MM20S Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 100uF EEUEE2D101S vs EKLG201EC5101MM20S
R0T02200104M1820 TDK Electronics Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 100uF EEUEE2D101S vs R0T02200104M1820
8101MCM1820RB01B Fenghua (HK) Electronics Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 100uF EEUEE2D101S vs 8101MCM1820RB01B
200BXA100MCE18X20 Rubycon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT EEUEE2D101S vs 200BXA100MCE18X20
HE200M101K20 Kuan Kun Electronic Enterprise Co Ltd (Su'scon) Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 100uF EEUEE2D101S vs HE200M101K20

EEUEE2D101S Related Parts

EEUEE2D101S Frequently Asked Questions (FAQ)

  • Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a preheating temperature of 150°C (302°F) to 180°C (356°F) for 60 seconds to 120 seconds.

  • The EEUEE2D101S is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for high-frequency circuits and can help reduce electromagnetic interference (EMI).

  • Yes, the EEUEE2D101S is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature resistance, and resistance to vibration and shock.

  • Panasonic recommends a shelf life of 2 years from the date of shipment, as long as the capacitors are stored in their original packaging and under normal storage conditions (temperature: 5°C to 30°C, humidity: 60% or less).

  • Yes, the EEUEE2D101S is rated for operation up to 125°C (257°F), making it suitable for high-temperature applications. However, the capacitor's lifespan may be affected by prolonged exposure to high temperatures.
