Connectors / Headers and Edge Type Connectors / EJH-125-01-F-D-TH
Datasheets
EJH-125-01-F-D-TH by: Samtec Inc

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle, ROHS COMPLIANT

Part Details for EJH-125-01-F-D-TH by Samtec Inc

Results Overview of EJH-125-01-F-D-TH by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

EJH-125-01-F-D-TH Information

EJH-125-01-F-D-TH by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for EJH-125-01-F-D-TH

Part # Distributor Description Stock Price Buy
DISTI # 91P6942
Newark Header, 2.54Mm, 2X25 Position, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:50Contacts, Contact Termination Type:Through Hole, Product Range:Ejh Series, Connector Shroud:Shrouded Rohs Compliant: Yes |Samtec EJH-125-01-F-D-TH RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $8.4300
  • 10 $8.1100
  • 25 $7.7900
  • 50 $7.3600
  • 100 $7.1000
  • 250 $5.6900
$5.6900 / $8.4300 Buy Now
DISTI # EJH-125-01-F-D-TH
Avnet Americas Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 50 Contacts, Through Hole, EJH Series - Rail/Tube (Alt: EJH-125-01-F-D-TH) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 6 Days Container: Tube 0
  • 1 $8.2614
  • 10 $7.8293
  • 30 $7.3161
  • 50 $7.0983
  • 100 $5.4720
$5.4720 / $8.2614 Buy Now
DISTI # 91P6942
Avnet Americas Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 50 Contacts, Through Hole, EJH Series - Bulk (Alt: 91P6942) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk 0
RFQ
DISTI # 000000000001291989
Sager Headers & Wire Housings .100 Shrouded IDC Ejector Header Min Qty: 1 0
  • 1 $8.6900
  • 10 $8.0300
  • 25 $7.5900
  • 50 $7.3200
  • 100 $5.7000
  • 500 $5.1600
$5.1600 / $8.6900 Buy Now
DISTI # EJH-125-01-F-D-TH
Avnet Abacus Pin Header WiretoBoard 254 mm 2 Rows 50 Contacts Through Hole EJH Series (Alt: EJH-125-01-F-D-TH) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for EJH-125-01-F-D-TH

EJH-125-01-F-D-TH CAD Models

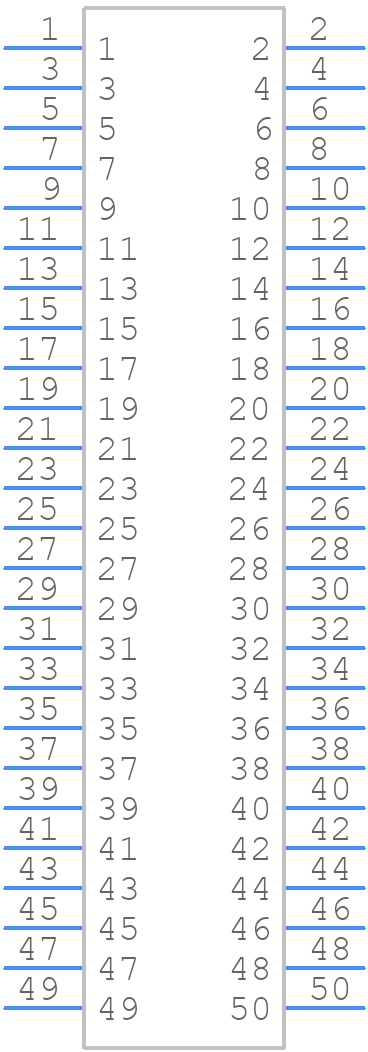

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

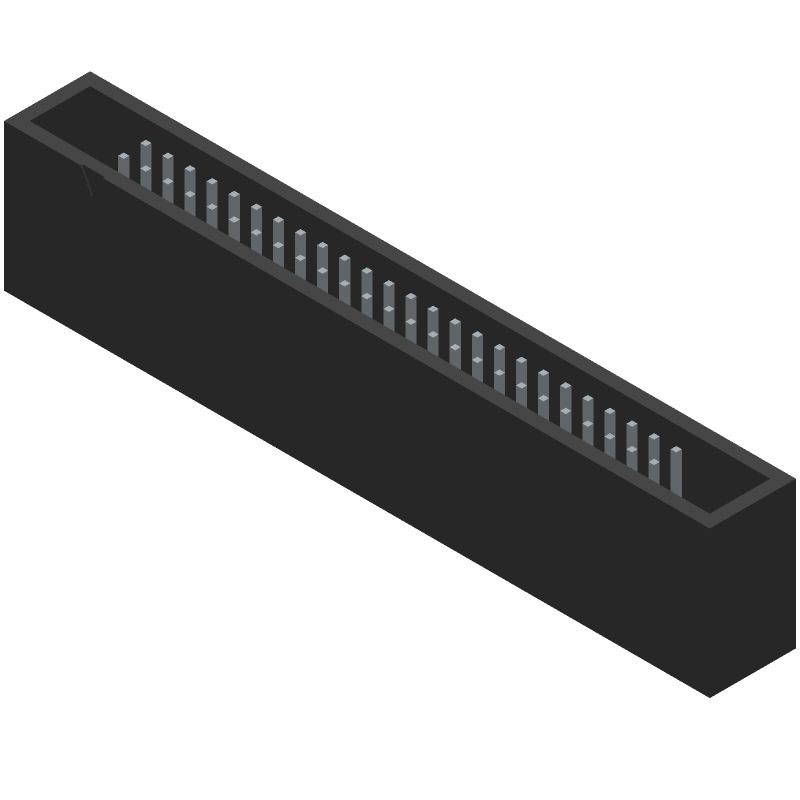

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EJH-125-01-F-D-TH Part Data Attributes

Parametric Data
EJH-125-01-F-D-TH Samtec Inc
Buy Now Datasheet
Compare Parts:
EJH-125-01-F-D-TH Samtec Inc Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 3 Weeks, 6 Days
Samacsys Manufacturer SAMTEC
Additional Feature POLARIZED, SHROUDED
Board Mounting Option SPLIT BOARD LOCK
Body Breadth 0.39 inch
Body Depth 0.5 inch
Body Length 3.194 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD FLASH OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LATCH & EJECT
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Plating Thickness FLASH inch
Polarization Key POLARIZED HOUSING
Terminal Length 0.12 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 50

Alternate Parts for EJH-125-01-F-D-TH

This table gives cross-reference parts and alternative options found for EJH-125-01-F-D-TH. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EJH-125-01-F-D-TH, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
10066744-050 Amphenol Communications Solutions $10.6523 10066744-050-STRAIGHT HEADER EJH-125-01-F-D-TH vs 10066744-050
TFML-125-02-S-D-P-FR Samtec Inc $4.2705 Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, EJH-125-01-F-D-TH vs TFML-125-02-S-D-P-FR
TFML-125-02-L-D-A Samtec Inc $6.2475 Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, EJH-125-01-F-D-TH vs TFML-125-02-L-D-A
TFML-125-01-S-D-RA Samtec Inc $7.2138 Board Stacking Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT EJH-125-01-F-D-TH vs TFML-125-01-S-D-RA
71979-350LF Amphenol Communications Solutions Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle, ROHS COMPLIANT EJH-125-01-F-D-TH vs 71979-350LF
10066744-050 Amphenol FCi Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Black Insulator EJH-125-01-F-D-TH vs 10066744-050
EJH-125-02-F-D-SM Samtec Inc Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Latch & Eject, Natural Insulator, EJH-125-01-F-D-TH vs EJH-125-02-F-D-SM
374722 ERNI Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder and Surface Mount Terminal, Locking, Receptacle EJH-125-01-F-D-TH vs 374722
TSM-125-01-F-DH-P Samtec Inc Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, EJH-125-01-F-D-TH vs TSM-125-01-F-DH-P
TSM-125-02-S-DV-P-TR Samtec Inc Check for Price Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, EJH-125-01-F-D-TH vs TSM-125-02-S-DV-P-TR

EJH-125-01-F-D-TH Related Parts

EJH-125-01-F-D-TH Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.

  • Yes, the EJH-125-01-F-D-TH is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g.

  • The EJH-125-01-F-D-TH is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult Samtec's environmental specifications and application notes for specific guidance on using this connector in harsh environments.

  • The EJH-125-01-F-D-TH has a mating cycle life of at least 500 cycles, according to Samtec's specifications. This means it can withstand repeated connections and disconnections without compromising its performance.

  • While it's technically possible to use a different wire gauge, it's not recommended. The EJH-125-01-F-D-TH is designed to work with wire gauges between 24 AWG and 30 AWG. Using a different gauge may affect the connector's performance, reliability, and durability.
