Programmable Logic / Field Programmable Gate Arrays / EP4CE6F17C8N
Datasheets
EP4CE6F17C8N by:

Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256

Part Details for EP4CE6F17C8N by Intel Corporation

Results Overview of EP4CE6F17C8N by Intel Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Computing and Data Storage

EP4CE6F17C8N Information

EP4CE6F17C8N by Intel Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for EP4CE6F17C8N

Part # Distributor Description Stock Price Buy
Ameya Holding Limited IC FPGA 179 I/O 256FBGA 2222
RFQ
DISTI # SMC-EP4CE6F17C8N
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: 2307 Container: Trays 2219
RFQ
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 2160
  • 1 $19.2400
  • 10 $10.3600
  • 90 $7.4000
$7.4000 / $19.2400 Buy Now

Part Details for EP4CE6F17C8N

EP4CE6F17C8N CAD Models

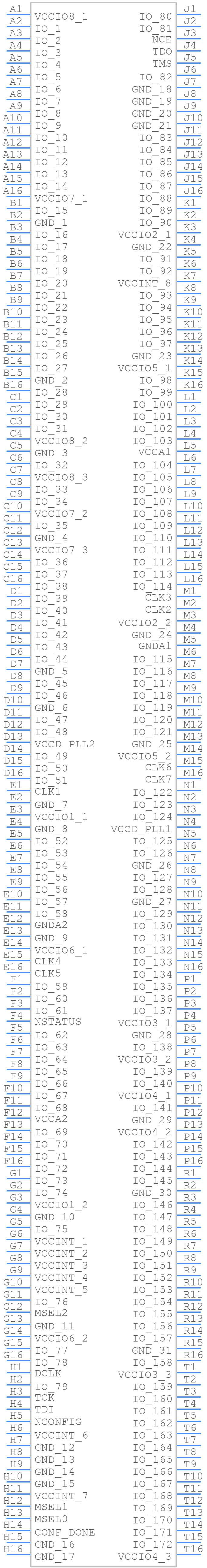

  • Part Symbol

    Part Symbol

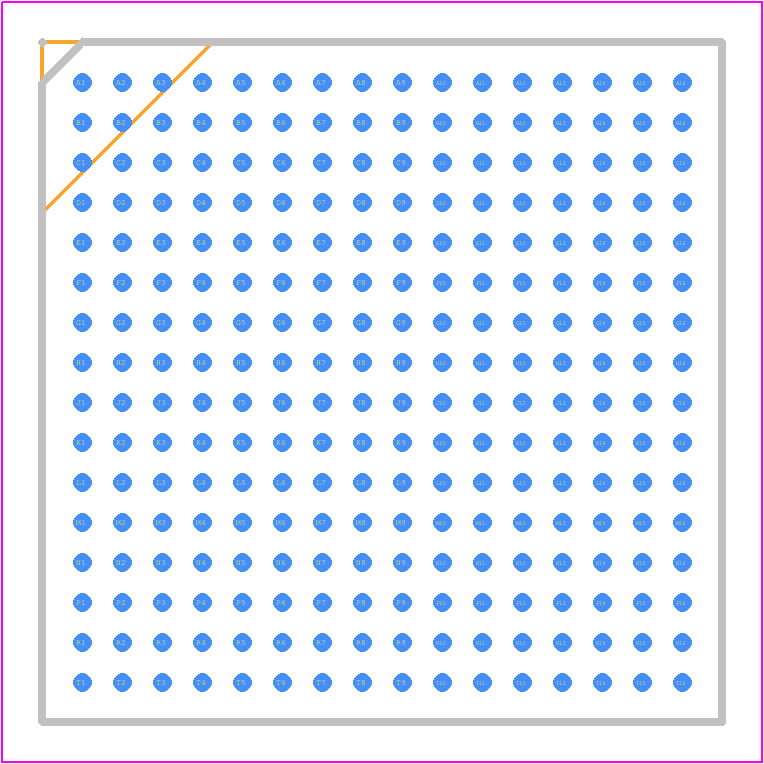

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EP4CE6F17C8N Part Data Attributes

Parametric Data
EP4CE6F17C8N Intel Corporation
Buy Now Datasheet
Compare Parts:
EP4CE6F17C8N Intel Corporation Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEL CORP
Package Description 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Intel
Clock Frequency-Max 472.5 MHz
JESD-30 Code S-PBGA-B256
JESD-609 Code e1
Length 17 mm
Moisture Sensitivity Level 3
Number of CLBs 392
Number of Inputs 179
Number of Logic Cells 6272
Number of Outputs 179
Number of Terminals 256
Operating Temperature-Max 85 °C
Operating Temperature-Min
Organization 392 CLBS
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA256,16X16,40
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel) 260
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 1.55 mm
Supply Voltage-Max 1.25 V
Supply Voltage-Min 1.15 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Temperature Grade OTHER
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 17 mm

Alternate Parts for EP4CE6F17C8N

This table gives cross-reference parts and alternative options found for EP4CE6F17C8N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EP4CE6F17C8N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EP4CE6F17C6 Altera Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE6F17C8N vs EP4CE6F17C6
EP4CE6F17I7N Altera Corporation $6.3935 Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE6F17C8N vs EP4CE6F17I7N
EP4CE6F17C7 Altera Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE6F17C8N vs EP4CE6F17C7
EP4CE6F17C8 Intel Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE6F17C8N vs EP4CE6F17C8
EP4CE6F17A7N Altera Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE6F17C8N vs EP4CE6F17A7N
EP4CE6F17I7 Altera Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE6F17C8N vs EP4CE6F17I7
EP4CE6F17C6N Altera Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE6F17C8N vs EP4CE6F17C6N
EP4CE6F17A7N Intel Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE6F17C8N vs EP4CE6F17A7N
EP4CE6F17I7 Intel Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, FBGA-256 EP4CE6F17C8N vs EP4CE6F17I7
EP4CE6F17I7N Intel Corporation Check for Price Field Programmable Gate Array, 392 CLBs, 472.5MHz, 6272-Cell, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256 EP4CE6F17C8N vs EP4CE6F17I7N

EP4CE6F17C8N Related Parts

EP4CE6F17C8N Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the EP4CE6F17C8N is -40°C to 100°C.

  • To implement a clock domain crossing (CDC) in the EP4CE6F17C8N, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity and prevent metastability issues.

  • The recommended power-on reset (POR) circuit for the EP4CE6F17C8N is a simple RC circuit with a 1 kΩ resistor and a 10 μF capacitor, which provides a minimum reset pulse width of 10 ms.

  • To optimize the EP4CE6F17C8N for low power consumption, use the Intel Quartus II software to enable the 'Low Power Synthesis' option, and implement power-gating techniques, such as clock gating and voltage scaling.

  • The maximum current rating for the EP4CE6F17C8N is 500 mA for the core voltage (VCC) and 100 mA for the auxiliary voltage (VCCAUX).
