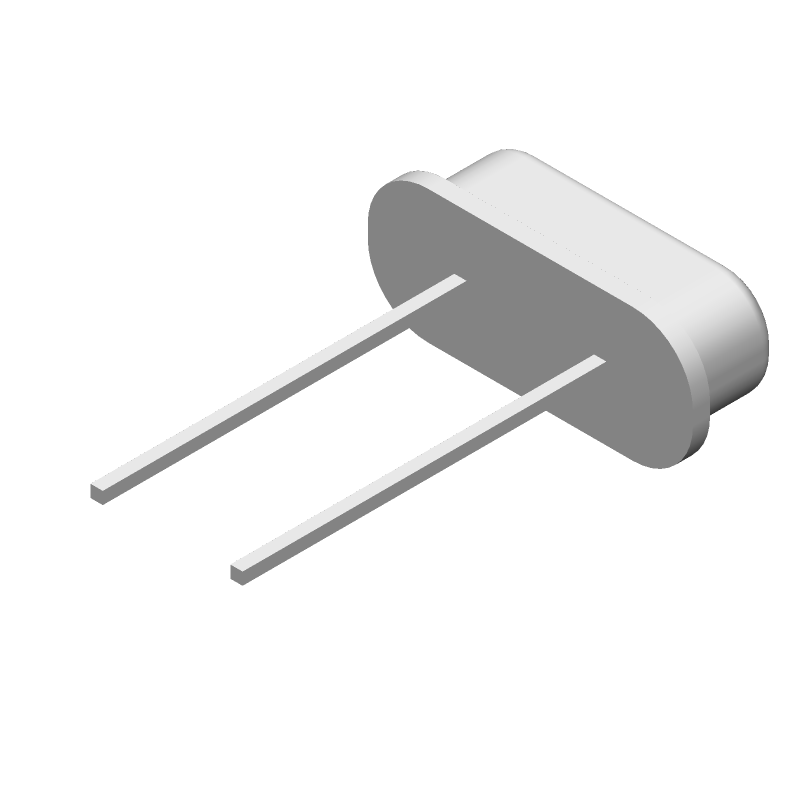

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FOXSLF/160-20 by Fox Electronics
Results Overview of FOXSLF/160-20 by Fox Electronics
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Industrial Automation
Energy and Power Systems
Renewable Energy
FOXSLF/160-20 Information
FOXSLF/160-20 by Fox Electronics is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Price & Stock for FOXSLF/160-20
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70025614
|
RS | Oscillator, Crystal,16MHz, HC-49S, TH,+/-30ppm,-20 to +70ppm,40 Ohms, Fund.,20pF Min Qty: 200 Package Multiple: 1 Container: Bulk | 379 |
|
$1.6300 / $1.9200 | Buy Now |
|
|
Vyrian | Crystals & Resonators | 997 |
|
RFQ |
Part Details for FOXSLF/160-20
FOXSLF/160-20 CAD Models
FOXSLF/160-20 Part Data Attributes
|
|
FOXSLF/160-20
Fox Electronics
Buy Now
Datasheet
|
Compare Parts:
FOXSLF/160-20
Fox Electronics
Parallel - Fundamental Quartz Crystal, 16MHz Nom,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | FOX ELECTRONICS | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.60.00.50 | |
| Samacsys Manufacturer | Fox | |
| Aging | 5 PPM/YEAR | |
| Crystal/Resonator Type | PARALLEL - FUNDAMENTAL | |
| Drive Level | 500 µW | |
| Frequency Stability | 0.005% | |
| Frequency Tolerance | 30 ppm | |
| JESD-609 Code | e1 | |
| Load Capacitance | 20 pF | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Operating Frequency-Nom | 16 MHz | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Physical Dimension | L11.35XB4.65XH3.6 (mm) | |
| Surface Mount | NO | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) - hot dipped |
