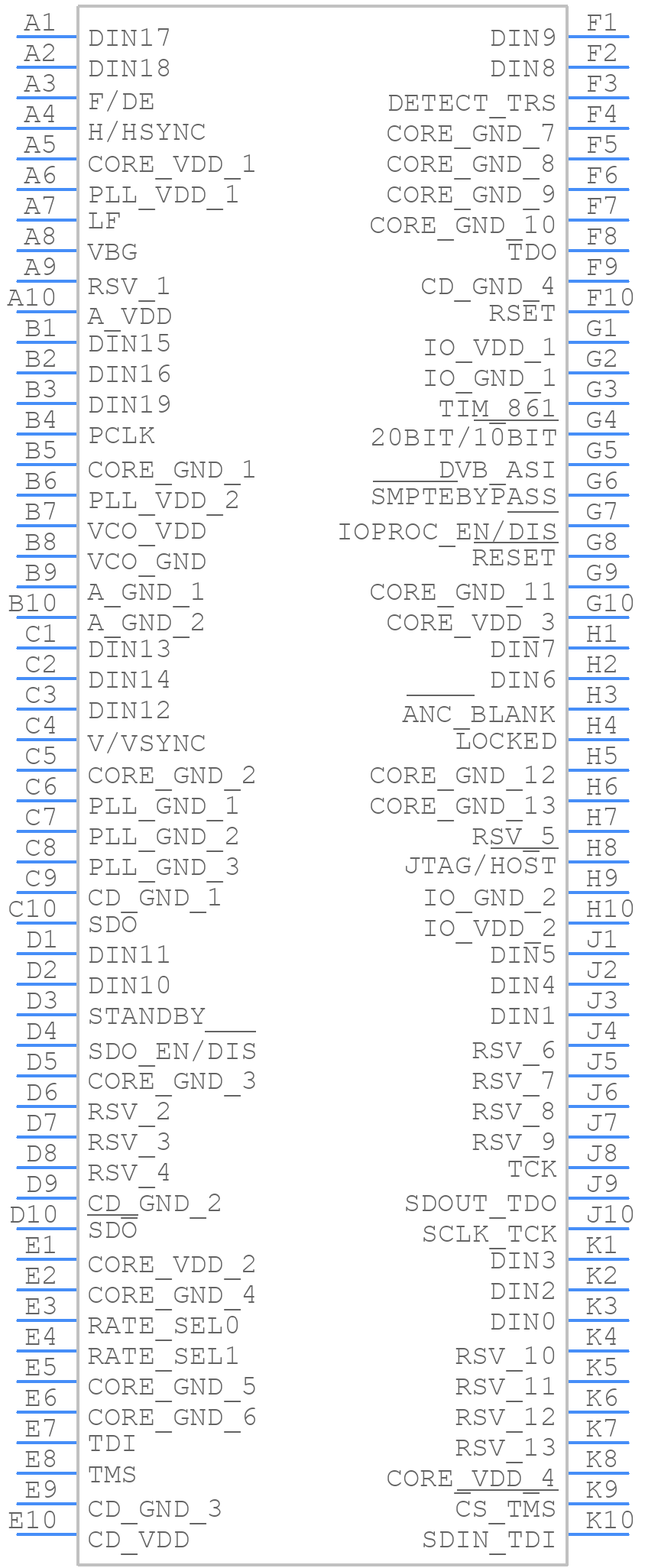

Part Symbol
-
Footprint
-

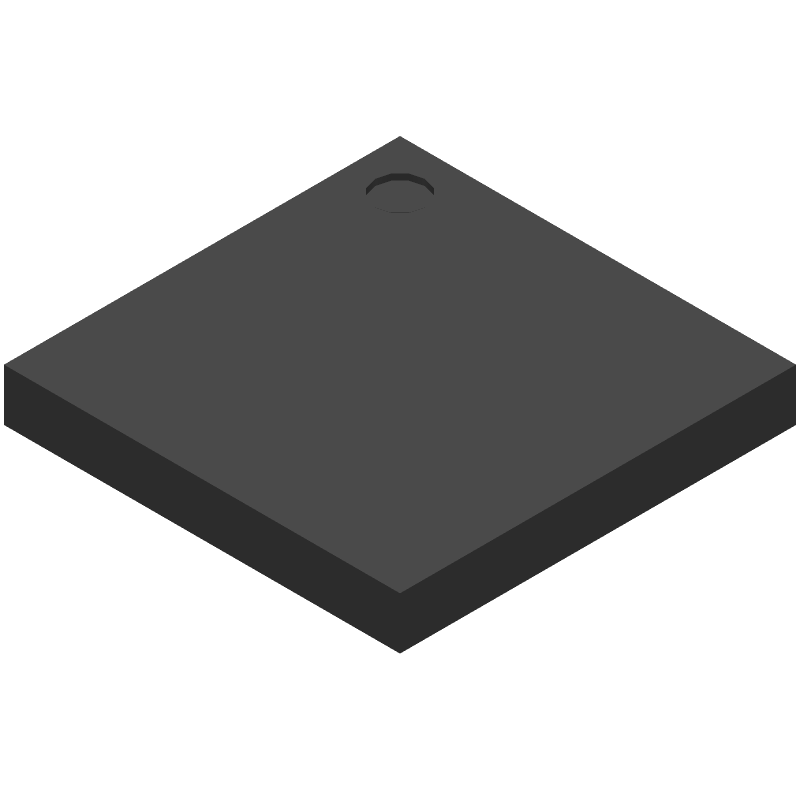

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GS2962-IBE3 by Semtech Corporation
Results Overview of GS2962-IBE3 by Semtech Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
Automotive
GS2962-IBE3 Information
GS2962-IBE3 by Semtech Corporation is an Other Telecom IC.
Other Telecom ICs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for GS2962-IBE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06X0132
|
Newark | Hd/Sd Sdi Transmitter, 3Gbps, Bga-100, Ic Type:Sdi Transmitter, Supply Voltage Min:-, Supply Voltage Max:3.3V, Ic Case/Package:Bga, No. Of Pins:100Pins, Operating Temperature Min:-20°C, Operating Temperature Max:85°C Rohs Compliant: Yes |Semtech GS2962-IBE3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 399 |
|
$33.5900 / $44.7300 | Buy Now |
|
DISTI #
GS2962-IBE3
|
Avnet Asia | HD/SD SDI Serializer 100-Pin BGA Tray (Alt: GS2962-IBE3) RoHS: Compliant Min Qty: 168 Package Multiple: 168 Lead time: 16 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
GS2962-IBE3
|
Avnet Silica | HDSD SDI Serializer 100Pin BGA Tray (Alt: GS2962-IBE3) RoHS: Compliant Min Qty: 168 Package Multiple: 168 Lead time: 18 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Symmetry Electronics | 3G SDI Transmitter - no audio Min Qty: 1 | 0 |
|
$31.0050 / $34.8806 | Buy Now |
|
|
Win Source Electronics | IC TRANSMITTER SMPTE 100BGA / Video Proc 1.2V 0.17A 100-Pin BGA | 150 |
|
$14.4445 / $21.6667 | Buy Now |
Part Details for GS2962-IBE3
GS2962-IBE3 CAD Models
GS2962-IBE3 Part Data Attributes
|
|
GS2962-IBE3
Semtech Corporation
Buy Now
Datasheet
|
Compare Parts:
GS2962-IBE3
Semtech Corporation
Telecom Circuit, 1-Func, PBGA100, LBGA-100
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SEMTECH CORP | |
| Package Description | LBGA-100 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | SEMTECH | |
| Data Rate | 2970000 Mbps | |
| JESD-30 Code | S-PBGA-B100 | |
| JESD-609 Code | e1 | |
| Length | 11 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 100 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LBGA | |
| Package Equivalence Code | BGA100,10X10,40 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.7 mm | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Telecom IC Type | TELECOM CIRCUIT | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 11 mm |
