GZ1608D601TF Information
GZ1608D601TF by Sunlord is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Part Details for GZ1608D601TF
GZ1608D601TF CAD Models
GZ1608D601TF Part Data Attributes
|
|

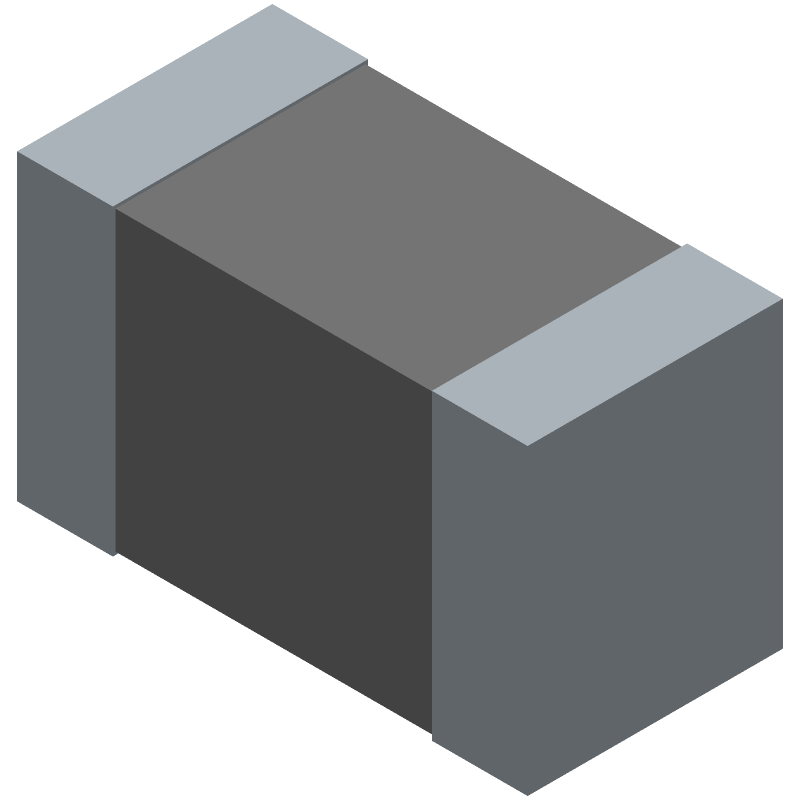

GZ1608D601TF
Sunlord
Buy Now
Datasheet
|
Compare Parts:
GZ1608D601TF
Sunlord
Ferrite Chip, 1 Function(s), 0.2A, ROHS AND REACH COMPLIANT, EIA STD PACKAGE SIZE 0603, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SHENZHEN SUNLORD ELECTRONICS CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | SUNLORD | |
| DC Resistance-Max | 0.45 Ω | |
| Filter Type | FERRITE CHIP | |
| Height | 0.8 mm | |
| Length | 1.6 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Impedance | 600 OHM Ω | |
| Packing Method | TAPE AND REEL | |
| Rated Current | 0.2 A | |
| Width | 0.8 mm |
