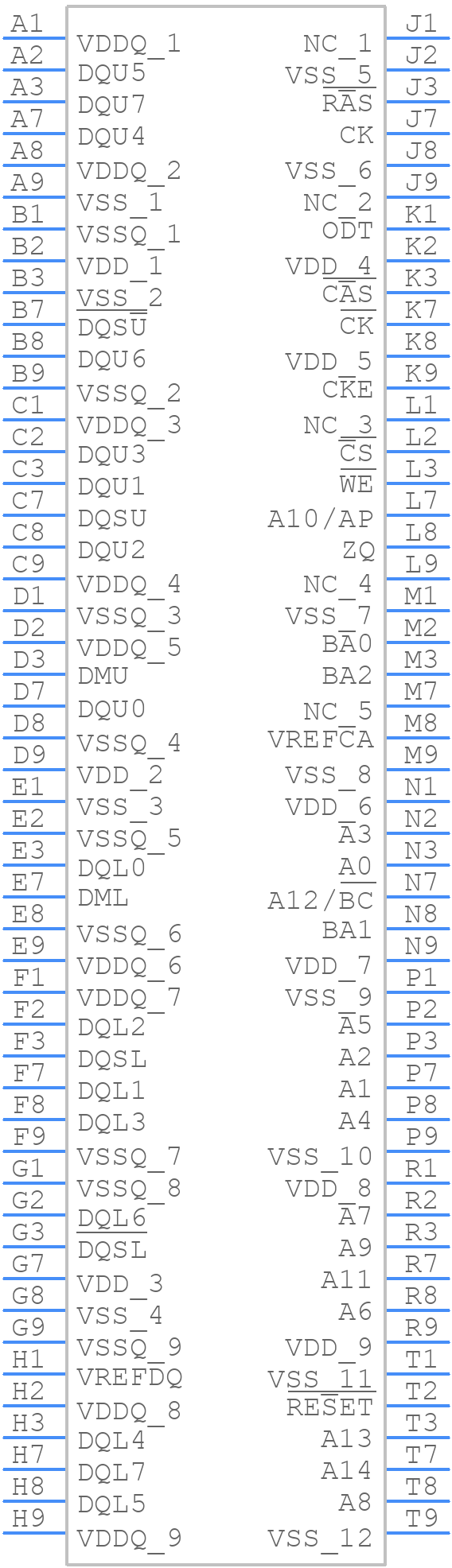

Part Symbol
-

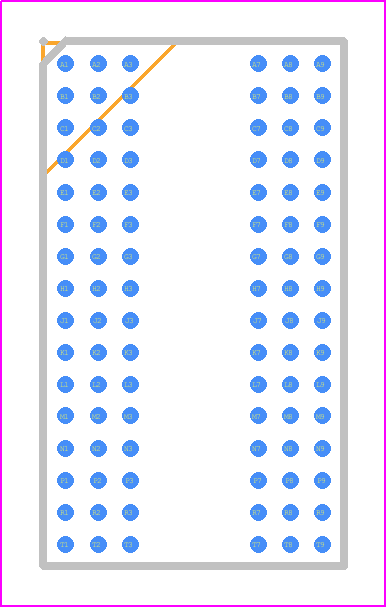

Footprint
-

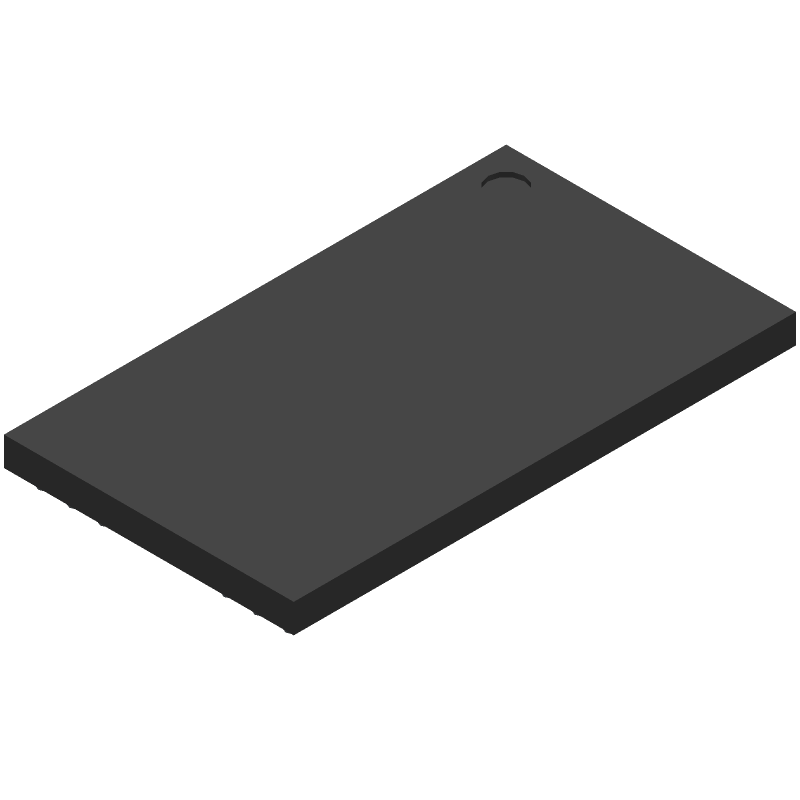

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for H5TQ4G63CFR-RDC by SK Hynix Inc
Results Overview of H5TQ4G63CFR-RDC by SK Hynix Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
H5TQ4G63CFR-RDC Information
H5TQ4G63CFR-RDC by SK Hynix Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for H5TQ4G63CFR-RDC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 910 |
|
RFQ | ||
|
|
Bristol Electronics | 40 |
|
RFQ |
Part Details for H5TQ4G63CFR-RDC
H5TQ4G63CFR-RDC CAD Models
H5TQ4G63CFR-RDC Part Data Attributes
|
|
H5TQ4G63CFR-RDC
SK Hynix Inc
Buy Now
Datasheet
|
Compare Parts:
H5TQ4G63CFR-RDC
SK Hynix Inc
DDR DRAM, 256MX16, CMOS, PBGA96, FPBGA-96
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | SK HYNIX INC | |
| Package Description | FPBGA-96 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.36 | |
| Samacsys Manufacturer | Hynix | |
| Access Mode | MULTI BANK PAGE BURST | |
| Additional Feature | AUTO/SELF REFRESH | |
| JESD-30 Code | R-PBGA-B96 | |
| Length | 13 mm | |
| Memory Density | 4294967296 bit | |
| Memory IC Type | DDR DRAM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 96 | |
| Number of Words | 268435456 words | |
| Number of Words Code | 256000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Organization | 256MX16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1.2 mm | |
| Self Refresh | YES | |
| Supply Voltage-Max (Vsup) | 1.575 V | |
| Supply Voltage-Min (Vsup) | 1.425 V | |
| Supply Voltage-Nom (Vsup) | 1.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7.5 mm |
Alternate Parts for H5TQ4G63CFR-RDC
This table gives cross-reference parts and alternative options found for H5TQ4G63CFR-RDC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of H5TQ4G63CFR-RDC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
H5TQ4G63CFR-RDC Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for this module is 0°C to 85°C.
-
To ensure signal integrity, it is recommended to use a signal integrity analysis tool to simulate the signal transmission and optimize the PCB design. Additionally, following the recommended routing and termination guidelines in the datasheet can help minimize signal degradation.
-
The H5TQ4G63CFR-RDC module is designed to operate at a voltage supply of 1.2V. Using it with a different voltage supply may affect its performance and reliability. It is recommended to use the module with the specified voltage supply to ensure optimal performance.
-
The module uses a 72-bit data bus with 8 bits for error correction. The module also supports retry mechanisms to handle errors. It is recommended to implement error detection and correction mechanisms in the system design to handle errors and retries.
-
The maximum bandwidth of the H5TQ4G63CFR-RDC module is 3200 MT/s.
