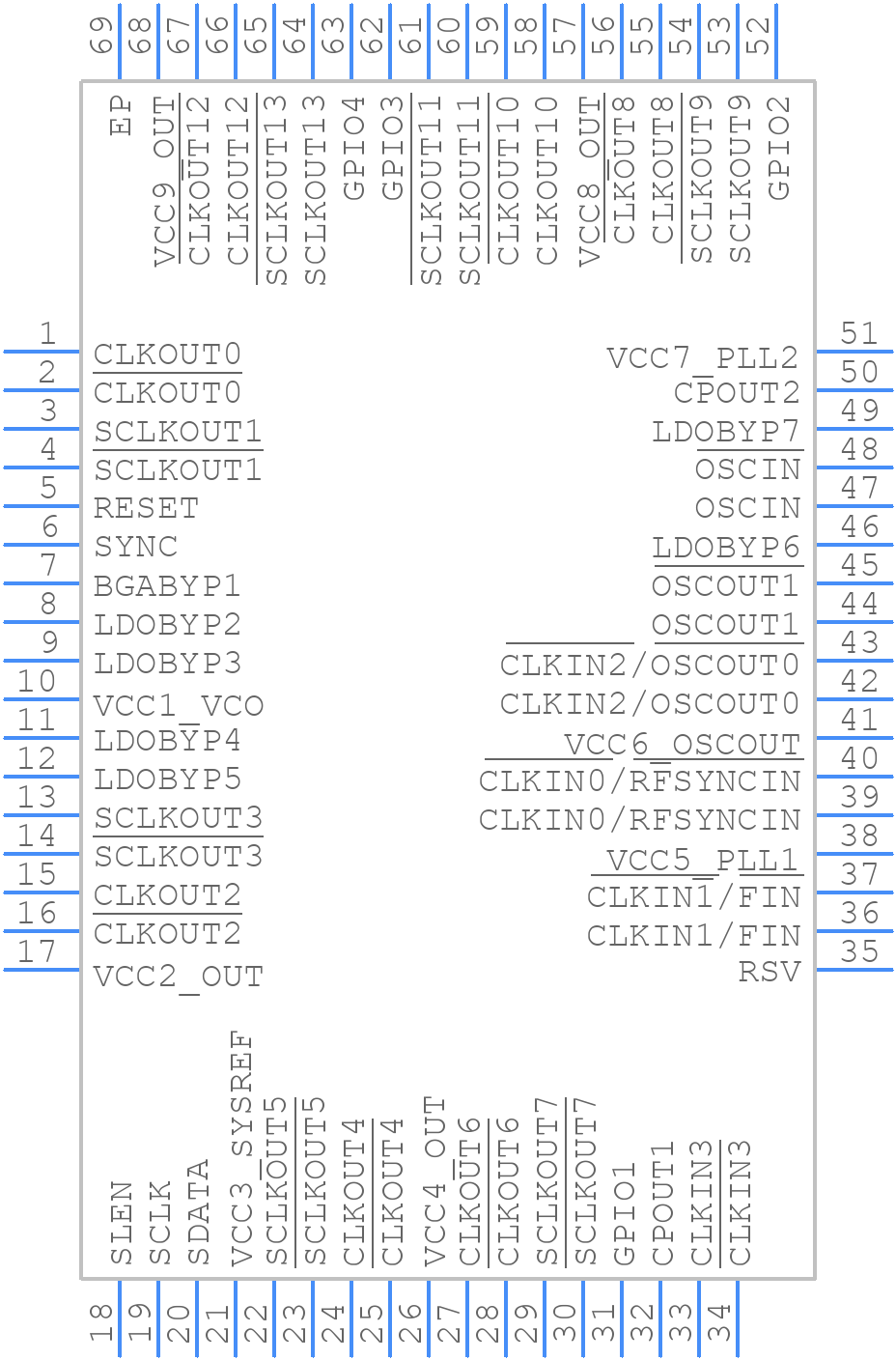

Part Symbol
-

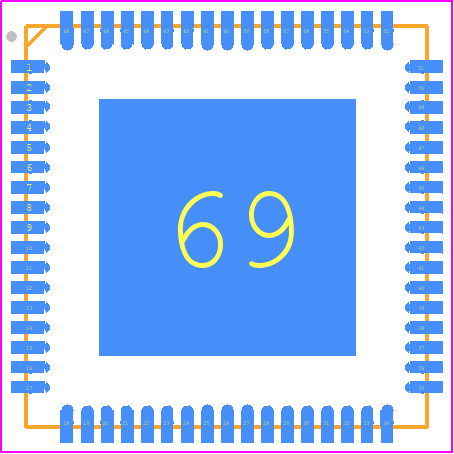

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HMC7044LP10BETR by Analog Devices Inc
Overview of HMC7044LP10BETR by Analog Devices Inc
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Financial Technology (Fintech)
Price & Stock for HMC7044LP10BETR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK8314
|
Newark | Jitter Attenuator, 3.2Ghz, Lfcsp-Ep, Clock Ic Type:Jitter Attenuator, Frequency:3.2Ghz, No. Of Outputs:14Outputs, Supply Voltage Min:3.135V, Supply Voltage Max:3.465V, Clock Ic Case Style:Lfcsp-Ep, No. Of Pins:68Pins, Product Range:-Rohs Compliant: Yes |Analog Devices HMC7044LP10BETR Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 479 |
|
$22.5500 | Buy Now |
|
DISTI #
1127-3670-1-ND
|
DigiKey | IC JITTER ATTEN 68LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
594 In Stock |
|
$26.9282 / $37.6600 | Buy Now |
|
DISTI #
584-HMC7044LP10BETR
|
Mouser Electronics | Clock Synthesizer / Jitter Cleaner High Performance, 3.2 GHz, 14-Output Jitter Attenuator with JESD204B RoHS: Compliant | 549 |
|
$26.6500 / $37.4700 | Buy Now |
|
|
Analog Devices Inc | Multi-channel, dual loop jitte Min Qty: 500 Package Multiple: 500 | 1000 |
|
$15.6900 / $37.6600 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 500 |
|
RFQ | |
|
|
CHIPMALL.COM LIMITED | LFCSP-68(10x10) Clock Generators / Frequency Synthesizers / PLL ROHS | 373 |
|
$13.3779 / $14.6646 | Buy Now |
|
|
Chips Pulse Industry Limited | LFCSP-LQ-68 Clock Generators PLLs Frequency Synthesizers RoHS Purchase Online, Ship Immediately | 447 |
|
$12.2858 / $13.4675 | Buy Now |
|
DISTI #
4022528
|
element14 Asia-Pacific | 3ITTER ATTENUATOR, 3.2GHZ, LFCSP-EP RoHS: Compliant Min Qty: 1 Container: Cut Tape | 232 |
|
$28.2548 / $39.3439 | Buy Now |
|
DISTI #
4022528RL
|
element14 Asia-Pacific | 3ITTER ATTENUATOR, 3.2GHZ, LFCSP-EP RoHS: Compliant Min Qty: 10 Container: Reel | 232 |
|
$28.2548 / $36.1221 | Buy Now |
|
DISTI #
4022528RL
|
Farnell | 3ITTER ATTENUATOR, 3.2GHZ, LFCSP-EP RoHS: Compliant Min Qty: 10 Lead time: 11 Weeks, 1 Days Container: Reel | 232 |
|
$27.2085 / $35.0311 | Buy Now |
Part Details for HMC7044LP10BETR
HMC7044LP10BETR CAD Models
HMC7044LP10BETR Part Data Attributes
|
|
HMC7044LP10BETR
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
HMC7044LP10BETR
Analog Devices Inc
High Performance, 3.2 GHz, 14-Output Jitter Attenuator with JESD204B / JESD204C
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 68 | |
| Manufacturer Package Code | HCP-68-1 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-30 Code | S-XQCC-N68 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 68 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Telecom IC Type | PCM JITTER ATTENUATOR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 10 mm |
