IPW65R045C7FKSA1 by: Infineon Technologies AG

Power Field-Effect Transistor, 46A I(D), 650V, 0.045ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247, GREEN, PLASTIC PACKAGE-3

Part Details for IPW65R045C7FKSA1 by Infineon Technologies AG

Overview of IPW65R045C7FKSA1 by Infineon Technologies AG

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

Price & Stock for IPW65R045C7FKSA1

Part # Distributor Description Stock Price Buy
DISTI # 54X5235
Newark Mosfet Transistor, N Channel, 46 A, 650 V, 0.04 Ohm, 10 V, 3.5 V Rohs Compliant: Yes |Infineon IPW65R045C7FKSA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 285
  • 1 $12.1100
  • 10 $10.7800
  • 25 $9.4500
  • 50 $8.1100
  • 100 $7.8300
  • 480 $7.5300
$7.5300 / $12.1100 Buy Now
DISTI # IPW65R045C7FKSA1
Avnet Americas Trans MOSFET N-CH 700V 46A 3-Pin TO-247 Tube - Rail/Tube (Alt: IPW65R045C7FKSA1) RoHS: Compliant Min Qty: 30 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Tube 1271
  • 30 $6.1242
  • 40 $6.0486
  • 70 $5.9749
  • 150 $5.9029
  • 300 $5.8326
$5.8326 / $6.1242 Buy Now
Bristol Electronics   308
RFQ
Rochester Electronics IPW65R045 - 650V and 700V CoolMOS N-Channel Power MOSFET RoHS: Compliant Status: Active Min Qty: 1 4
  • 1 $6.8000
  • 25 $6.6600
  • 100 $6.3900
  • 500 $6.1200
  • 1,000 $5.7800
$5.7800 / $6.8000 Buy Now
DISTI # IPW65R045C7FKSA1
TME Transistor: N-MOSFET, unipolar, 650V, 46A, 227W, PG-TO247-3 Min Qty: 1 0
  • 1 $15.9800
  • 3 $14.3000
  • 10 $13.2500
  • 30 $12.3000
$12.3000 / $15.9800 RFQ
DISTI # C1S322000380631
Chip1Stop Trans MOSFET N-CH 650V 46A 3-Pin(3+Tab) TO-247 Tube RoHS: Compliant pbFree: Yes Container: Tube 966
  • 1 $6.4800
  • 10 $6.4500
  • 50 $6.3700
  • 100 $6.3600
  • 200 $6.3500
  • 960 $6.0600
$6.0600 / $6.4800 Buy Now
DISTI # SP000929412
EBV Elektronik Trans MOSFET N-CH 700V 46A 3-Pin TO-247 Tube (Alt: SP000929412) RoHS: Compliant Min Qty: 240 Package Multiple: 240 Lead time: 18 Weeks, 0 Days EBV - 0
Buy Now
LCSC 650V 29A 0.04510V24.9A 227W 4V1.25mA 1 N-channel TO-247-3-1 MOSFETs ROHS 4
  • 1 $12.0261
  • 10 $11.6400
$11.6400 / $12.0261 Buy Now
Win Source Electronics MOSFET N-CH 650V 46A TO247-3 12070
  • 4 $14.9256
  • 8 $13.9627
  • 12 $13.4812
  • 16 $12.5183
  • 21 $12.0368
  • 26 $11.5554
$11.5554 / $14.9256 Buy Now

Part Details for IPW65R045C7FKSA1

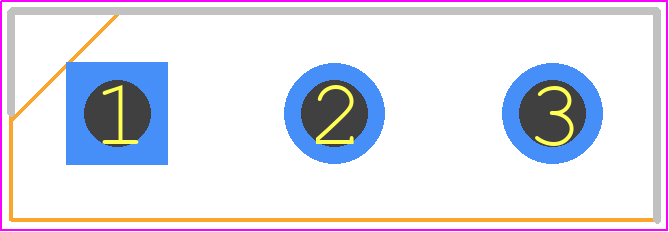

IPW65R045C7FKSA1 CAD Models

IPW65R045C7FKSA1 Part Data Attributes

IPW65R045C7FKSA1 Infineon Technologies AG
Buy Now Datasheet
Compare Parts:
IPW65R045C7FKSA1 Infineon Technologies AG Power Field-Effect Transistor, 46A I(D), 650V, 0.045ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247, GREEN, PLASTIC PACKAGE-3
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INFINEON TECHNOLOGIES AG
Package Description GREEN, PLASTIC PACKAGE-3
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 17 Weeks
Samacsys Manufacturer Infineon
Avalanche Energy Rating (Eas) 249 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 650 V
Drain Current-Max (ID) 46 A
Drain-source On Resistance-Max 0.045 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-247
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Polarity/Channel Type N-CHANNEL
Pulsed Drain Current-Max (IDM) 212 A
Surface Mount NO
Terminal Finish Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for IPW65R045C7FKSA1

This table gives cross-reference parts and alternative options found for IPW65R045C7FKSA1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IPW65R045C7FKSA1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IPW65R045C7 Infineon Technologies AG Check for Price Power Field-Effect Transistor, 46A I(D), 650V, 0.045ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247, GREEN, PLASTIC PACKAGE-3 IPW65R045C7FKSA1 vs IPW65R045C7
