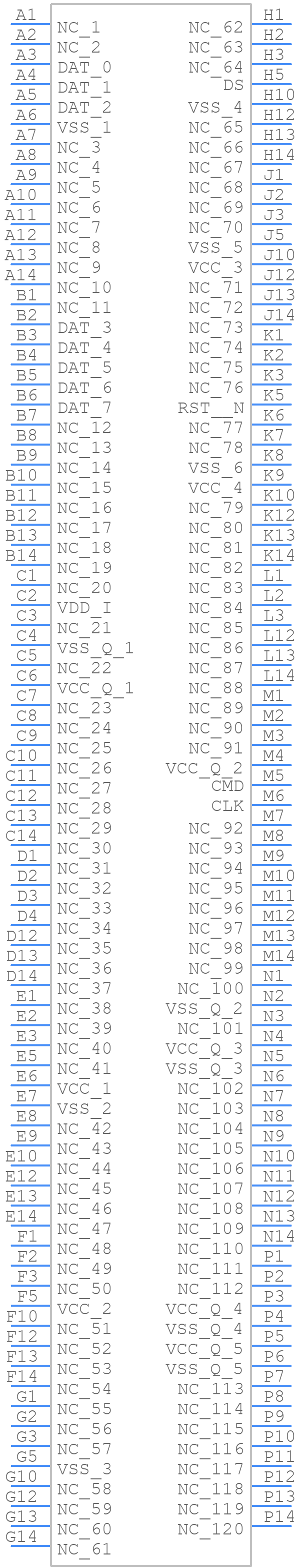

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS21ES04G-JCLI by Integrated Silicon Solution Inc
Results Overview of IS21ES04G-JCLI by Integrated Silicon Solution Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
IS21ES04G-JCLI Information
IS21ES04G-JCLI by Integrated Silicon Solution Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS21ES04G-JCLI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
IS21ES04G-JCLI
|
Avnet Silica | Flash Card 4Gbyte 33V Embedded MMC 153Pin VFBGA (Alt: IS21ES04G-JCLI) RoHS: Compliant Min Qty: 152 Package Multiple: 152 | Silica - 0 |
|
Buy Now | |
|
DISTI #
IS21ES04G-JCLI
|
EBV Elektronik | Flash Card 4Gbyte 33V Embedded MMC 153Pin VFBGA (Alt: IS21ES04G-JCLI) RoHS: Compliant Min Qty: 152 Package Multiple: 152 Lead time: 53 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC FLASH 32GBIT EMMC 153VFBGA | 2000 |
|
$120.7143 / $139.2857 | Buy Now |
Part Details for IS21ES04G-JCLI
IS21ES04G-JCLI CAD Models
IS21ES04G-JCLI Part Data Attributes
|
|
IS21ES04G-JCLI
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS21ES04G-JCLI
Integrated Silicon Solution Inc
Flash, 4GX8, PBGA153, FBGA-153
|
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Date Of Intro | 2016-09-13 | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| JESD-30 Code | R-PBGA-B153 | |
| JESD-609 Code | e1 | |
| Length | 13 mm | |
| Memory Density | 34359738368 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 153 | |
| Number of Words | 4294967296 words | |
| Number of Words Code | 4000000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 4GX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 3.3 V | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Width | 11.5 mm |
