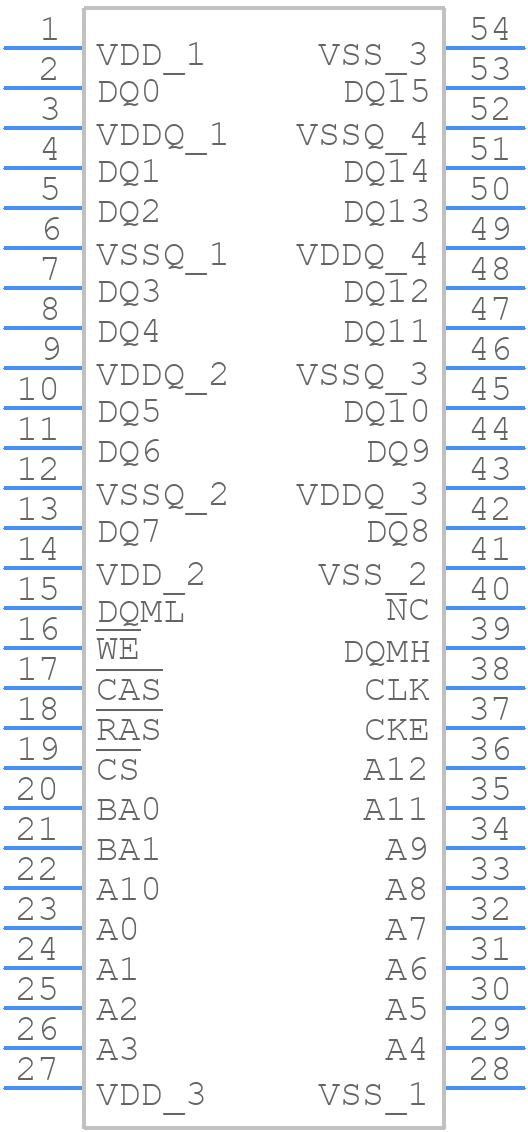

Part Symbol
-

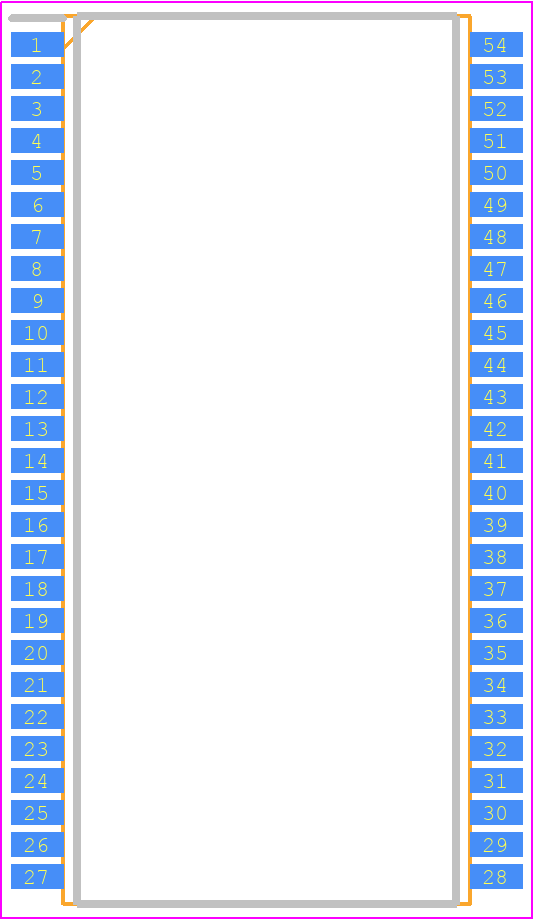

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS42S16320F-7TL by Integrated Silicon Solution Inc
Results Overview of IS42S16320F-7TL by Integrated Silicon Solution Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
IS42S16320F-7TL Information
IS42S16320F-7TL by Integrated Silicon Solution Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS42S16320F-7TL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52Y1997
|
Newark | 512M, 3.3V, Sdram, 32Mx16, 143Mhz, 54 Pin Tsop Ii (400 Mil) Rohs |Integrated Silicon Solution/issi IS42S16320F-7TL RoHS: Not Compliant Min Qty: 108 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$8.3000 / $9.8300 | Buy Now |
|
DISTI #
IS42S16320F-7TL
|
Avnet Americas | DRAMs Parts and Modules - Bulk (Alt: IS42S16320F-7TL) RoHS: Not Compliant Min Qty: 108 Package Multiple: 108 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$8.1333 / $9.3846 | Buy Now |
|
DISTI #
IS42S16320F-7TL
|
Avnet Asia | DRAMs Parts and Modules (Alt: IS42S16320F-7TL) RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 16 Weeks, 0 Days | 0 |
|
$17.2941 / $19.3421 | Buy Now |
|
DISTI #
IS42S16320F-7TL
|
Avnet Silica | DRAMs Parts and Modules (Alt: IS42S16320F-7TL) RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
LCSC | TSOPII-54-10.2mm SDRAM ROHS | 10 |
|
$14.2551 / $17.7959 | Buy Now |
|
|
Win Source Electronics | IC DRAM 512M PARALLEL 54TSOP | 3200 |
|
$10.4271 / $15.6405 | Buy Now |
Part Details for IS42S16320F-7TL
IS42S16320F-7TL CAD Models
IS42S16320F-7TL Part Data Attributes
|
|
IS42S16320F-7TL
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS42S16320F-7TL
Integrated Silicon Solution Inc
Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, TSOP2-54
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Package Description | TSOP2-54 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.28 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| Access Mode | FOUR BANK PAGE BURST | |
| Access Time-Max | 5.4 ns | |
| Additional Feature | PROGRAMMABLE CAS LATENCY; AUTO/SELF REFRESH | |
| Clock Frequency-Max (fCLK) | 143 MHz | |
| I/O Type | COMMON | |
| Interleaved Burst Length | 1,2,4,8 | |
| JESD-30 Code | R-PDSO-G54 | |
| Length | 22.22 mm | |
| Memory Density | 536870912 bit | |
| Memory IC Type | SYNCHRONOUS DRAM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 54 | |
| Number of Words | 33554432 words | |
| Number of Words Code | 32000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Organization | 32MX16 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP2 | |
| Package Equivalence Code | TSOP54,.46,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Qualification Status | Not Qualified | |
| Refresh Cycles | 8192 | |
| Seated Height-Max | 1.2 mm | |
| Self Refresh | YES | |
| Sequential Burst Length | 1,2,4,8,FP | |
| Standby Current-Max | 0.004 A | |
| Supply Current-Max | 0.16 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Width | 10.16 mm |
Alternate Parts for IS42S16320F-7TL
This table gives cross-reference parts and alternative options found for IS42S16320F-7TL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS42S16320F-7TL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MT48LC32M16A2TG-75TR | Micron Technology Inc | Check for Price | Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, PLASTIC, TSOP2-54 | IS42S16320F-7TL vs MT48LC32M16A2TG-75TR |
| MT48LC32M16A2TG-75L:C | Micron Technology Inc | Check for Price | Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, PLASTIC, TSOP2-54 | IS42S16320F-7TL vs MT48LC32M16A2TG-75L:C |
| TC59SM916AFTL-75 | Toshiba America Electronic Components | Check for Price | IC 32M X 16 SYNCHRONOUS DRAM, 5.4 ns, PDSO54, 0.400 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54, Dynamic RAM | IS42S16320F-7TL vs TC59SM916AFTL-75 |
| HY57V121620LT-6 | SK Hynix Inc | Check for Price | Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 | IS42S16320F-7TL vs HY57V121620LT-6 |
| HY57V121620T-H | SK Hynix Inc | Check for Price | Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54 | IS42S16320F-7TL vs HY57V121620T-H |
| HYB39S512160ATL-7.5 | Infineon Technologies AG | Check for Price | Synchronous DRAM, 32MX16, 6ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, PLASTIC, TSOP2-54 | IS42S16320F-7TL vs HYB39S512160ATL-7.5 |
| MT48LC32M16A2P-75AIT:C | Micron Technology Inc | Check for Price | Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 | IS42S16320F-7TL vs MT48LC32M16A2P-75AIT:C |
| MT48LC32M16A2P-75:C | Micron Technology Inc | Check for Price | Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 | IS42S16320F-7TL vs MT48LC32M16A2P-75:C |
| MT48LC32M16A2P-75AIT | Micron Technology Inc | Check for Price | 32MX16 SYNCHRONOUS DRAM, 5.4ns, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 | IS42S16320F-7TL vs MT48LC32M16A2P-75AIT |
| EDS5116ABTA-6B | Elpida Memory Inc | Check for Price | Synchronous DRAM, 32MX16, 5ns, CMOS, PDSO54, PLASTIC, TSOP2-54 | IS42S16320F-7TL vs EDS5116ABTA-6B |
IS42S16320F-7TL Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IS42S16320F-7TL is 0°C to 85°C.
-
To ensure data integrity during power-up and power-down sequences, follow the power-up and power-down procedures outlined in the datasheet, and ensure that the power supply voltage is stable before accessing the SDRAM.
-
The recommended clock frequency for the IS42S16320F-7TL is 100 MHz, but it can operate up to 133 MHz with a 7.5ns clock cycle time.
-
The IS42S16320F-7TL requires a refresh cycle every 64ms, and the refresh command should be issued at least once every 32ms to ensure data integrity.
-
The maximum current consumption of the IS42S16320F-7TL is 350mA during active operation and 10mA during standby mode.
