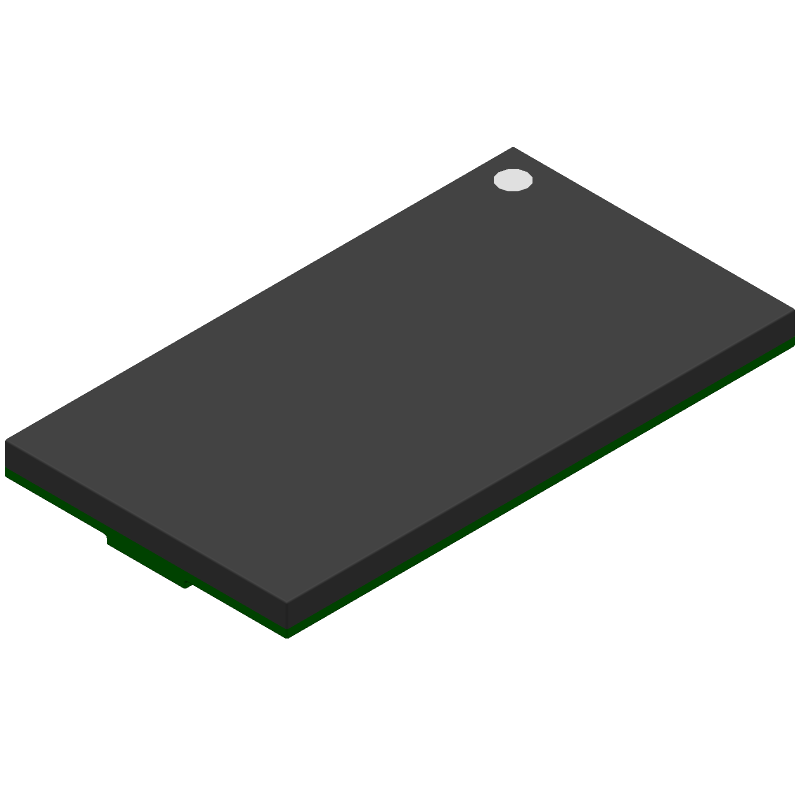

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS43TR16128CL-125KBLI by Integrated Silicon Solution Inc
Results Overview of IS43TR16128CL-125KBLI by Integrated Silicon Solution Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IS43TR16128CL-125KBLI Information
IS43TR16128CL-125KBLI by Integrated Silicon Solution Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS43TR16128CL-125KBLI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AC6021
|
Newark | Sdram, 2Gbit, Bga-96, Dram Memory Configuration:128M X 16Bit, Memory Case Style:Bga, No. Of Pins:96Pins, Ic Interface Type:Parallel, Access Time:255Ps, Page Size:2048Byte, Operating Temperature Min:-40°C, Operating Temperature Rohs Compliant: Yes |Integrated Silicon Solution/issi IS43TR16128CL-125KBLI RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 66 |
|
$5.8100 / $7.1000 | Buy Now |
|
DISTI #
IS43TR16128CL-125K
|
Avnet Americas | DRAM Chip DDR3 SDRAM 2G-Bit 128Mx16 1.35V 96-Pin TW-BGA - Trays (Alt: IS43TR16128CL-125K) RoHS: Not Compliant Min Qty: 190 Package Multiple: 190 Lead time: 8 Weeks, 0 Days Container: Tray | 0 |
|
$4.2550 / $4.5510 | Buy Now |
|
DISTI #
IS43TR16128CL-125KBLI
|
Avnet Asia | DRAM Chip DDR3 SDRAM 2G-Bit 128Mx16 1.35V 96-Pin TW-BGA (Alt: IS43TR16128CL-125KBLI) RoHS: Compliant Min Qty: 190 Package Multiple: 190 Lead time: 6 Weeks, 0 Days | 0 |
|
$4.6485 / $4.9140 | Buy Now |
|
DISTI #
IS43TR16128CL-125KBLI
|
Avnet Silica | DRAM Chip DDR3 SDRAM 2GBit 128Mx16 135V 96Pin TWBGA (Alt: IS43TR16128CL-125KBLI) RoHS: Compliant Min Qty: 190 Package Multiple: 190 Lead time: 14 Weeks, 0 Days | Silica - 6650 |
|
Buy Now | |
|
|
LCSC | BGA-96(9x13) DDR SDRAM ROHS | 16 |
|
$11.1568 / $13.4213 | Buy Now |
Part Details for IS43TR16128CL-125KBLI
IS43TR16128CL-125KBLI CAD Models
IS43TR16128CL-125KBLI Part Data Attributes
|
|
IS43TR16128CL-125KBLI
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS43TR16128CL-125KBLI
Integrated Silicon Solution Inc
DDR DRAM, 128MX16, CMOS, PBGA96, FBGA-96
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.36 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| Access Mode | MULTI BANK PAGE BURST | |
| Additional Feature | PROGRAMMABLE CAS LATENCY; AUTO/SELF REFRESH | |
| JESD-30 Code | R-PBGA-B96 | |
| JESD-609 Code | e1 | |
| Length | 13 mm | |
| Memory Density | 2147483648 bit | |
| Memory IC Type | DDR3L DRAM | |
| Memory Width | 16 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 96 | |
| Number of Words | 134217728 words | |
| Number of Words Code | 128000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 128MX16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 mm | |
| Self Refresh | YES | |
| Supply Voltage-Max (Vsup) | 1.45 V | |
| Supply Voltage-Min (Vsup) | 1.283 V | |
| Supply Voltage-Nom (Vsup) | 1.35 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Width | 9 mm |
Alternate Parts for IS43TR16128CL-125KBLI
This table gives cross-reference parts and alternative options found for IS43TR16128CL-125KBLI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS43TR16128CL-125KBLI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IS43TR16128CL-125KBL | Integrated Silicon Solution Inc | Check for Price | DDR DRAM, 128MX16, CMOS, PBGA96, FBGA-96 | IS43TR16128CL-125KBLI vs IS43TR16128CL-125KBL |
| IS43TR16128AL-125KBL | Integrated Silicon Solution Inc | Check for Price | DDR DRAM, 128MX16, 0.225ns, CMOS, PBGA96, FBGA-96 | IS43TR16128CL-125KBLI vs IS43TR16128AL-125KBL |
IS43TR16128CL-125KBLI Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IS43TR16128CL-125KBLI is 0°C to 85°C.
-
To ensure data integrity, it is recommended to follow the power-up and power-down sequences outlined in the datasheet, and to use a voltage regulator to ensure a stable power supply.
-
The recommended clock frequency for the IS43TR16128CL-125KBLI is 125 MHz, but it can operate at frequencies up to 133 MHz.
-
The IS43TR16128CL-125KBLI requires a refresh cycle every 64 ms, and the refresh command should be issued at least once every 32 ms to ensure data integrity.
-
The maximum current consumption of the IS43TR16128CL-125KBLI is 350 mA during active operation, and 10 mA during standby mode.
