ISL3330IAZ-T by:

3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers, SSOP, /Reel

Part Details for ISL3330IAZ-T by Renesas Electronics Corporation

Results Overview of ISL3330IAZ-T by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

ISL3330IAZ-T Information

ISL3330IAZ-T by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
ISL3330IAZ Renesas Electronics Corporation 3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers
ISL3330IAZ-T Renesas Electronics Corporation 3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers
ISL3330IAZ-T7A Renesas Electronics Corporation 3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers

Price & Stock for ISL3330IAZ-T

Part # Distributor Description Stock Price Buy
DISTI # 85AJ3012
Newark Transceiver, 20Mbps, 85Deg C, Ssop, Ic Type:Rs232/Rs485 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:Half Duplex, Data Rate Max:20Mbps, Supply Voltage Min:3.15V, Supply Voltage Max:3.45V Rohs Compliant: Yes |Renesas ISL3330IAZ-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 89
  • 1 $8.2400
  • 10 $7.4500
  • 25 $7.1000
  • 50 $6.6400
  • 100 $6.1700
  • 250 $5.8900
  • 500 $5.3700
  • 1,000 $4.6700
$4.6700 / $8.2400 Buy Now
DISTI # 04P7577
Newark Pb-Free Single 3.3V Multiprotocol Transceiver, 20 Ssop, -40C/Tape & Reel Rohs Compliant: Yes |Renesas ISL3330IAZ-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # ISL3330IAZ-T
Avnet Americas Dual Transmitter/Receiver RS-232/RS-485 20-Pin SSOP T/R - Tape and Reel (Alt: ISL3330IAZ-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Reel 1000
  • 1 $7.8600
$7.8600 Buy Now
Renesas Electronics America IC TRANSCEIVER FULL 2/2 20SSOP Min Qty: 1 Container: Tape & Reel (TR) 1645
  • 1 $9.5900
  • 10 $6.6500
  • 25 $5.8920
  • 100 $5.0440
  • 250 $4.6331
  • 500 $4.3829
  • 1,000 $4.1250
$4.1250 / $9.5900 Buy Now
DISTI # ISL3330IAZ-T
TME IC: interface, transceiver, half duplex,RS232,RS422,RS485 Min Qty: 1000 0
  • 1,000 $5.8300
$5.8300 RFQ
DISTI # ISL3330IAZ-T
Avnet Silica (Alt: ISL3330IAZ-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days Silica - 0
Buy Now
Win Source Electronics IC TRANSCEIVER FULL 2/2 20SSOP 3638
  • 8 $6.6741
  • 19 $5.4762
  • 29 $5.3051
  • 39 $5.1340
  • 51 $4.9628
  • 68 $4.4494
$4.4494 / $6.6741 Buy Now

Part Details for ISL3330IAZ-T

ISL3330IAZ-T CAD Models

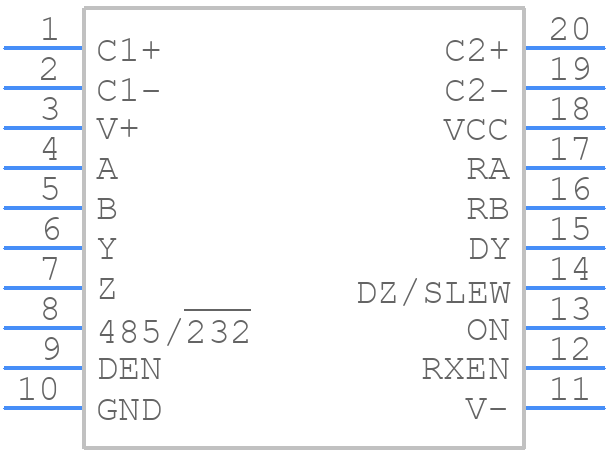

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ISL3330IAZ-T Part Data Attributes

Parametric Data
ISL3330IAZ-T Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
ISL3330IAZ-T Renesas Electronics Corporation 3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers, SSOP, /Reel
Pbfree Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RENESAS ELECTRONICS CORP
Part Package Code SSOP
Package Description SSOP,
Pin Count 20
Manufacturer Package Code M20.209
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 18 Weeks
Date Of Intro 2017-10-13
Samacsys Manufacturer Renesas Electronics
Differential Output NO
Driver Number of Bits 2
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 7.2 mm
Moisture Sensitivity Level 3
Number of Functions 2
Number of Terminals 20
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Receive Delay-Max 120 ns
Receiver Number of Bits 2
Seated Height-Max 1.99 mm
Supply Voltage-Max 3.45 V
Supply Voltage-Min 3.15 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transmit Delay-Max 2000 ns
Width 5.29 mm

Alternate Parts for ISL3330IAZ-T

This table gives cross-reference parts and alternative options found for ISL3330IAZ-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL3330IAZ-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ISL3330IAZ Renesas Electronics Corporation $5.8843 3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers, SSOP, /Tube ISL3330IAZ-T vs ISL3330IAZ
ISL3330IAZ-T7A Renesas Electronics Corporation $8.1930 3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers, SSOP, /Reel ISL3330IAZ-T vs ISL3330IAZ-T7A
PCA9515AD/G,118 NXP Semiconductors Check for Price PCA9515A - I²C-bus repeater SOIC 8-Pin ISL3330IAZ-T vs PCA9515AD/G,118
PCA9515ADGKT Texas Instruments Check for Price 2-bit bidirectional 2.3- to 3.6-V 400-kHz I2C/SMBus buffer 8-VSSOP -40 to 85 ISL3330IAZ-T vs PCA9515ADGKT
PCA9515AD,112 NXP Semiconductors Check for Price PCA9515A - I²C-bus repeater SOIC 8-Pin ISL3330IAZ-T vs PCA9515AD,112
PCA9515APWR Texas Instruments Check for Price 2-bit bidirectional 2.3- to 3.6-V 400-kHz I2C/SMBus buffer 8-TSSOP -40 to 85 ISL3330IAZ-T vs PCA9515APWR
PCA9515ATP,147 NXP Semiconductors Check for Price PCA9515A - I²C-bus repeater SON 8-Pin ISL3330IAZ-T vs PCA9515ATP,147
PCA9515APWG4 Texas Instruments Check for Price Dual Bidirectional I2C Bus and SMBus Repeater 8-TSSOP -40 to 85 ISL3330IAZ-T vs PCA9515APWG4
PCA9515APWTG4 Texas Instruments Check for Price SPECIALTY INTERFACE CIRCUIT, PDSO8, GREEN, PLASTIC, TSSOP-8 ISL3330IAZ-T vs PCA9515APWTG4
PCA9515ADGKRG4 Texas Instruments Check for Price 2-bit bidirectional 2.3- to 3.6-V 400-kHz I2C/SMBus buffer 8-VSSOP -40 to 85 ISL3330IAZ-T vs PCA9515ADGKRG4

ISL3330IAZ-T Related Parts

ISL3330IAZ-T Frequently Asked Questions (FAQ)

  • A good PCB layout for the ISL3330IAZ-T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.

  • To ensure proper power-up and power-down of the ISL3330IAZ-T, make sure to follow the recommended power-up and power-down sequences outlined in the datasheet. This includes ramping up the power supply voltage slowly and ensuring that the input voltage is stable before enabling the device.

  • The ISL3330IAZ-T has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and airflow to keep the device within its recommended operating temperature range. A thermal pad on the underside of the package can be connected to a ground plane or a heat sink to improve thermal dissipation.

  • To troubleshoot issues with the ISL3330IAZ-T, start by verifying that the power supply voltage is within the recommended range and that the input and output signals are within the specified limits. Check for proper PCB layout and decoupling, and ensure that the device is properly powered up and powered down. If issues persist, consult the datasheet and application notes for guidance.

  • The ISL3330IAZ-T has built-in ESD protection, but it's still essential to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an anti-static bag, and avoiding touching the device's pins or exposed internal components.
