JXD2-0Z10NL by: Pulse Electronics Corporation

Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack,

Part Details for JXD2-0Z10NL by Pulse Electronics Corporation

Results Overview of JXD2-0Z10NL by Pulse Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

JXD2-0Z10NL Information

JXD2-0Z10NL by Pulse Electronics Corporation is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for JXD2-0Z10NL

Part # Distributor Description Stock Price Buy
DISTI # 46AK9934
Newark Modular Conn, 8P8C, Rj45 Jack, Th, Modular Connector Type:Rj45 Jack, Port Configuration:1 X 1 (Port), No. Of Positions/Loaded Contacts (Per Port):8P8C, Lan Category:-, Ip Rating:-, Connector Mounting:Through Hole Mount Rohs Compliant: Yes |Pulse Electronics JXD2-0Z10NL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 523
  • 1 $2.7800
  • 10 $2.7800
  • 25 $2.7800
  • 50 $2.7800
  • 100 $2.7800
  • 500 $2.7800
  • 1,000 $2.7800
  • 2,500 $2.7800
$2.7800 Buy Now
DISTI # JXD2-0Z10NL
Avnet Americas Connector RJ45 Receptacle 8 Position Solder Straight Through Hole 12 Terminal 1 Port Tray - Trays (Alt: JXD2-0Z10NL) RoHS: Compliant Min Qty: 600 Package Multiple: 60 Lead time: 7 Weeks, 0 Days Container: Tray 0
  • 600 $2.9217
  • 720 $2.8746
  • 1,320 $2.8274
  • 3,000 $2.7803
  • 6,000 $2.7332
$2.7332 / $2.9217 Buy Now
DISTI # 000000000006368362
Sager Modular Connectors / Ethernet Connectors CONN RJ45 1X1 100D G/YLED TY Min Qty: 1 0
  • 1 $3.6800
  • 42 $3.4100
  • 106 $3.3200
  • 255 $3.1000
  • 531 $2.9800
$2.9800 / $3.6800 Buy Now
DISTI # JXD2-0Z10NL
Avnet Abacus Connector RJ45 Receptacle 8 Position Solder Straight Through Hole 12 Terminal 1 Port Tray (Alt: JXD2-0Z10NL) RoHS: Compliant Min Qty: 800 Package Multiple: 50 Lead time: 24 Weeks, 0 Days Abacus - 780
Buy Now
DISTI # JXD2-0Z10NL
Avnet Asia Connector RJ45 Receptacle 8 Position Solder Straight Through Hole 12 Terminal 1 Port Tray (Alt: JXD2-0Z10NL) RoHS: Compliant Min Qty: 1080 Package Multiple: 120 Lead time: 7 Weeks, 0 Days 0
  • 1,080 $2.8876
  • 2,160 $2.8475
  • 3,240 $2.8085
  • 5,400 $2.7705
  • 10,800 $2.6976
  • 27,000 $2.6285
  • 54,000 $2.5627
$2.5627 / $2.8876 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 120 1320
  • 120 $4.4900
  • 1,320 $4.1900
$4.1900 / $4.4900 Buy Now
Vyrian Connectors 1664
RFQ

Part Details for JXD2-0Z10NL

JXD2-0Z10NL CAD Models

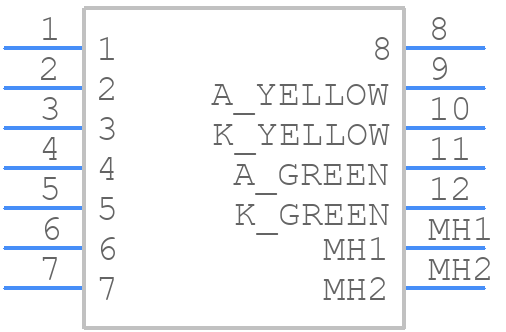

  • Part Symbol

    Part Symbol

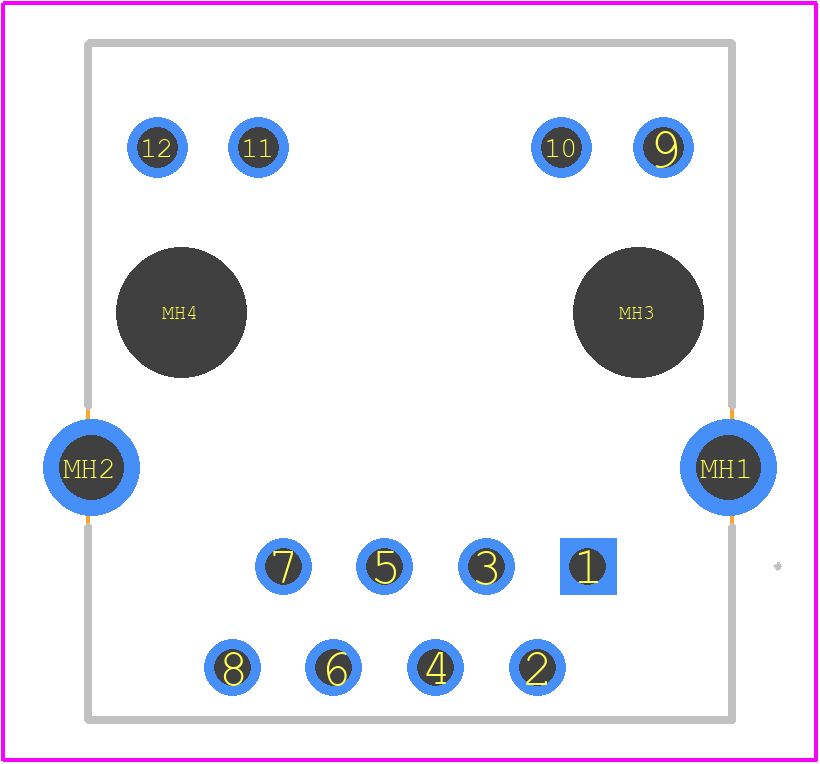

  • Footprint

    footprint

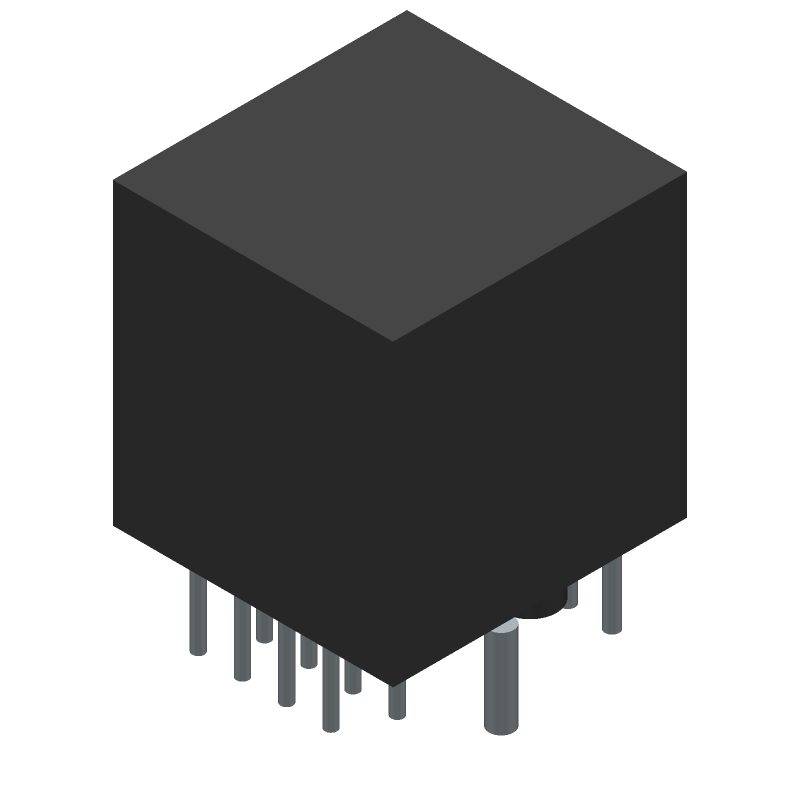

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

JXD2-0Z10NL Part Data Attributes

Parametric Data
JXD2-0Z10NL Pulse Electronics Corporation
Buy Now Datasheet
Compare Parts:
JXD2-0Z10NL Pulse Electronics Corporation Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PULSE ELECTRONICS CORP
Reach Compliance Code compliant
Factory Lead Time 7 Weeks
Samacsys Manufacturer Pulse Electronics
Additional Feature SHIELDED, TOP ENTRY
Board Mounting Option PEG
Body Breadth 0.634 inch
Body Depth 0.667 inch
Body Length 0.665 inch
Body/Shell Style JACK
Connector Type TELECOM AND DATACOM CONNECTOR
Contact Finish Termination MATTE TIN OVER NICKEL
Contact Gender FEMALE
Contact Pattern RECTANGULAR
Contact Style TELCOM, MODULAR
Durability 750 Cycles
Empty Shell NO
Filter Feature YES
Insulator Material POLYETHYLENE
JESD-609 Code e3
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing 2.54 mm
Plating Thickness 30u inch
Polarization Key POLARIZED HOUSING
Reference Standard UL
Shell Finish NICKEL
Shell Material BRASS
Terminal Length 0.13 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 8
UL Flammability Code 94V-0

JXD2-0Z10NL Frequently Asked Questions (FAQ)

  • A good PCB layout for the JXD2-0Z10NL involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce electromagnetic interference (EMI).

  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of cold solder joints, such as dragging the soldering iron along the pads.

  • The JXD2-0Z10NL has an operating temperature range of -40°C to 125°C, but it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance and reliability.

  • Yes, the JXD2-0Z10NL is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.

  • To troubleshoot issues with the JXD2-0Z10NL, start by checking the input and output voltages, then verify the component's soldering and PCB layout. If the issue persists, consult the datasheet and application notes for guidance.
