LM2676S-ADJ/NOPB by:

SIMPLE SWITCHER® 8V to 40V, 3A Low Component Count Step-Down Regulator 7-DDPAK/TO-263 -40 to 125

Part Details for LM2676S-ADJ/NOPB by Texas Instruments

Overview of LM2676S-ADJ/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

Available Datasheets

Part # Manufacturer Description Datasheet
TCKE712BNL Toshiba Electronic Devices & Storage Corporation eFuse IC (electronic Fuse), 4.4 to 13.2 V, 3.65 A, Latch, Adjustable Over Voltage Protection, WSON10
UC2907J Rochester Electronics LLC Power Supply Support Circuit, Adjustable, 1 Channel, CDIP16, CERAMIC, DIP-16
CA3085B Rochester Electronics LLC Adjustable Positive Standard Regulator, 1.7V Min, 46V Max, BIPolar, MBCY8, METAL CAN-8

Price & Stock for LM2676S-ADJ/NOPB

Part # Distributor Description Stock Price Buy
DISTI # 28AH3192
Newark Ic, Switching Reg, 260Khz, To263-7, Topology:Buck (Step Down), Input Voltage Min:8V, Input Voltage Max:40V, No. Of Outputs:1Outputs, Dc/Dc Converter Ic Case:To-263, No. Of Pins:7Pins, Output Current:3A, Output Voltage Min:1.2V, Rohs Compliant: Yes |Texas Instruments LM2676S-ADJ/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 315
  • 1 $5.3700
  • 10 $5.3700
  • 25 $5.3700
  • 50 $5.3700
  • 100 $5.3700
  • 250 $5.3700
  • 500 $5.3700
$5.3700 Buy Now
DISTI # LM2676S-ADJ/NOPB
TME PMIC, DC/DC converter, Uin: 8÷40VDC, Uout: 1.2÷37VDC, 3A, TO263-7 Min Qty: 1 0
  • 1 $5.4500
  • 3 $5.2800
  • 10 $4.3800
  • 45 $3.5300
$3.5300 / $5.4500 RFQ
DISTI # SMC-LM2676S-ADJ/NOPB
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 7
RFQ
DISTI # C1S746202808113
Chip1Stop Conv DC-DC 8V to 40V Step Down Single-Out 1.23V to 37V 3A 8-Pin(7+Tab) TO-263 Tube RoHS: Compliant pbFree: Yes Container: Tube 19
  • 1 $5.2600
  • 10 $4.0200
$4.0200 / $5.2600 Buy Now
LCSC Step-down type Adjustable 8V40V 3A TO-263-7 DC-DC Converters ROHS 51
  • 1 $3.6914
  • 10 $3.2883
  • 30 $3.2247
  • 100 $3.1291
$3.1291 / $3.6914 Buy Now
LCSC Step-down type Adjustable 8V40V 1.2V37V 3A TO-263-7 DC-DC Converters ROHS 30
  • 1 $4.5829
  • 10 $3.9240
  • 30 $3.6155
  • 100 $3.3023
  • 500 $3.1581
  • 1,000 $3.0930
$3.0930 / $4.5829 Buy Now
Win Source Electronics Conv DC-DC 8V to 40V Step Down Single-Out 1.23V to 37V 3A 8-Pin(7+Tab) TO-263 Tube / IC REG BUCK ADJ 3A TO263-7 29986
  • 24 $2.0920
  • 52 $1.9570
  • 80 $1.8890
  • 115 $1.7540
  • 149 $1.6870
  • 186 $1.6200
$1.6200 / $2.0920 Buy Now

Part Details for LM2676S-ADJ/NOPB

LM2676S-ADJ/NOPB CAD Models

  • Part Symbol

    Part Symbol

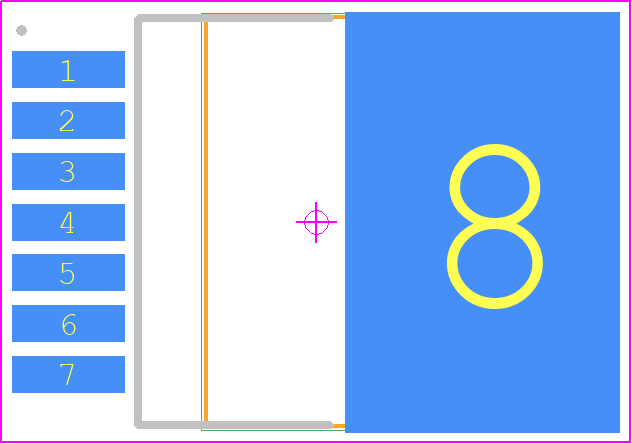

  • Footprint
