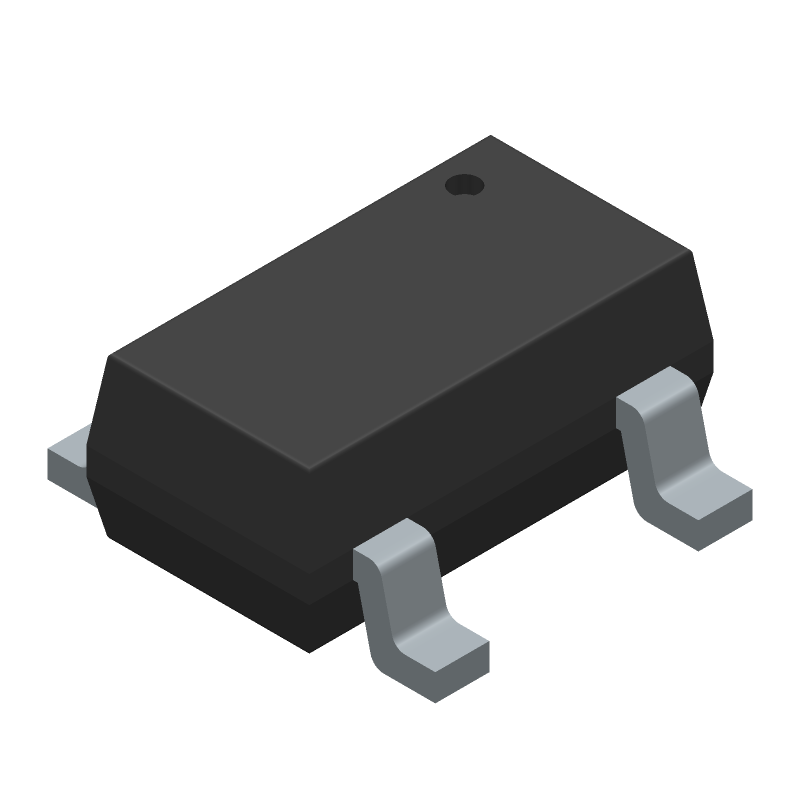

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM331AU-S5TR by 3peak Incorporated
Results Overview of LM331AU-S5TR by 3peak Incorporated
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM331AU-S5TR Information
LM331AU-S5TR by 3peak Incorporated is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM331AU-S5TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Win Source Electronics | Comparator Differential Open-Collector, Rail-to-Rail SOT-23-5 | 33589 |
|
$0.0500 / $0.0645 | Buy Now |
Part Details for LM331AU-S5TR
LM331AU-S5TR CAD Models
LM331AU-S5TR Part Data Attributes
|
|
LM331AU-S5TR
3peak Incorporated
Buy Now
Datasheet
|
Compare Parts:
LM331AU-S5TR
3peak Incorporated
General Purpose Comparator, Open-Drain, 1 Circuit, SOT23-5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | 3PEAK INC | |
| Package Description | 36V LOW POWER COMPARATOR | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | 3Peak Incorporated | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 0.01 µA | |
| Bias Current-Max (IIB) @25C | 0.001 µA | |
| Input Offset Voltage-Max | 6000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Response Time-Nom | 2000 ns | |
| Seated Height-Max | 1.25 mm | |
| Supply Current-Max | 0.3 mA | |
| Supply Voltage Limit-Max | 42 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 1.61 mm |
