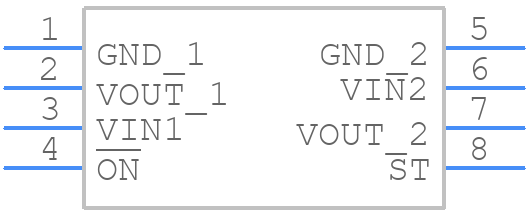

Part Symbol
-
Footprint
-

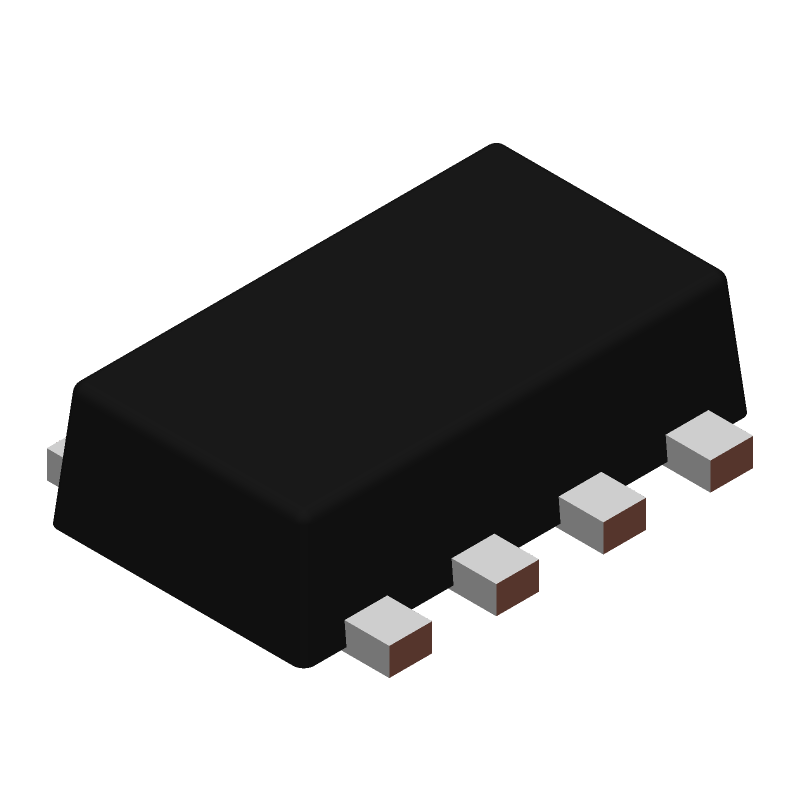

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM66200DRLR by Texas Instruments
Results Overview of LM66200DRLR by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LM66200DRLR Information
LM66200DRLR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM66200DRLR | Texas Instruments | 1.6-V to 5.5-V, 40-mΩ, 2.5-A, low-IQ, dual ideal diode 8-SOT-5X3 -40 to 125 |
Part Details for LM66200DRLR
LM66200DRLR CAD Models
LM66200DRLR Part Data Attributes
|
|
LM66200DRLR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM66200DRLR
Texas Instruments
1.6-V to 5.5-V, 40-mΩ, 2.5-A, low-IQ, dual ideal diode 8-SOT-5X3 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOT-5X3, 8 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 1.6 V | |
| JESD-30 Code | R-PDSO-F8 | |
| JESD-609 Code | e3 | |
| Length | 2.1 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSOF | |
| Package Equivalence Code | FL8,.04,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.6 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.6 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +0.042V | |
| Width | 1.2 mm |
LM66200DRLR Frequently Asked Questions (FAQ)
-
A good PCB layout for the LM66200DRLR involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
-
The choice of input and output capacitors for the LM66200DRLR depends on the specific application and the desired performance. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired ripple voltage and the output current requirement.
-
The LM66200DRLR is rated for operation over a temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
-
Yes, the LM66200DRLR is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for use in high-reliability industrial and medical applications.
-
To ensure proper soldering and assembly of the LM66200DRLR, follow the recommended soldering profile and assembly guidelines provided in the datasheet. Use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the PCB pads. Avoid applying excessive heat or pressure, which can damage the device.
