Sensors/Transducers / Temperature Sensors / LM75BIMM-3
Datasheets
LM75BIMM-3 by:

±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-VSSOP -55 to 125

Part Details for LM75BIMM-3 by Texas Instruments

Results Overview of LM75BIMM-3 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LM75BIMM-3 Information

LM75BIMM-3 by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for LM75BIMM-3

Part # Distributor Description Stock Price Buy
Vyrian Sensors & Transducers 1021
RFQ
Win Source Electronics SENSOR TEMPERATURE I2C 8VSSOP 12560
  • 50 $1.0110
  • 110 $0.9460
  • 165 $0.9130
  • 240 $0.8480
  • 310 $0.8160
  • 385 $0.7830
$0.7830 / $1.0110 Buy Now

Part Details for LM75BIMM-3

LM75BIMM-3 CAD Models

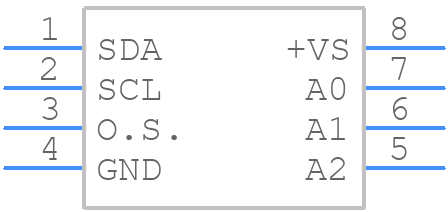

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

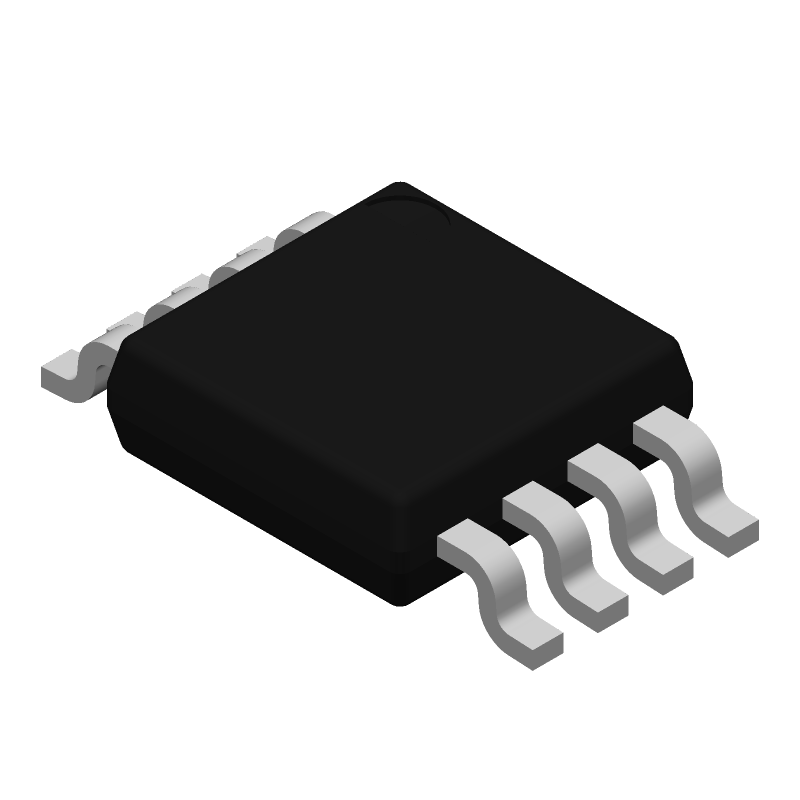

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM75BIMM-3 Part Data Attributes

Parametric Data
LM75BIMM-3 Texas Instruments
Buy Now Datasheet
Compare Parts:
LM75BIMM-3 Texas Instruments ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-VSSOP -55 to 125
Pbfree Code Yes
Rohs Code No
Part Life Cycle Code Not Recommended
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description MSOP-8
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Accuracy-Max (Cel) 2 Cel
Body Breadth 3 mm
Body Height 0.965 mm
Body Length or Diameter 3 mm
JESD-609 Code e0
Mounting Feature SURFACE MOUNT
Number of Bits 9
Number of Terminals 8
Operating Current-Max 0.5 mA
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Interface Type 2-WIRE INTERFACE
Package Body Material PLASTIC/EPOXY
Package Equivalence Code TSSOP8,.19
Package Shape/Style SQUARE
Sensors/Transducers Type TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Surface Mount YES
Terminal Finish Tin/Lead (Sn/Pb)
Termination Type SOLDER

Alternate Parts for LM75BIMM-3

This table gives cross-reference parts and alternative options found for LM75BIMM-3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM75BIMM-3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LM75BIMX-5/NOPB Texas Instruments $0.9324 ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-SOIC -55 to 125 LM75BIMM-3 vs LM75BIMX-5/NOPB
Part Number Manufacturer Composite Price Description Compare
LM75BIM-3 Texas Instruments Check for Price ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-SOIC -55 to 125 LM75BIMM-3 vs LM75BIM-3
LM75BIM-3/NOPB Texas Instruments $1.0182 ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-SOIC -55 to 125 LM75BIMM-3 vs LM75BIM-3/NOPB
LM75BIMMX-3/NOPB Texas Instruments $0.9324 ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-VSSOP -55 to 125 LM75BIMM-3 vs LM75BIMMX-3/NOPB
LM75BIMMX-5/NOPB Texas Instruments $0.8396 ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-VSSOP -55 to 125 LM75BIMM-3 vs LM75BIMMX-5/NOPB
LM75BIMM-3/NOPB Texas Instruments $0.8396 ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-VSSOP -55 to 125 LM75BIMM-3 vs LM75BIMM-3/NOPB
LM75BIM-5 Texas Instruments Check for Price ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-SOIC -55 to 125 LM75BIMM-3 vs LM75BIM-5
LM75BIMX-5 Texas Instruments Check for Price ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-SOIC -55 to 125 LM75BIMM-3 vs LM75BIMX-5
LM75BIMX-3/NOPB Texas Instruments $0.9748 ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-SOIC -55 to 125 LM75BIMM-3 vs LM75BIMX-3/NOPB
LM75BIMM-5/NOPB Texas Instruments $0.8396 ±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface 8-VSSOP -55 to 125 LM75BIMM-3 vs LM75BIMM-5/NOPB
LM75AIMX/NOPB Texas Instruments $0.9193 2C industry standard temperature sensor, I2C/SMBus interface 8-SOIC -55 to 125 LM75BIMM-3 vs LM75AIMX/NOPB

LM75BIMM-3 Related Parts

LM75BIMM-3 Frequently Asked Questions (FAQ)

  • The LM75BIMM-3 has an accuracy of ±2°C from -25°C to 100°C and ±3°C from -40°C to 125°C.

  • The address pins can be connected to VCC, GND, or left floating to set the device address. The address is set by the combination of the three pins, allowing up to 8 different addresses.

  • The conversion time of the LM75BIMM-3 is approximately 100 ms.

  • Yes, the LM75BIMM-3 supports multi-drop configuration, allowing multiple devices to share the same bus.

  • The power consumption of the LM75BIMM-3 is typically 1.5 mA (active) and 10 μA (standby).
