Power Circuits / Linear Regulator ICs / LT1963AES8#PBF
Datasheets
LT1963AES8#PBF by:

LT1963AES8#PBF

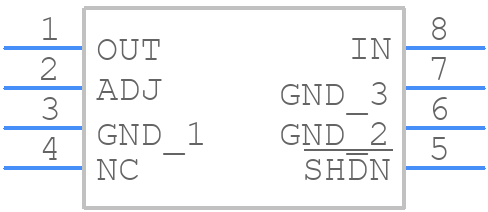

Part Details for LT1963AES8#PBF by Analog Devices Inc

Results Overview of LT1963AES8#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Energy and Power Systems Transportation and Logistics Renewable Energy Entertainment and Gaming Automotive

LT1963AES8#PBF Information

LT1963AES8#PBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT1963AES8#PBF

Part # Distributor Description Stock Price Buy
DISTI # 51AK8448
Newark Ldo, Adj, 1.5A, Nsoic-8, -40 To 125Deg C, Output Type:Adjustable, Input Voltage Min:2.1V, Input Voltage Max:20V, No. Of Outputs:-, Output Voltage Min:1.21V, Output Voltage Max:20V, Polarity:-, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices LT1963AES8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 66
  • 1 $6.2300
  • 10 $4.8700
  • 25 $4.8700
  • 50 $4.8600
  • 100 $4.1300
  • 300 $3.7700
  • 500 $3.5600
$3.5600 / $6.2300 Buy Now
Analog Devices Inc 1.5A, L N, Fast Tran Resp LDO Package Multiple: 100 218
  • 1 $8.0500
  • 10 $5.5180
  • 25 $4.8640
  • 100 $4.1322
  • 500 $3.5612
  • 1,000 $3.3818
  • 2,500 $3.2375
$3.2375 / $8.0500 Buy Now
DISTI # LT1963AES8PBF
TME IC: voltage regulator, LDO,adjustable, 1.447÷3.4V, 1.5A, SO8, SMD Min Qty: 1 0
  • 1 $5.5400
  • 3 $4.9900
  • 10 $4.4100
  • 25 $3.9600
  • 100 $3.7000
$3.7000 / $5.5400 RFQ
DISTI # LT1963AES8#PBF
Richardson RFPD VOLTAGE REGULATOR RoHS: Compliant Min Qty: 1 2
  • 1 $4.1300
  • 10 $4.0000
  • 25 $3.8900
  • 100 $3.6700
  • 500 $3.5700
  • 1,000 $3.4800
  • 5,000 $3.3500
$3.3500 / $4.1300 Buy Now
DISTI # SMC-LT1963AES8#PBF
Sensible Micro Corporation 1.5A, L N, Fast Tran Resp Ldo RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Tubes 19
  • 100 $4.7190
  • 500 $4.5980
  • 1,000 $4.3560
$4.3560 / $4.7190 RFQ
Chip-Germany GmbH   RoHS: Not Compliant 5
RFQ
CHIPMALL.COM LIMITED 63dB@120Hz 1.5A Adjustable 1.21V~20V Positive electrode 20V SOIC-8 Voltage Regulators - Linear, Low Drop Out LDO Regulators ROHS 121
  • 1 $3.6074
  • 10 $3.1282
  • 30 $2.8424
  • 100 $2.5536
  • 500 $2.4206
  • 1,000 $2.3616
$2.3616 / $3.6074 Buy Now

Part Details for LT1963AES8#PBF

LT1963AES8#PBF Part Data Attributes

Parametric Data
LT1963AES8#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT1963AES8#PBF Analog Devices Inc LT1963AES8#PBF
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Pin Count 8
Manufacturer Package Code 05-08-1610 (S8)
Reach Compliance Code compliant
Samacsys Manufacturer Analog Devices
Adjustability ADJUSTABLE
Dropout Voltage1-Max 0.55 V
Dropout Voltage1-Nom 0.34 V
Input-Output Voltage Differential-Max 18.79 V
Input-Output Voltage Differential-Min 1 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9025 mm
Line Regulation-Max (%/V) 0.023
Load Regulation-Max(%) 1.24%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 1.5 A
Output Voltage1-Max 20 V
Output Voltage1-Min 1.21 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.752 mm
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm

Alternate Parts for LT1963AES8#PBF

This table gives cross-reference parts and alternative options found for LT1963AES8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT1963AES8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LT1963AES8#TRMPBF Analog Devices Inc Check for Price Adjustable Positive LDO Regulator LT1963AES8#PBF vs LT1963AES8#TRMPBF
LT1963AES8#TRPBF Analog Devices Inc $4.7097 LT1963AES8#TRPBF LT1963AES8#PBF vs LT1963AES8#TRPBF
LT1963AES8 Linear Technology Check for Price LT1963A Series - 1.5A, Low Noise, Fast Transient Response LDO Regulators; Package: SO; Pins: 8; Temperature Range: -40°C to 85°C LT1963AES8#PBF vs LT1963AES8
LT1963AES8#TR Linear Technology Check for Price LT1963A Series - 1.5A, Low Noise, Fast Transient Response LDO Regulators; Package: SO; Pins: 8; Temperature Range: -40°C to 85°C LT1963AES8#PBF vs LT1963AES8#TR

LT1963AES8#PBF Related Parts

LT1963AES8#PBF Frequently Asked Questions (FAQ)

  • A good PCB layout for the LT1963AES8#PBF should include a solid ground plane, a separate power plane for the input voltage, and a thermal relief pattern on the exposed pad to ensure good heat dissipation. A 4-layer PCB with a thermal via under the IC is also recommended.

  • To ensure stability in the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output capacitor is placed close to the output pin and the input capacitor is placed close to the input pin.

  • The maximum input voltage that can be applied to the LT1963AES8#PBF is 15V. Exceeding this voltage may cause damage to the IC.

  • The LT1963AES8#PBF has a built-in overcurrent protection feature that limits the output current to 2.5A. However, it's still recommended to add external overcurrent protection, such as a fuse or a current-sensing resistor, to prevent damage to the IC and other components in the circuit.

  • The recommended input capacitor value is 10uF to 22uF, and the recommended type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor.
