Multi-Sensor High Accuracy Digital Temperature Measurement System

Part Details for LTC2983HLX#PBF by Analog Devices Inc

Results Overview of LTC2983HLX#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

LTC2983HLX#PBF Information

LTC2983HLX#PBF by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for LTC2983HLX#PBF

Part # Distributor Description Stock Price Buy
DISTI # 50AK2747
Newark Temp Sensor, -265 To 1820Deg C, Lqfp-48, Sensor Output Type:Digital, Accuracy:± 0.1°C, Sensor Case/Package:Lqfp, No. Of Pins:48Pins, Supply Voltage Min:2.85V, Supply Voltage Max:5.25V, No. Of Channels:20Channels, Resolution:24 Bitsrohs Compliant: Yes |Analog Devices LTC2983HLX#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 1072
  • 1 $56.7800
  • 5 $50.4600
  • 10 $44.1500
  • 25 $40.9200
  • 50 $39.4300
  • 100 $37.9400
$37.9400 / $56.7800 Buy Now
Analog Devices Inc Multi-Sensor Hi Accuracy Dig T Package Multiple: 250 275
  • 1 $56.7800
  • 10 $44.1470
  • 25 $40.9192
  • 1,000 $30.3500
$30.3500 / $56.7800 Buy Now
DISTI # LTC2983HLX#PBF
Richardson RFPD TEMPERATURE SENSORS RoHS: Compliant Min Qty: 250 0
  • 250 $41.2800
  • 500 $40.2100
  • 1,000 $39.6900
$39.6900 / $41.2800 Buy Now
Win Source Electronics Temp Sensor Digital Serial (2-Wire, 3-Wire, 4-Wire, SPI) Automotive 48-Pin LQFP Tray 1550
  • 1 $50.2954
  • 3 $47.0506
  • 4 $45.4282
  • 5 $42.1833
  • 7 $40.5609
  • 8 $38.9384
$38.9384 / $50.2954 Buy Now

Part Details for LTC2983HLX#PBF

LTC2983HLX#PBF CAD Models

  • Part Symbol

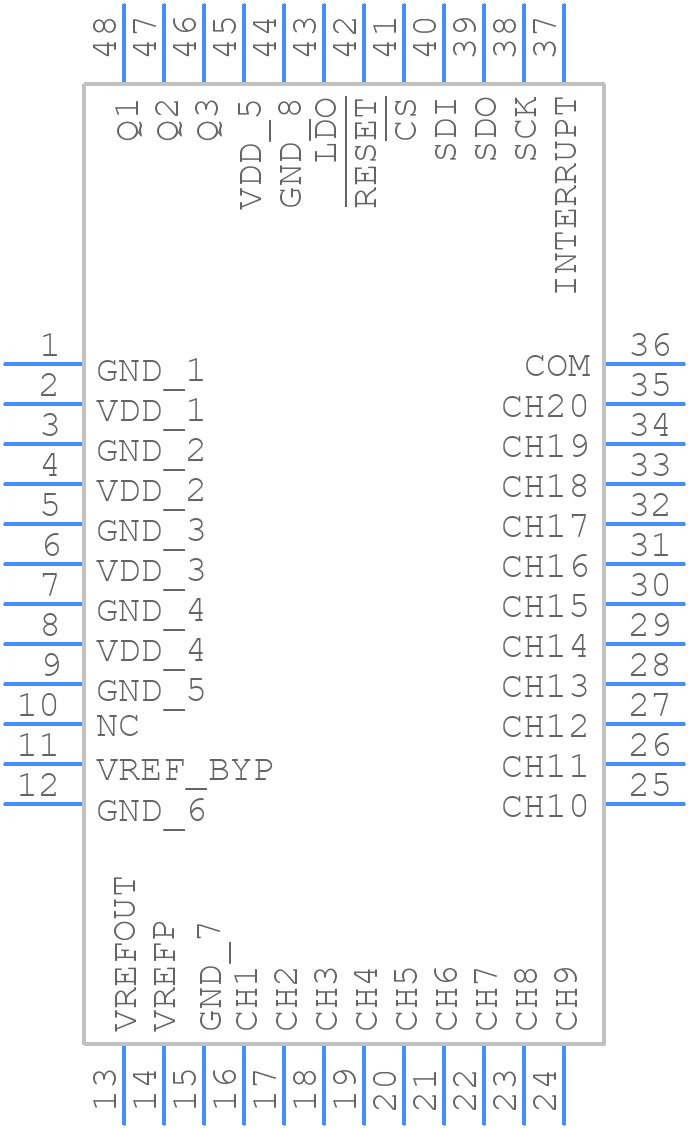

    Part Symbol
