Memory / EEPROMs / M24C32-RMN6TP
Datasheets
M24C32-RMN6TP by: STMicroelectronics

32 Kbit serial I<sup>2</sup>C bus EEPROM

Part Details for M24C32-RMN6TP by STMicroelectronics

Results Overview of M24C32-RMN6TP by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

M24C32-RMN6TP Information

M24C32-RMN6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for M24C32-RMN6TP

Part # Distributor Description Stock Price Buy
DISTI # 51AC9289
Newark Eeprom, 32Kbit, -40 To 85Deg C, Memory Configuration:4K X 8Bit, Interfaces:I2C, Clock Frequency Max:1Mhz, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Supply Voltage Min:1.8V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mount Rohs Compliant: Yes |Stmicroelectronics M24C32-RMN6TP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 8179
  • 1 $0.1330
  • 10 $0.1330
  • 25 $0.1330
  • 50 $0.1330
  • 100 $0.1330
  • 250 $0.1330
  • 500 $0.1330
  • 1,000 $0.1330
$0.1330 Buy Now
DISTI # M24C32-RMN6TP
Avnet Americas EEPROM, 32 Kbit, 4K x 8bit, I2C, 1 MHz, SOIC, 8 Pins - Tape and Reel (Alt: M24C32-RMN6TP) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Container: Reel 5704
  • 2,500 $0.0743
  • 5,000 $0.0738
  • 10,000 $0.0725
  • 15,000 $0.0712
  • 20,000 $0.0699
$0.0699 / $0.0743 Buy Now
DISTI # M24C32-RMN6TP
Avnet Americas EEPROM, 32 Kbit, 4K x 8bit, I2C, 1 MHz, SOIC, 8 Pins - Tape and Reel (Alt: M24C32-RMN6TP) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Container: Reel 5704
  • 2,500 $0.0743
  • 5,000 $0.0738
  • 10,000 $0.0725
  • 15,000 $0.0712
  • 20,000 $0.0699
$0.0699 / $0.0743 Buy Now
DISTI # 51AC9289
Avnet Americas EEPROM, 32 Kbit, 4K x 8bit, I2C, 1 MHz, SOIC, 8 Pins - Product that comes on tape, but is not reeled (Alt: 51AC9289) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 3 Days Container: Ammo Pack 3160 Partner Stock
  • 1 $0.2200
  • 10 $0.1870
  • 25 $0.1830
  • 50 $0.1780
  • 100 $0.1740
$0.1740 / $0.2200 Buy Now
DISTI # 51AC9289
Avnet Americas EEPROM, 32 Kbit, 4K x 8bit, I2C, 1 MHz, SOIC, 8 Pins - Product that comes on tape, but is not reeled (Alt: 51AC9289) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 3 Days Container: Ammo Pack 3160 Partner Stock
  • 1 $0.2200
  • 10 $0.1870
  • 25 $0.1830
  • 50 $0.1780
  • 100 $0.1740
$0.1740 / $0.2200 Buy Now
STMicroelectronics 32 Kbit serial I2C bus EEPROM RoHS: Compliant Min Qty: 1 5686
  • 1 $0.2300
  • 10 $0.1900
  • 100 $0.1800
  • 500 $0.1800
$0.1800 / $0.2300 Buy Now
Bristol Electronics   1985
RFQ
Bristol Electronics   Min Qty: 8 80
  • 8 $0.6750
  • 24 $0.3375
$0.3375 / $0.6750 Buy Now
Future Electronics M24C32 Series 32 Kb (4 K x 8) 2.5 V SMT Serial I�C Bus EEPROM - SOIC-8 Min Qty: 2500 Package Multiple: 2500 20000
null
  • 2,500 $0.0928
  • 5,000 $0.0913
  • 10,000 $0.0897
  • 12,500 $0.0893
  • 37,500 $0.0863
$0.0863 / $0.0928 Buy Now
Ameya Holding Limited M24C32 Series 32 Kb (4 K x 8) 2.5 V SMT Serial I²C Bus EEPROM - SOIC-8 2860
Buy Now RFQ
DISTI # SMC-M24C32-RMN6TP
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 5000
RFQ
DISTI # M24C32-RMN6TP
Avnet Silica EEPROM 32 Kbit 4K x 8bit I2C 1 MHz SOIC 8 Pins (Alt: M24C32-RMN6TP) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 7 Weeks, 0 Days Silica - 20000
Buy Now
DISTI # M24C32-RMN6TP
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 11970
  • 5 $0.2380
  • 50 $0.2160
  • 100 $0.2120
  • 500 $0.2110
  • 1,000 $0.2050
  • 5,000 $0.2040
  • 20,000 $0.1810
  • 80,000 $0.1800
  • 160,000 $0.1790
$0.1790 / $0.2380 Buy Now
DISTI # M24C32-RMN6TP
EBV Elektronik EEPROM 32 Kbit 4K x 8bit I2C 1 MHz SOIC 8 Pins (Alt: M24C32-RMN6TP) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 7 Weeks, 0 Days EBV - 767500
Buy Now
LCSC 400kHz1MHz I2C SOIC-8 EEPROM ROHS 1740
  • 5 $0.0924
  • 50 $0.0739
  • 150 $0.0646
  • 500 $0.0576
  • 2,500 $0.0470
  • 5,000 $0.0442
$0.0442 / $0.0924 Buy Now
Vyrian Memory ICs 10097
RFQ
Win Source Electronics IC EEPROM 32KBIT 400KHZ 8SO 288830
  • 970 $0.0774
  • 2,075 $0.0725
  • 3,215 $0.0701
  • 4,620 $0.0650
  • 6,000 $0.0626
  • 7,500 $0.0600
$0.0600 / $0.0774 Buy Now

Part Details for M24C32-RMN6TP

M24C32-RMN6TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

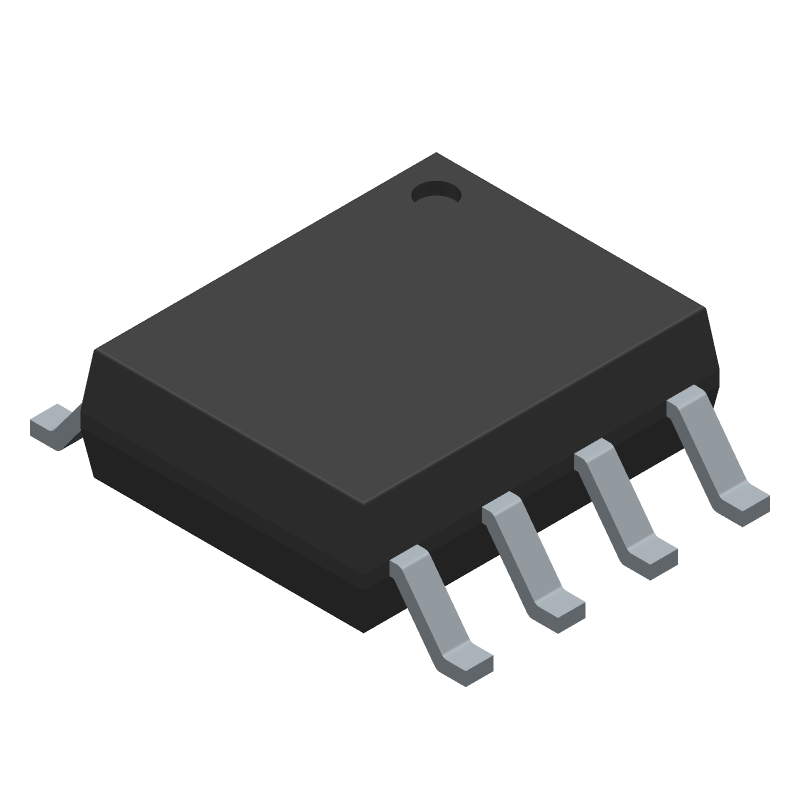

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

M24C32-RMN6TP Part Data Attributes

Parametric Data
M24C32-RMN6TP STMicroelectronics
Buy Now Datasheet
Compare Parts:
M24C32-RMN6TP STMicroelectronics 32 Kbit serial I<sup>2</sup>C bus EEPROM
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description SOP-8
Pin Count 8
Reach Compliance Code compliant
Factory Lead Time 17 Weeks, 3 Days
Samacsys Manufacturer STMicroelectronics
Clock Frequency-Max (fCLK) 0.4 MHz
Data Retention Time-Min 40
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Memory Density 32768 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 4096 words
Number of Words Code 4000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 4KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 1.75 mm
Serial Bus Type I2C
Standby Current-Max 0.000001 A
Supply Current-Max 0.005 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.8 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3.9 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

M24C32-RMN6TP Related Parts

M24C32-RMN6TP Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the M24C32-RMN6TP is 1 MHz.

  • Page write operations in the M24C32-RMN6TP require a page write command followed by the data to be written. The device will automatically increment the address for each byte written.

  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied to VCC, the device is in write-protect mode, and any write operations will be ignored.

  • A software reset can be performed by sending a reset command (0x99) to the device. This will reset the device and return it to its default state.

  • The M24C32-RMN6TP has an endurance of 100,000 cycles per page, with a minimum of 1,000,000 cycles for the entire device.
