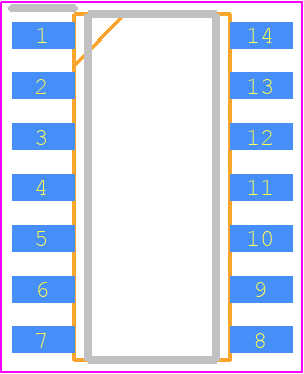

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74HC132ADR2G by onsemi
Results Overview of MC74HC132ADR2G by onsemi
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Financial Technology (Fintech)
Healthcare
MC74HC132ADR2G Information
MC74HC132ADR2G by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74HC132ADR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84K8775
|
Newark | Quad Nand Gate, Schmitt Trigger, Soic-14, Logic Function:Nand Gate, No. Of Elements:Quad, No. Of Inputs:2Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:74Hc132, Logic Ic Family:74Hc, Supply Voltage Min:2V Rohs Compliant: Yes |Onsemi MC74HC132ADR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1158 |
|
$0.1460 / $0.1590 | Buy Now |
|
DISTI #
81Y6648
|
Newark | Nand Schmitt Trigger, Quad, Soic-14, Logic Family/Base Number:74Hc132, Logic Type:Nand Schmitt Trigger, Output Current:5.2Ma, No. Of Inputs:2, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Case Style:Soic, No. Of Pins:14Pins, rohs Compliant: Yes |Onsemi MC74HC132ADR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 105 |
|
$0.1960 / $0.3400 | Buy Now |
|
DISTI #
45J1295
|
Newark | Quad Nand Gate, Schmitt Trigger, Soic-14, Full Reel, No. Of Inputs:2Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:-, Logic Ic Family:74Hc, Supply Voltage Min:2V, Supply Voltage Max:6V, Output Current:5.2Ma, Msl:- Rohs Compliant: Yes |Onsemi MC74HC132ADR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1220 / $0.1930 | Buy Now |
|
DISTI #
MC74HC132ADR2G
|
Avnet Americas | NAND Gate, Quad, 2 Input, 14 Pins, NSOIC, MC74HC132A - Tape and Reel (Alt: MC74HC132ADR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 7 Weeks, 0 Days Container: Reel | 10000 |
|
$0.1016 / $0.1112 | Buy Now |
|
DISTI #
84K8775
|
Avnet Americas | NAND Gate, Quad, 2 Input, 14 Pins, NSOIC, MC74HC132A - Product that comes on tape, but is not reeled (Alt: 84K8775) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 1188 Partner Stock |
|
$0.3080 / $0.7630 | Buy Now |
|
DISTI #
70466358
|
RS | MC74HC132ADR2G, Quad 2-Input NAND Schmitt Trigger Logic Gate,2 to 6V,14-Pin SOIC Min Qty: 50 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2210 | RFQ |
|
|
Bristol Electronics | 2245 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 7 | 1708 |
|
$0.1500 / $0.7500 | Buy Now |
|
|
Bristol Electronics | 1322 |
|
RFQ | ||
|
|
Bristol Electronics | 500 |
|
RFQ |
Part Details for MC74HC132ADR2G
MC74HC132ADR2G CAD Models
MC74HC132ADR2G Part Data Attributes
|
|
MC74HC132ADR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74HC132ADR2G
onsemi
Quad 2-Input NAND Gate with Schmitt Trigger Input, SOIC-14 NB, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-14 NB | |
| Pin Count | 14 | |
| Manufacturer Package Code | 751A-03 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NAND GATE | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 75 mA | |
| Propagation Delay (tpd) | 190 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MC74HC132ADR2G
This table gives cross-reference parts and alternative options found for MC74HC132ADR2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74HC132ADR2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD74HC132M | General Electric Solid State | Check for Price | NAND Gate, CMOS, PDSO14, | MC74HC132ADR2G vs CD74HC132M |
| 74HC132D-T | NXP Semiconductors | Check for Price | IC HC/UH SERIES, QUAD 2-INPUT NAND GATE, PDSO14, SOT-108-1, SO-14, Gate | MC74HC132ADR2G vs 74HC132D-T |
| MC74HC132ADR2 | Motorola Mobility LLC | Check for Price | HC/UH SERIES, QUAD 2-INPUT NAND GATE, PDSO14, PLASTIC, SOIC-14 | MC74HC132ADR2G vs MC74HC132ADR2 |
| CD74HC132M96 | Texas Instruments | Check for Price | 4-ch, 2-input, 2-V to 6-V 5.2 mA drive strength NAND gate with Schmitt-Trigger inputs 14-SOIC -55 to 125 | MC74HC132ADR2G vs CD74HC132M96 |
| CD74HC132M | Thomson Consumer Electronics | Check for Price | NAND Gate, CMOS, PDSO14 | MC74HC132ADR2G vs CD74HC132M |
| SN74HC132D3 | Texas Instruments | Check for Price | IC,LOGIC GATE,QUAD 2-INPUT NAND,HC-CMOS,SOP,14PIN,PLASTIC | MC74HC132ADR2G vs SN74HC132D3 |
| CD74HC132M96G4 | Texas Instruments | Check for Price | High Speed CMOS Logic Quad 2-Input Schmitt-Triggered NAND Gates 14-SOIC -55 to 125 | MC74HC132ADR2G vs CD74HC132M96G4 |
| MC74HC132AD | Motorola Mobility LLC | Check for Price | HC/UH SERIES, QUAD 2-INPUT NAND GATE, PDSO14, PLASTIC, SOIC-14 | MC74HC132ADR2G vs MC74HC132AD |
| MC74HC132ADR2 | onsemi | Check for Price | HC/UH SERIES, QUAD 2-INPUT NAND GATE, PDSO14, SOIC-14 | MC74HC132ADR2G vs MC74HC132ADR2 |
| GD54HC132D | Goldstar Electron Co Ltd | Check for Price | NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, | MC74HC132ADR2G vs GD54HC132D |
MC74HC132ADR2G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC74HC132ADR2G is 2.0V to 6.0V.
-
To ensure proper operation, the MC74HC132ADR2G requires a stable power supply with a decoupling capacitor (e.g., 0.1uF) connected between VCC and GND, as close to the device as possible.
-
The maximum frequency of operation for the MC74HC132ADR2G is typically 100 MHz, but this can vary depending on the specific application and operating conditions.
-
Unused inputs on the MC74HC132ADR2G should be tied to a fixed logic level (either VCC or GND) to prevent floating inputs and ensure proper device operation.
-
The MC74HC132ADR2G is rated for operation up to 125°C, but the device's performance and reliability may degrade at higher temperatures. Consult the datasheet for specific temperature-related specifications.
