MCP6G01T-E/SN by: Microchip Technology Inc

INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8

Part Details for MCP6G01T-E/SN by Microchip Technology Inc

Results Overview of MCP6G01T-E/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MCP6G01T-E/SN Information

MCP6G01T-E/SN by Microchip Technology Inc is an Instrumentation Amplifier.
Instrumentation Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP6G01T-E/SN

Part # Distributor Description Stock Price Buy
DISTI # 31K2983
Newark Ic, voltage Controlled Gain Amplifier, single, sop,8Pin, plastic Rohs Compliant: Yes |Microchip MCP6G01T-E/SN RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $0.4990
$0.4990 Buy Now
DISTI # MCP6G01T-E/SN
Avnet Americas SP Amp Selectable Gain Amplifier Single R-R I/O 5.5V 8-Pin SOIC N T/R - Tape and Reel (Alt: MCP6G01T-E/SN) RoHS: Not Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 3,300 $0.5162
  • 6,600 $0.5080
  • 13,200 $0.4998
  • 19,800 $0.4916
  • 26,400 $0.4834
$0.4834 / $0.5162 Buy Now
DISTI # MCP6G01T-E/SN
Microchip Technology Inc Single 1.8V, 1 MHz Gain Block, E temp, SOIC, Projected EOL: 2034-09-21 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 0

Alternates Available

COO: Thailand
  • 1 $0.6200
  • 25 $0.5300
  • 100 $0.4700
  • 1,000 $0.4600
$0.4600 / $0.6200 Buy Now
DISTI # 70046190
RS Amplifier, Single 1.8V, 1 MHz Gain Block, E Temperature | Microchip Technology Inc. MCP6G01T-E/SN RoHS: Not Compliant Min Qty: 3300 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Container: Bulk 0
  • 3,300 $0.4950
  • 33,000 $0.4700
  • 165,000 $0.4460
  • 330,000 $0.4210
$0.4210 / $0.4950 RFQ
NAC Single 1.8V, 1 MHz Gain Block, E temp - Package: 8 SOIC 3.90mm(.150in) T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 0
  • 1 $0.6300
  • 100 $0.5700
  • 500 $0.5300
  • 1,000 $0.5100
$0.5100 / $0.6300 Buy Now
DISTI # MCP6G01T-E/SN
Avnet Silica SP Amp Selectable Gain Amplifier Single RR IO 55V 8Pin SOIC N TR (Alt: MCP6G01T-E/SN) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Vyrian Amplifiers 1447
RFQ

Part Details for MCP6G01T-E/SN

MCP6G01T-E/SN CAD Models

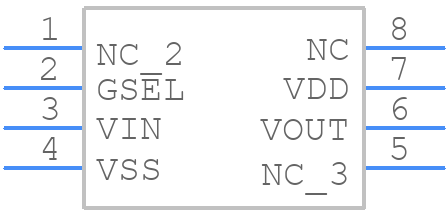

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP6G01T-E/SN Part Data Attributes

Parametric Data
MCP6G01T-E/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP6G01T-E/SN Microchip Technology Inc INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description 0.150 INCH, PLASTIC, MS-012, SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Amplifier Type INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB) 0.005 µA
Bandwidth (3dB)-Nom 0.9 MHz
Input Offset Voltage-Max 4500 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Moisture Sensitivity Level 1
Non-linearity-Max 0.05%
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Screening Level TS 16949
Seated Height-Max 1.75 mm
Slew Rate-Nom 4.5 V/us
Supply Current-Max 0.17 mA
Supply Voltage Limit-Max 7 V
Surface Mount YES
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Gain-Max 50
Voltage Gain-Min 1
Voltage Gain-Nom 10
Width 3.9116 mm

Alternate Parts for MCP6G01T-E/SN

This table gives cross-reference parts and alternative options found for MCP6G01T-E/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6G01T-E/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP6G03T-E/ST Microchip Technology Inc Check for Price QUAD INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO14, 4.40 MM, PLASTIC, MO-153, TSSOP-14 MCP6G01T-E/SN vs MCP6G03T-E/ST
MCP6G01-E/MS Microchip Technology Inc $0.5498 INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, PLASTIC, MSOP-8 MCP6G01T-E/SN vs MCP6G01-E/MS
MCP6G03T-E/SN Microchip Technology Inc $0.5050 INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8 MCP6G01T-E/SN vs MCP6G03T-E/SN
MCP6G03T-E/OT Microchip Technology Inc Check for Price INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO5, PLASTIC, SOT-23, 5 PIN MCP6G01T-E/SN vs MCP6G03T-E/OT
MCP6G01RT-E/SN Microchip Technology Inc Check for Price INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8 MCP6G01T-E/SN vs MCP6G01RT-E/SN
MCP6G01T-E/MS Microchip Technology Inc $0.5050 INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, PLASTIC, MSOP-8 MCP6G01T-E/SN vs MCP6G01T-E/MS
MCP6G01UT-E/SN Microchip Technology Inc Check for Price INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8 MCP6G01T-E/SN vs MCP6G01UT-E/SN
MCP6G01RT-E/MS Microchip Technology Inc Check for Price INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, PLASTIC, MSOP-8 MCP6G01T-E/SN vs MCP6G01RT-E/MS
MCP6G01UT-E/MS Microchip Technology Inc Check for Price INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO8, PLASTIC, MSOP-8 MCP6G01T-E/SN vs MCP6G01UT-E/MS
MCP6G03-E/SL Microchip Technology Inc Check for Price QUAD INSTRUMENTATION AMPLIFIER, 4500 uV OFFSET-MAX, 0.9 MHz BAND WIDTH, PDSO14, 0.150 INCH, PLASTIC, MS-012, SOIC-14 MCP6G01T-E/SN vs MCP6G03-E/SL
